610 (1690064) - Allis-Chalmers Lawn Tractor, 10hp Power Take Off Group Parts Diagram

Lawn Tractor, 10hp

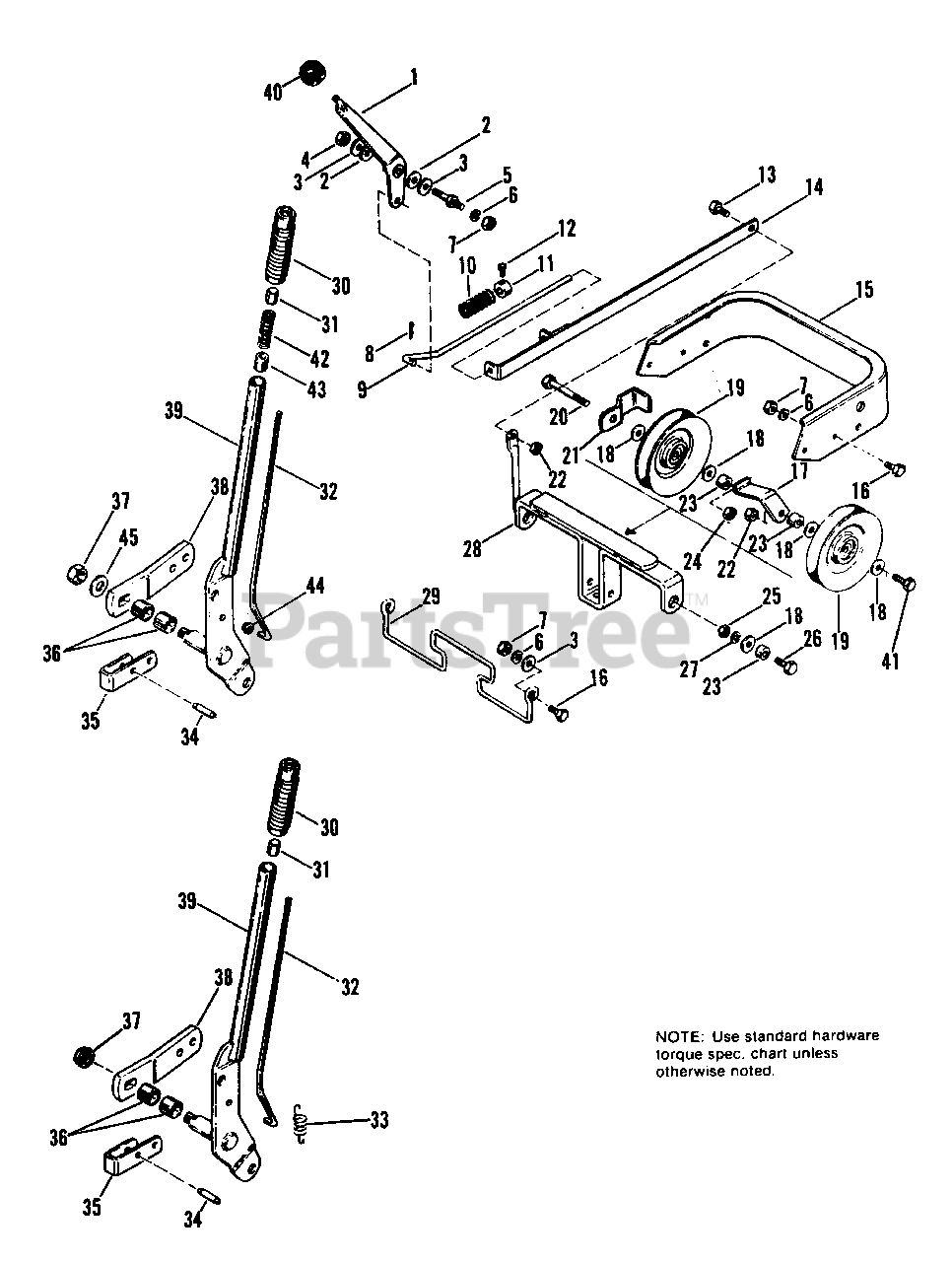

Power Take Off Group Parts Diagram

  • Title

1

Simplicity 170103

LEVER ASSY.

$

$

Not available

2

Simplicity 2159134

WASHER, Special

$

$

Not available

3

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

4

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

5

Simplicity 170108

STUD

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

9

Simplicity 176354

ROD, Clutch, P.T.O.

$

$

Not available

10

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 1729276SM

COLLAR, Set

$23.99

$

Usually ships in 2-12 days

0

12

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

13

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

14

Simplicity 106399

GUIDE ASSY., Idler

$

$

Not available

15

Simplicity 1650755

BUMPER, Front (1690019, 1690020 & 1690106)

$

$

Not available

15

Simplicity 156137

BUMPER, Front

$

$

Not available

16

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

17

Simplicity 1651329

STOP (1690019, 1690020 & 1690106 Only)

$

$

Not available

17

Simplicity 178430

STOP

$

$

Not available

18

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 2101096SM

PULLEY, Idler

$59.99

$

Usually ships in 2-12 days

0

20

Simplicity 2822606

CAPSCREW, Hex Hd., 3/8-24 x 1-3/4

$

$

Not available

21

Simplicity 2162115SM

STOP, Belt (1690019, 1690020 & 1690106 Only)
(Superseded to 2162115ASM)

$12.99

$

In Stock, only 1 left!

0

22

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

24

Simplicity 2830628

LOCKNUT, Hex, 3/8-24

$

$

Not available

25

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16 (Qty. 2 on 1690019, 1690020 & 1690106 Only)
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

26

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

27

Simplicity 1916965SM

LOCKWASHER, 3/8 (Qty. 2 on 1690019, 1690020, & 1690106 Only)
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

28

Simplicity 177569

CLEVIS ASSY., Pulley

$

$

Not available

29

Simplicity 2165043SM

STOP, Belt, P.T.O.

$

$

Not available

30

Simplicity 1713995SM

GRIP, Lift Lever (1690019, 1690020 & 1690106 0nly)

$12.99

$

Usually ships in 2-12 days

0

30

Simplicity 2156209

GRIP, Lift Lever
(Superseded to 1713995SM)

$12.99

$

Usually ships in 2-12 days

0

31

Simplicity 1650157SM

BUTTON, Thumb (1690019, 1690020 & 1690106)

$7.49

$

In Stock, only 1 left!

0

31

Simplicity 2154227SM

BUTTON, Thumb

$

$

Not available

32

Simplicity 1650147

ROD, Latch (1690019, 1690020 & 1690106 Only)

$

$

Not available

32

Simplicity 176452

LEVER, Lift

$

$

Not available

33

Simplicity 1650155SM

SPRING (1690019, 1690020 & 1690106 Only)

$7.49

$

Usually ships in 2-12 days

0

34

Simplicity 2818113

PIN, Roll, 3/8 x 1

$

$

Not available

35

Simplicity 154224

LATCH, Lift Lever

$

$

Not available

36

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

37

Simplicity 2830644

LOCKNUT, Flange, 1/2-13

$

$

Not available

38

Simplicity 176464

LINK, Lift Lever

$

$

Not available

39

Simplicity 1650151

LEVER ASSY., Lift (1690019, 1690020 & 1690106)

$

$

Not available

39

Simplicity 176204

LEVER ASSY., Lift

$

$

Not available

40

Simplicity 1729255SM

BALL, Knob

$12.99

$

In Stock, only 1 left!

0

41

Simplicity 927322

CASPCREW, Hex Hd., 3/8-24 x 2 (1690019, 1690020 & 1690106 Only)

$

$

Not available

42

Simplicity 2152006SM

SPRING (990904 Only)

$8.49

$

Usually ships in 2-12 days

0

43

Simplicity 154226

SPACER (990904 Only)

$

$

Not available

44

Simplicity 2170015

PUSHNUT (990904 Only)

$

$

Not available

45

Simplicity 2818430

WASHER, Plain (990904 Only)

$

$

Not available
