610 (1690064) - Allis-Chalmers Lawn Tractor, 10hp Seat & Seat Support Group Parts Diagram

Lawn Tractor, 10hp

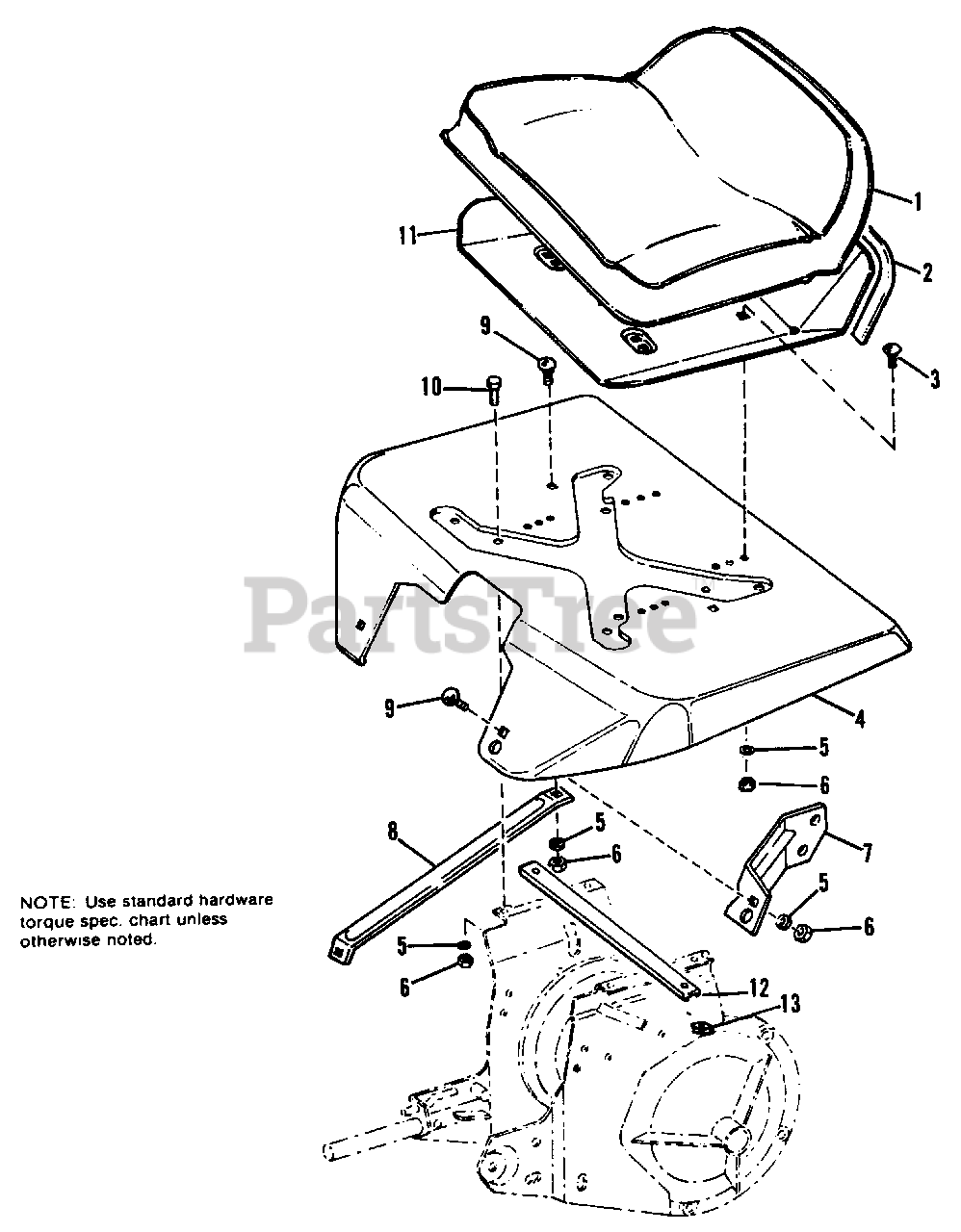

Seat & Seat Support Group Parts Diagram

  • Title

1

Simplicity 162094

PAD, Seat

$

$

Not available

1

Simplicity 1651879

SEAT ASSY. (990489)

$

$

Not available

2

Simplicity 159177

TAPE, Seat Pan

$

$

Not available

3

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

4

Simplicity 174691

SUPPORT, Seat

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 174480

BRACKET (990780, 990904 Only)

$

$

Not available

7

Simplicity 1651308

BRACKET

$

$

Not available

8

Simplicity 165070

BRACE (Qty. 2 on 990577)

$

$

Not available

9

Simplicity 923700

BOLT, Carriage, 5/16-18 x 1/2

$

$

Not available

10

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (990489 & 990904 Only)

$

$

Not available

11

Simplicity 165066

PANEL, Seat

$

$

Not available

12

Simplicity 1651317

SPACER (1690019, 1690020 Only)

$

$

Not available

13

Simplicity 2810292

NUT, Square, 5/16-18 (1690019, 1690020 Only)

$

$

Not available
