610 (190-610-100) - Cub Cadet 32" & 38" Grass Catcher Grass Catcher Parts Diagram

32" & 38" Grass Catcher

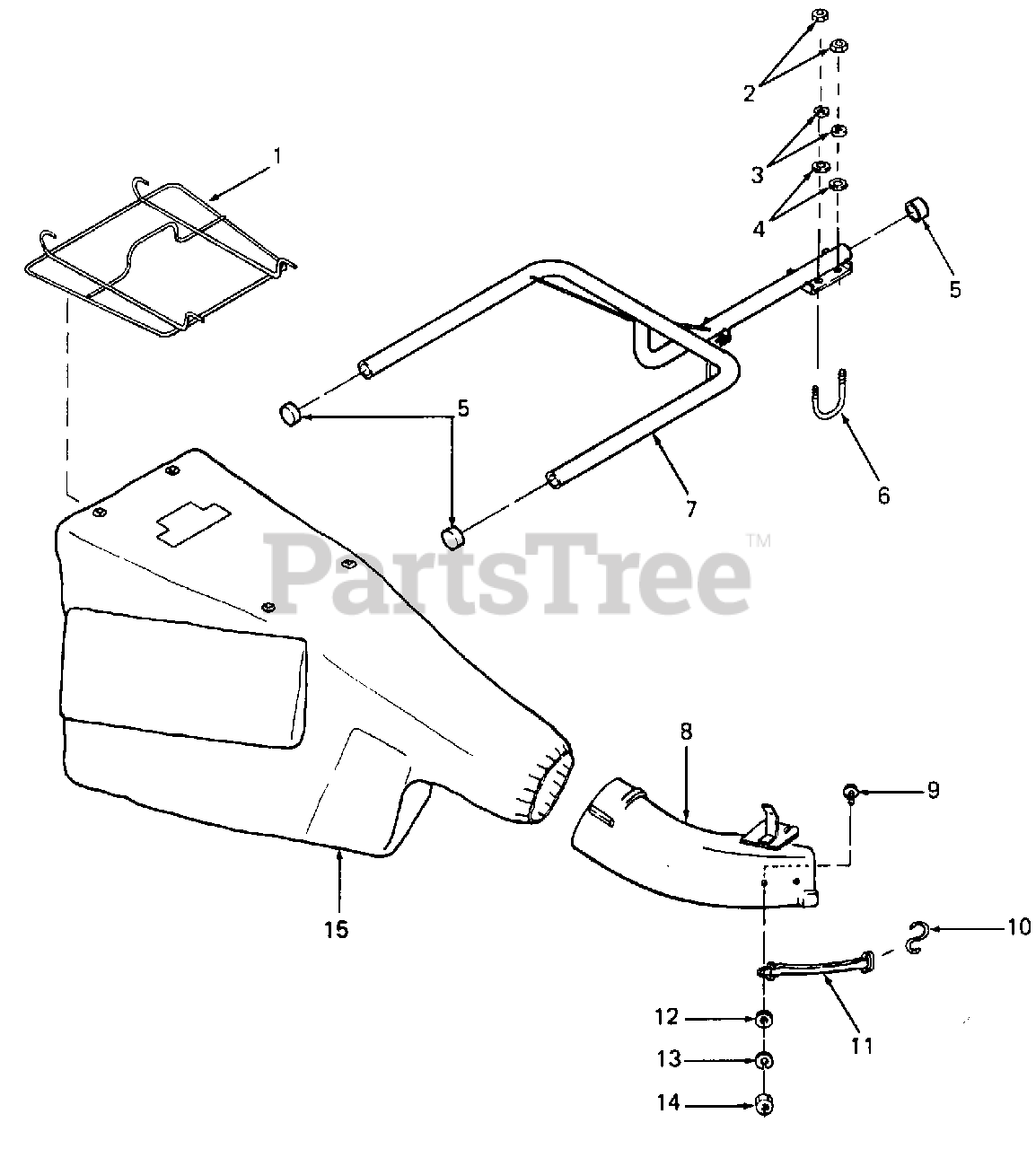

Grass Catcher Parts Diagram

  • Title

1

Cub Cadet TE-1000694

Wire Frame

$

$

Not available

2

Cub Cadet 712-0267

Nut, Hex Plain, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0119

Washer, Lock, 5/16 Dia
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-0159

Washer, Flat, 5/16 Dia

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet TE-1000249

Cap

$

$

Not available

6

Cub Cadet TE-1000704

"U" Bolt

$

$

Currently unavailable

7

Cub Cadet TE-1000686

Catcher Hanger

$

$

Not available

8

Cub Cadet TE-1000701

Chute, 38 & 32 Inch

$

$

Not available

Cub Cadet TE-1000702

Chute, 46 Inch

$

$

Not available

9

Cub Cadet 710-0255

Screw, Mach, 1/4-20 X 3/4
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet TE-1000690

"S" Hook

$

$

Currently unavailable

11

Cub Cadet 723-0383

Retainer Strap Assembly
(Superseded to 923-0383)

$14.99

$

In Stock, Qty 13

0

12

Cub Cadet 736-0342

Washer, Flat, 1/4 Dia

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

14

Cub Cadet 712-0287

Nut, Hex Plain, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet TE-1000698

Bag

$

$

Not available
