611 H (1690763) - Allis-Chalmers Lawn Tractor, 11hp Electrical Group - 1690759 S/N 3617 and Below Parts Diagram

Lawn Tractor, 11hp

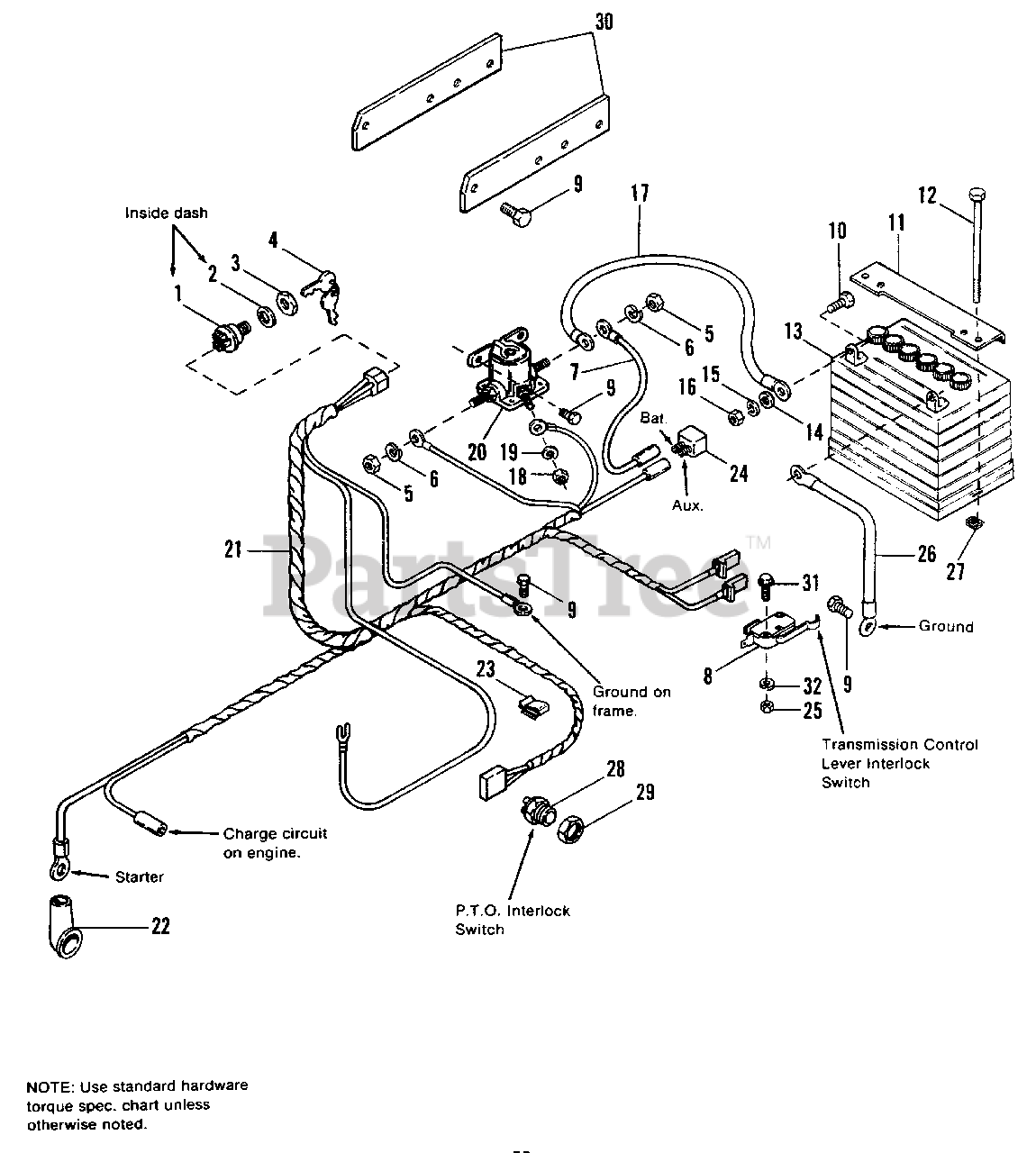

Electrical Group - 1690759 S/N 3617 and Below Parts Diagram

  • Title

1

Simplicity 2178280SM

SWITCH, Ignition (Incl. Ref. Nos. 1, 2, 3 & 4)
(Superseded to 421064MA)

$32.99

$

In Stock, only 1 left!

0

2

Simplicity 2818906

LOCKWASHER, Internal Tooth, 5/8

$

$

Not available

3

Simplicity 2122234SM

NUT, 5/8-32
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1717163SM

KEYS, Set of 2

$8.99

$

In Stock, Qty 14

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, only 1 left!

0

8

Simplicity 1686951SM

SWITCH, Interlock

$

$

Not available

9

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

10

Simplicity 2823341SM

CAPSCREW, Hex, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

11

Simplicity 1718596

CLAMP, Battery
(Superseded to 1718596ASM)

$36.99

$

Usually ships in 2-12 days

0

12

Simplicity 2836291

CAPSCREW, Hex, 1/4-20 x 7-1/2

$

$

Not available

13

Simplicity 1685215SM

BATTERY SERVICE KIT, 39 Amp.

$

$

Not available

14

Simplicity 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

15

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

16

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

17

Simplicity 1707056SM

CABLE

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 2817415

NUT, Hex, #10-32

$

$

Not available

19

Simplicity 2822711

LOCKWASHER, Ext. #10

$

$

Not available

20

Simplicity 2122216SM

SOLENOID

$

$

Not available

21

Simplicity 1670851

HARNESS, Wiring

$

$

Not available

22

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, only 3 left!

0

23

Simplicity 2165073SM

CLIP, Speed

$2.99

$

Usually ships in 2-12 days

0

24

Simplicity 2172163

CIRCUIT BREAKER

$

$

Not available

25

Simplicity 2831003

NUT, Hex, #5-40

$

$

Not available

26

Simplicity 2122213

CABLE

$

$

Not available

27

Simplicity 2826022

NUT, Retainer, 1/4-20

$

$

Not available

28

Simplicity 1654634SM

SWITCH, Interlock

$46.99

$

Usually ships in 2-12 days

0

29

Simplicity 1930647

LOCKNUT, 9/16-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 1670674

BRACE, Shift Panel

$

$

Not available

31

Simplicity 2835031

SCREW, Rd. Hd., Phil. #5-40 x 3/4

$

$

Not available

32

Simplicity 2830947

LOCKWASHER, #5

$

$

Not available
