611 LT (1690345) - AGCO Lawn Tractor, 11hp Transaxle Model No. 657-A Parts Diagram

Lawn Tractor, 11hp

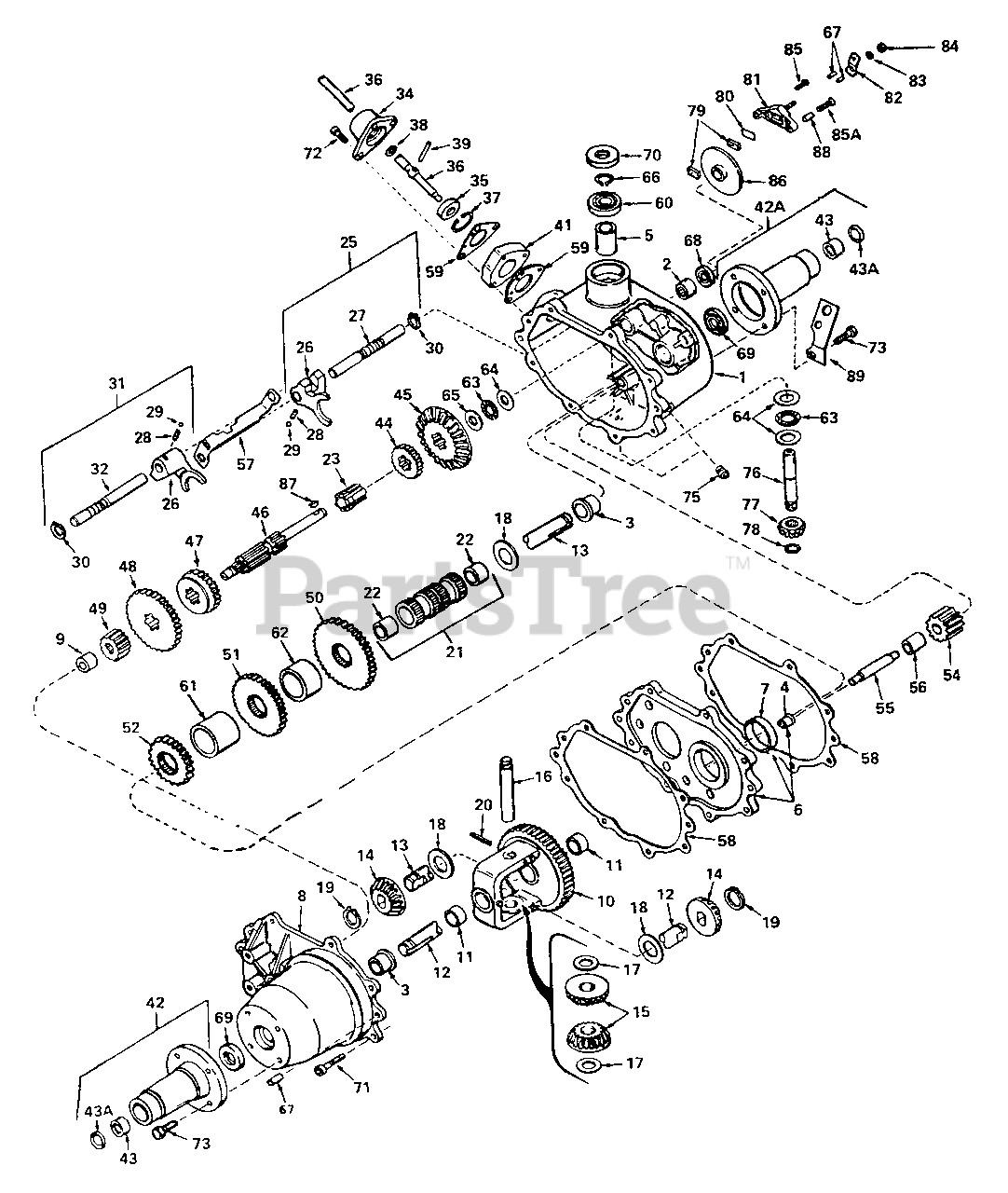

Transaxle Model No. 657-A Parts Diagram

  • Title

1

Simplicity 770063

CASE ASSY, Transaxle (Incl. Nos. 2, 3 & 5)

$

$

Not available

2

Simplicity 780086

BEARING, Needle

$

$

Not available

3

Simplicity 780059

BEARING, Bronze

$

$

Not available

4

Simplicity 780060

BEARING, Bronze

$

$

Not available

5

Simplicity 780061

BEARING, Bronze

$

$

Not available

6

Simplicity 786033

PLATE ASSY, Center (Incl. Nos. 4 & 7)

$

$

Not available

7

Simplicity 780062

BEARING, Bronze

$

$

Not available

8

Simplicity 772042

COVER ASSY, Transaxle (Incl. Nos. 3 & 9)

$25.99

$

Usually ships in 2-12 days

0

9

Simplicity 780063

BEARING, Needle

$

$

Not available

10

Simplicity 778053A

GEAR ASSY, Differential (Incl. No. 11)

$

$

Not available

11

Simplicity 780064

BEARING, Bronze

$

$

Not available

12

Simplicity 774352

AXLE, Left Hand

$

$

Not available

13

Simplicity 774299

AXLE, Right Hand

$

$

Not available

14

Simplicity 778067

GEAR, Bevel

$

$

Not available

15

Simplicity 778068

PINION, Bevel

$

$

Not available

16

Simplicity 786034

PIN, Drive

$

$

Not available

17

Simplicity 780065

WASHER, Thrust

$

$

Not available

18

Simplicity 780001

WASHER, Thrust

$

$

Not available

19

Simplicity 788038

RING, Snap

$

$

Not available

20

Simplicity 792040

PIN, Roll
(Superseded to 795259)

$33.99

$

Usually ships in 2-12 days

0

21

Simplicity 786080

SLEEVE ASSY, Countershaft (Incl. No. 22)

$

$

Not available

22

Simplicity 780066

BEARING, Bronze

$

$

Not available

23

Simplicity 776090

SHAFT, Idler

$

$

Not available

25

Simplicity 784079

ROD ASSY, Shift (1st & 2nd)(Incl. Nos. 26 thru 30)

$

$

Not available

26

Simplicity 784004

FORK, Shift

$

$

Not available

27

Simplicity 784083

ROD, Shift

$

$

Not available

28

Simplicity 792003

SPRING

$

$

Not available

29

Simplicity 792004

BALL, Steel
(Superseded to 799063)

$100.99

$

In Stock, only 4 left!

0

30

Simplicity 792017

RING, Snap

$

$

Not available

31

Simplicity 784084

ROD ASSY, Shift (2nd & 3rd)(Incl. Nos. 26,28,29,30 & 32)

$

$

Not available

32

Simplicity 784085

ROD, Shift

$

$

Not available

34

Simplicity 784088

HOUSING, Shift Lever

$

$

Not available

35

Simplicity 784094

KEEPER, Shift Lever

$

$

Not available

36

Simplicity 784283

LEVER, Shift

$

$

Not available

37

Simplicity 792016

RING, Snap

$

$

Not available

38

Simplicity 792001

RING, Quad

$

$

Not available

39

Simplicity 792049

PIN, Drive

$

$

Not available

41

Simplicity 786057

BLOCK, Riser

$

$

Not available

42

Simplicity 782036A

HOUSING ASSY, Axle (Incl. No. 43)

$

$

Not available

42A

Simplicity 782043

HOUSING ASSY, Axle (Incl. No. 43)

$

$

Not available

43

Simplicity 530105

BEARING, Needle

$

$

Not available

43A

Simplicity 788042

SEAL, Oil

$

$

Not available

44

Simplicity 778024A

GEAR (16 Teeth)

$

$

Not available

45

Simplicity 778057

GEAR, Bevel (33 Teeth)

$

$

Not available

46

Simplicity 776138

SHAFT, Shifter & Brake

$

$

Not available

47

Simplicity 778058

GEAR, Shifting (2nd & 3rd)

$

$

Not available

48

Simplicity 778059

GEAR, Shifting (1st & Rev.)

$

$

Not available

49

Simplicity 778060

GEAR, Spur (12 Teeth)

$

$

Not available

50

Simplicity 778140

GEAR, Countershaft Drive (39 Teeth)

$

$

Not available

51

Simplicity 778141

GEAR, Countershaft (34 Teeth)

$

$

Not available

52

Simplicity 778142

GEAR, Countershaft (25 Teeth)

$

$

Not available

54

Simplicity 778064

IDLER, Reverse

$

$

Not available

55

Simplicity 776057

SHAFT, Reverse Idler

$

$

Not available

56

Simplicity 786036

SPACER, Reverse Idler

$

$

Not available

57

Simplicity 784087

STOP, Shifter

$

$

Not available

58

Simplicity 788033

GASKET, Case & Cover

$

$

Not available

59

Simplicity 788003

GASKET, Shift Lever Housing

$

$

Not available

60

Simplicity 780093

BEARING, Ball

$

$

Not available

61

Simplicity 786078

SPACER

$

$

Not available

62

Simplicity 786079

SPACER

$

$

Not available

63

Simplicity 780071

BEARING, Thrust

$

$

Not available

64

Simplicity 780072

WASHER, Thrust

$

$

Not available

65

Simplicity 780073

WASHER, Thrust

$

$

Not available

66

Simplicity 792035

RING, Snap

$

$

Not available

67

Simplicity 786026

PIN, Dowel

$

$

Not available

68

Simplicity 788043

SEAL, Oil

$

$

Not available

69

Simplicity 788009

SEAL, Oil

$

$

Not available

70

Simplicity 788035

SEAL, Oil

$

$

Not available

71

Simplicity 792036

CAPSCREW, Socket Hd., 1/4-20 x 1-1/4

$

$

Not available

72

Simplicity 792051

CAPSCREW, Socket Hd., 1/4-20 x 1-3/4

$

$

Not available

73

Simplicity 792037

SCREW, Hex Hd., Sems, 5/16-18 x 1

$

$

Not available

75

Simplicity 792039

PLUG, Pipe, 1/8"

$

$

Not available

76

Simplicity 776103

SHAFT, Input

$

$

Not available

77

Simplicity 778077

PINION, Input

$

$

Not available

78

Simplicity 788040

RING, Retaining

$

$

Not available

79

Simplicity 790006

PAD, Brake

$

$

Not available

80

Simplicity 790007

PLATE, Brake Pad

$

$

Not available

81

Simplicity 790005

HOLDER, Brake Pad

$

$

Not available

82

Simplicity 790019

LEVER, Brake
(Superseded to 593432)

$143.99

$

In Stock, Qty 5

0

83

Simplicity 792076

WASHER, Flat

$

$

Not available

84

Simplicity 792075

NUT, Lock

$

$

Not available

85

Simplicity 792073

CAPSCREW, Hex Hd., Thd. Forming, 1/4-20 x 1-1/4

$67.99

$

In Stock, only 2 left!

0

85A

Simplicity 792085

SCREW, Hex Hd., Thd. Forming, 1/4-20 x 2-1/4

$

$

Not available

86

Simplicity 790009

DISK, Brake
(Superseded to 592814)

$149.99

$

In Stock, only 2 left!

0

87

Simplicity 792045

KEY, Woodruff #61

$

$

Not available

88

Simplicity 786066

SPACER

$

$

Not available

89

Simplicity 786073

BRACKET, Spring Anchor

$

$

Not available
