611 LTD (1690865) - Allis-Chalmers Lawn Tractor, 11hp Hood, Grille & Dash Group Parts Diagram

Lawn Tractor, 11hp

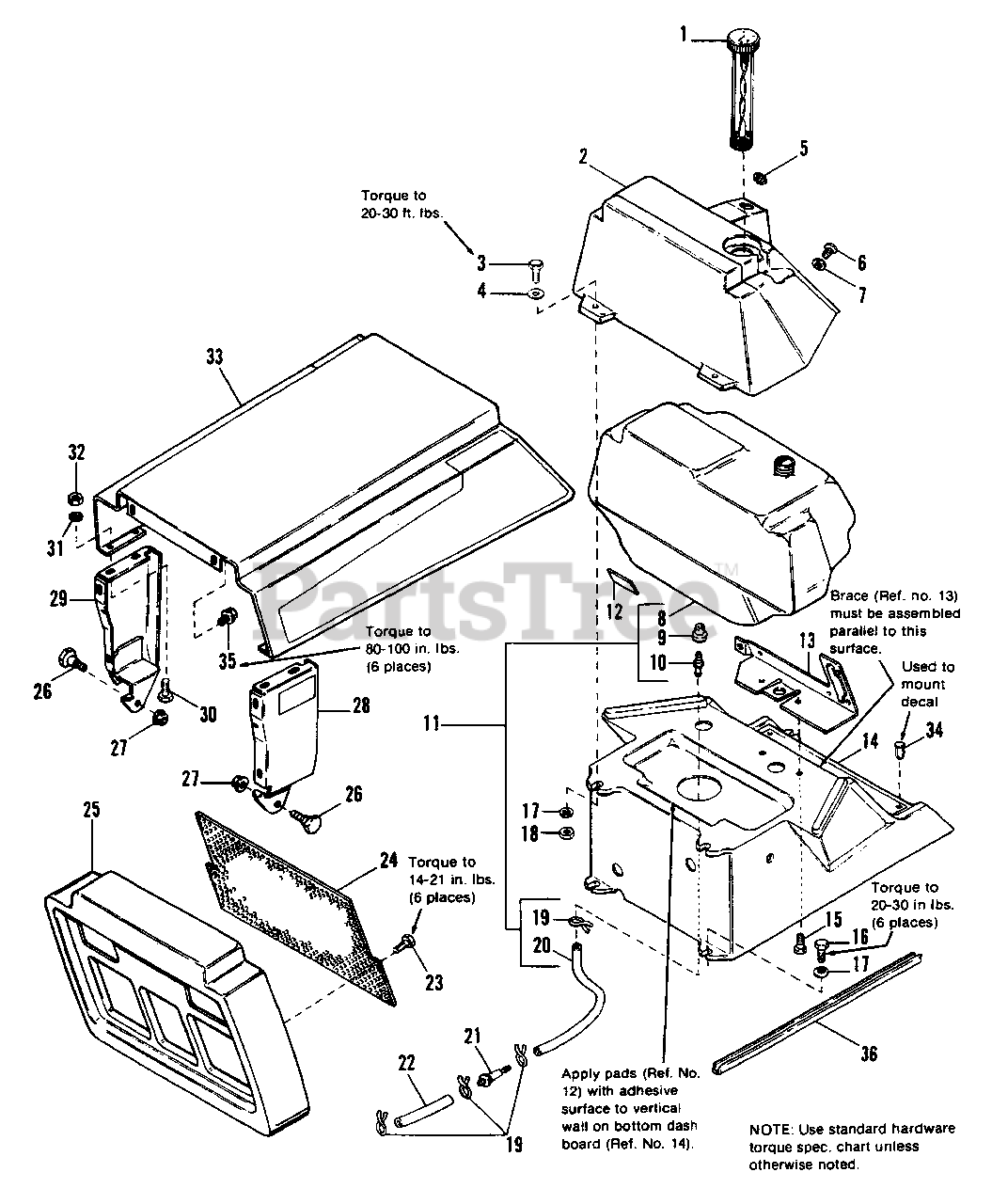

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 2171252SM

CAP

$31.99

$

In Stock, Qty 15

0

2

Simplicity 1672630

DASHBOARD, Top

$

$

Not available

3

Simplicity 2821961

CAPSCREW, Hex, 1/4-20 x 1-1/4

$

$

Not available

4

Simplicity 2817377

WASHER, 1/4

$

$

Not available

5

Simplicity 2828852

CAP, Plug (Light Switch)(1690843 only)

$

$

Not available

6

Simplicity 2830561

SCREW, Taptite Phillips, 1/4-20 x 3/4

$

$

Not available

7

Simplicity 2816955

WASHER, 3/16

$

$

Not available

8

TANK, Fuel (See Ref. No. 11)

$

$

Not available

9

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

10

Simplicity 1666447SM

FITTING

$

$

Not available

11

Simplicity 1687038SM

TANK ASSY., Fuel

Note: Reference No. 11 includes Ref. No. 8, 9, 10, 19 (Qty. 1), 20.

$198.99

$

Usually ships in 2-12 days

0

12

Simplicity 2173335

PAD

$

$

Not available

13

Simplicity 1665301

BRACE

$

$

Not available

14

Simplicity 1707393SM

DASHBOARD, Bottom

$

$

Not available

15

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 2829783

SCREW, Taptite, 1/4-20 x 1

$

$

Not available

17

Simplicity 2831704

LOCKWASHER, Dish, 1/4

$

$

Not available

18

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

19

Simplicity 2154372

CLAMP, Hose

$

$

Not available

20

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

21

Simplicity 2173206SM

FlLTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

22

Simplicity 1657652

HOSE, Fuel (1690843 only)

$

$

Not available

23

Simplicity 1960001SM

SCREW, Plastite, #10-14 x 1/2
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1656793SM

SCREEN

$

$

Not available

25

Simplicity 1685241SM

GRILLE

$158.99

$

Usually ships in 2-12 days

0

26

Simplicity 1656792SM

BOLT, Shoulder, 5/16-18 x 7/8

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 2827557

LOCKNUT, Flange, Whiz, 5/16-18

$

$

Not available

28

Simplicity 1656787

PANEL ASSY., L.H.

$

$

Not available

29

Simplicity 1656786

PANEL ASSY., R.H.

$

$

Not available

30

Simplicity 2821958

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

31

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

32

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

33

Simplicity 1656774

HOOD

$

$

Not available

34

Simplicity 1667248SM

CLIP, Canoe

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 1960106SM

SCREW, Plastite, 1/4 x 1

$2.99

$

Usually ships in 2-12 days

0

36

Simplicity 1672123

EDGING, Lower Dash

$

$

Not available
