6111 - Troy-Bilt Front-Tine Mini-Tiller (SN: C001001 - C017818) TINE ASSEMBLY Parts Diagram

Front-Tine Mini-Tiller

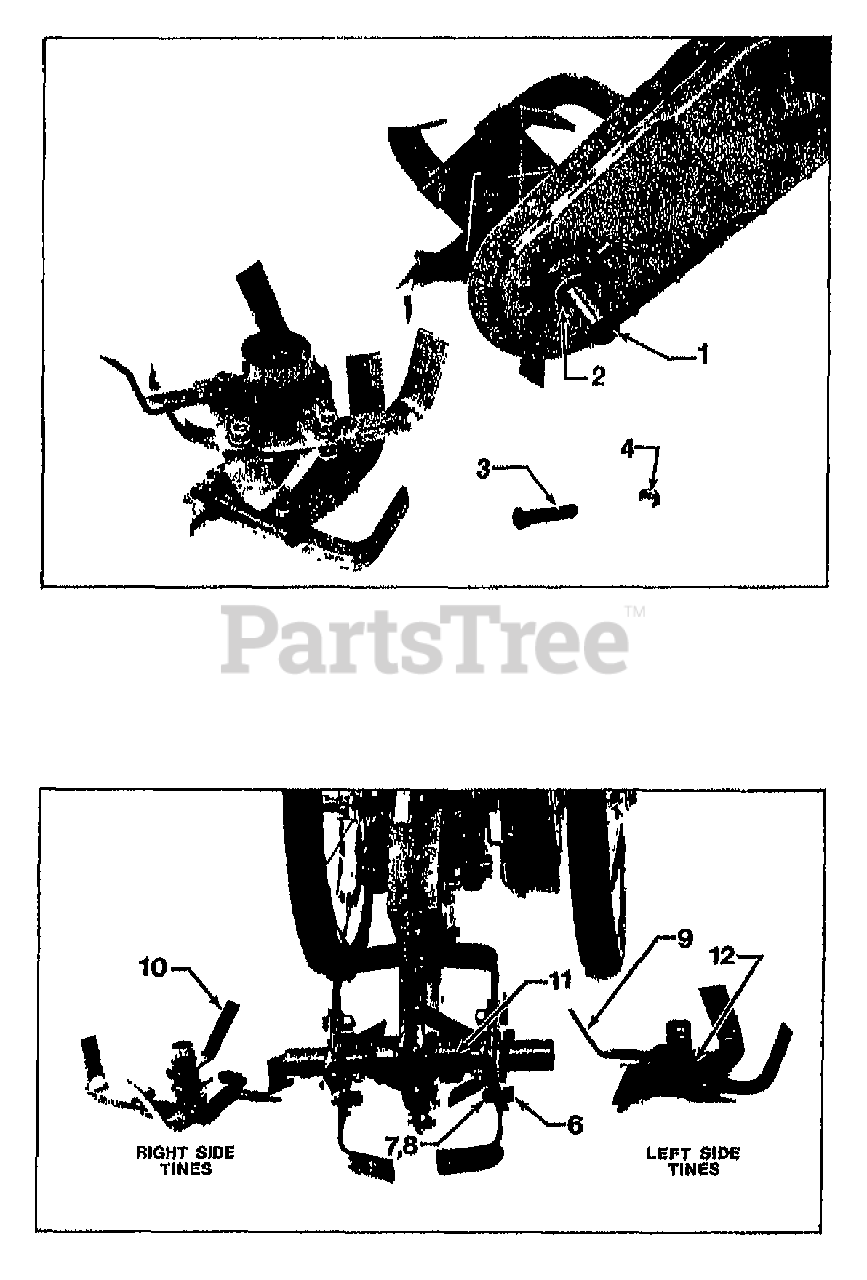

TINE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 60045

TINE SHAFT-WELD

$

$

Currently unavailable

2

Troy-Bilt 9620

SEAL-OIL

$

$

Currently unavailable

3

MTD 9555

BOLT-HH 3/8-16X1.75 G8 ZP (ATTACHES TINE HOLDERS TO TINE SHAFT)

$

$

Not available

4

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

6

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP (ATTACHES TINES TO TINE HOLDERS)
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 60010-2

TINE-BOLO LT

$

$

Currently unavailable

10

Troy-Bilt 60010-1

TINE-BOLO RT

$

$

Currently unavailable

11

Troy-Bilt 60007

TINE HOLDER-INNER WELD

$

$

Currently unavailable

12

Troy-Bilt 60004

TINE HOLDER-OUTER WELD

$

$

Currently unavailable
