612 (590-612-100) - Cub Cadet Backhoe Backhoe Hydraulics Parts Diagram

Backhoe

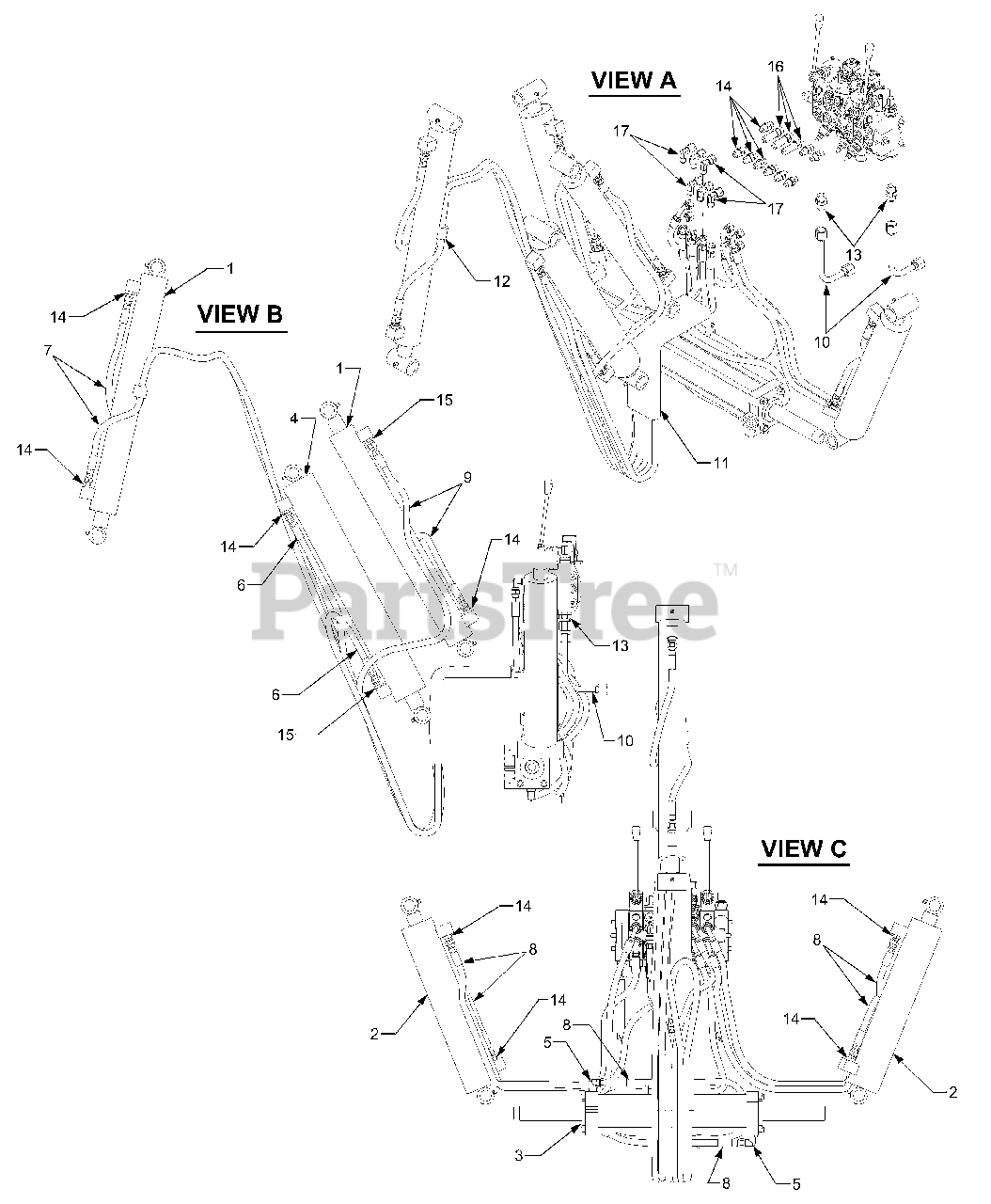

Backhoe Hydraulics Parts Diagram

  • Title

1

Cub Cadet 717-3235

Cylinder, Bucket & Dipper Arm

$

$

Not available

2

Cub Cadet 717-3236

Cylinder, Stabilizer Arm
(Superseded to 917-3236)

$

$

Not available

3

Cub Cadet 717-3237

Cylinder, Boom Angle
(Superseded to 917-3237)

$

$

Not available

4

Cub Cadet 717-3324

Cylinder, Boom

$

$

Not available

5

Cub Cadet 727-3012

Fitting, 90 Degree

$24.99

$

In Stock, only 4 left!

0

6

Cub Cadet 727-3237

Hose, Boom Cylinder

$

$

Not available

7

Cub Cadet 727-3238

Hose, Bucket Cylinder

$

$

Not available

8

Cub Cadet 727-3239

Hose, Swing-Stabilizer Cylinder

$124.99

$

In Stock, only 1 left!

0

9

Cub Cadet 727-3240

Hose, Dipper Arm Cylinder

$

$

Not available

10

Cub Cadet 727-3242

Tube, Valve Inlet

$

$

Not available

11

Cub Cadet 727-3243

Sleeve, Hose Guard

$

$

Not available

12

Cub Cadet 731-3373

Clamp, Hose

$

$

Not available

13

Cub Cadet 737-3112

Fitting, Straight - 8 Orb

$

$

Not available

14

Cub Cadet 737-3125

Fitting, Straight - 6 Orb

$

$

Not available

15

Cub Cadet 737-3134

Fitting, Straight - 6 Orb:Restricted

$

$

Not available

16

Cub Cadet 737-3135

Fitting, Straight - 6 Orb:Extended

$

$

Not available

17

Cub Cadet 737-3136

Fitting, 90 Degree Elbow (swivel)

$

$

Not available
