613 (590-613-100) - Cub Cadet 54" Mower Deck att 54" Deck Assembly Parts Diagram

54" Mower Deck

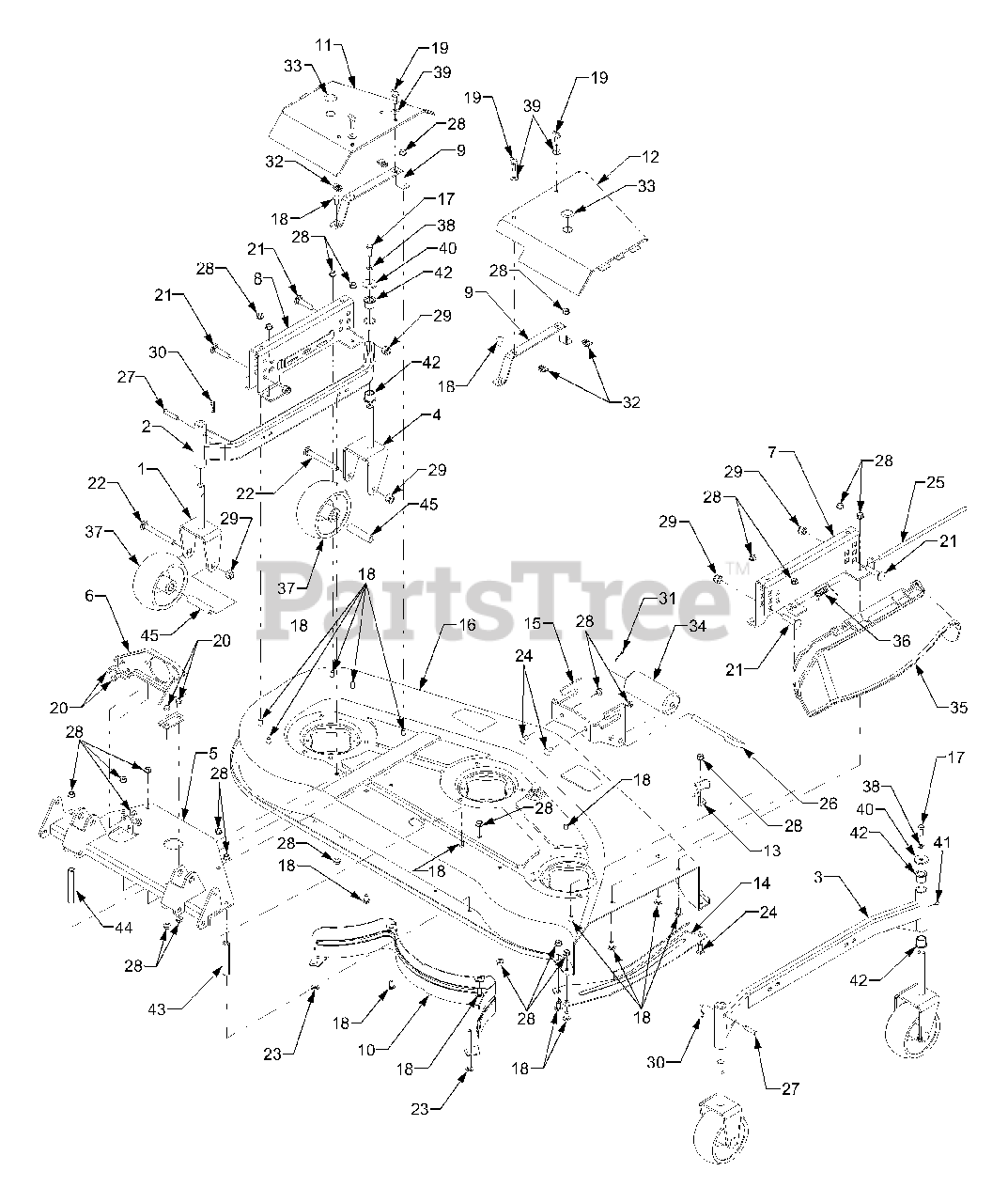

54" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0783-0716

Wheel Yoke, Rear
(Superseded to 603-0783-0637)

$175.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0779-0716

Axle, Caster, LH

$

$

Not available

3

Cub Cadet 603-0780-0716

Axle, Caster, RH

$

$

Not available

4

Cub Cadet 603-0850-0716

Wheel Yoke, Front

$

$

Not available

5

Cub Cadet 603-0851-0716

Plate Assembly, Mounting

$398.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-0853-0716

Bracket, Gear Box

$

$

Not available

7

Cub Cadet 603-0854-0716

Bracket, Caster Mounting RH

$

$

Not available

8

Cub Cadet 603-0855-0716

Bracket, Caster Mounting RH

$

$

Not available

9

Cub Cadet 703-2072-0716

Strap, Mounting

$

$

Not available

10

Cub Cadet 703-2093-0716

Baffle, Rear Inner
(Superseded to 703-2093C-0637)

$102.99

$

In Stock, Qty 13

0

11

Cub Cadet 703-2096B-0716

Cover, Belt (L.H.)
(Superseded to 703-2096C-0716)

$

$

Not available

12

Cub Cadet 703-2097B-0716

Cover, Belt (R.H.)
(Superseded to 703-2097B-4021)

$

$

Not available

13

Cub Cadet 703-3279-0716

Stop, Chute Deflector
(Superseded to 703-3279)

$42.99

$

In Stock, only 2 left!

0

14

Cub Cadet 703-3511-0716

Guard, Finger

$

$

Currently unavailable

15

Cub Cadet 703-3595-0716

Bracket, Front Roller
(Superseded to 703-3595-0637)

$

$

Not available

16

Cub Cadet 703-3890-0716

Deck

$

$

Not available

Cub Cadet 777D05395

Label, 54"

$

$

Not available

Cub Cadet 777S30503

Label, Safety

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 777S30015

Label, Danger L.H. Side

$9.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3178

Carriage, Bolt 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-3232

Screw, Thumb Adjust 5/16-18 x 1

$10.99

$

In Stock, Qty 5

0

20

Cub Cadet 710-0216

Screw, Hex Cap 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 8

0

21

Cub Cadet 710-1516

Screw, Carriage 1/2-13 x 2.125 GR5

$

$

Not available

22

Cub Cadet 710-1638

Screw, Carriage 1/2-13 x 4.5 GR5

$11.99

$

In Stock, Qty 10

0

23

Cub Cadet 710-1644

Carriage, Bolt 3/8-16 x 5.0 GR5

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-3168

Carriage, Bolt 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 711-1762

Pin, Hinged .375 x 14.06

$19.99

$

In Stock, only 4 left!

0

26

Cub Cadet 711-3314

Pin, Roller 1/2 x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

27

Cub Cadet 711-0415

Pin, Clevis, 3/8 x 1.75

$4.99

$

In Stock, Qty 8

0

28

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 712-3083

Nut, Hex Nylon Lock 1/2-13 GR8

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 714-0145

Pin, Internal Cotter

$5.49

$

In Stock, Qty 20+

0

31

Cub Cadet 714-3004

Pin, Cotter 3/32 x 1.25

$5.49

$

In Stock, only 4 left!

0

32

Cub Cadet 726-0211

Nut, "U" 5/16-18

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 15

0

34

Cub Cadet 731-3005

Roller, Front

$30.99

$

In Stock, Qty 20+

0

35

Cub Cadet 731-3131A

Deflector, Chute
(Superseded to 931-3131A)

$114.99

$

In Stock, only 3 left!

0

Cub Cadet 777S30145

Label, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

36

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$12.99

$

In Stock, only 2 left!

0

37

Cub Cadet 734-3195

Caster, Wheel w/Bearings
(Superseded to 734-3195A)

$133.99

$

In Stock, only 4 left!

0

Cub Cadet 741-3090

Bearing, Flange

$18.99

$

In Stock, Qty 14

0

38

Cub Cadet 736-0169

Washer, Lock 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0242

Washer, Bell .34" I.D.

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.99

$

In Stock, Qty 9

0

41

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 741-0339

Bearing, Flange, .754 ID
(Superseded to 941-0339)

$13.99

$

In Stock, Qty 20+

0

43

Cub Cadet 750-3213

Spacer, .405" I.D. x 3.875" Lg.

$16.99

$

In Stock, only 2 left!

0

44

Cub Cadet 750-3214

Spacer, .405' I.D. x 4.075" Lg.

$

$

Not available

45

Cub Cadet 750-3222

Axle, Caster Wheel

$29.99

$

In Stock, Qty 8

0
