613 (590-613-100) - Cub Cadet 54" Mower Deck att 54" Deck Drive Parts Diagram

54" Mower Deck

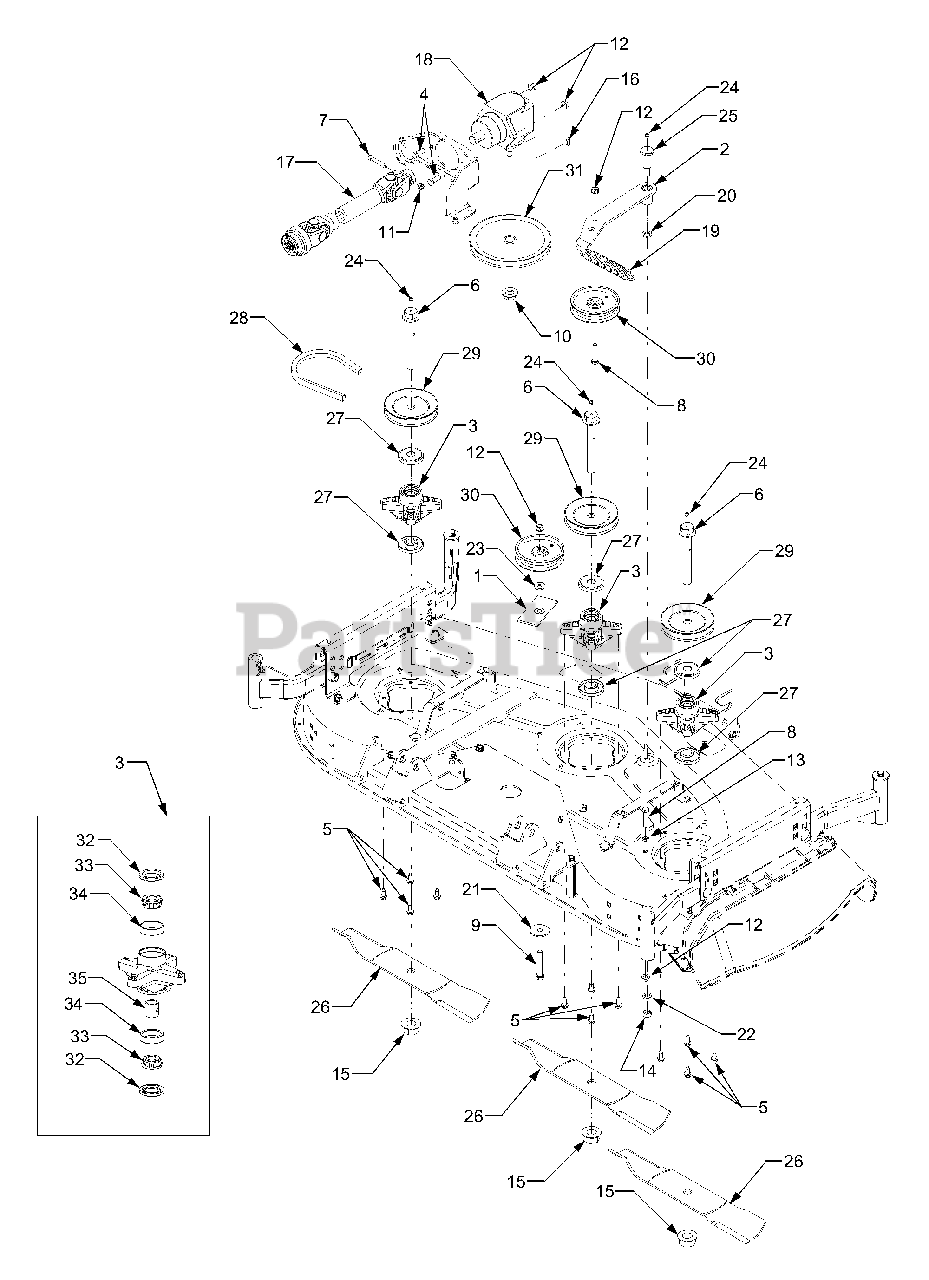

54" Deck Drive Parts Diagram

  • Title

1

Cub Cadet 603-0646-0716

Assembly, Spacer

$61.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0911-0716

Bracket, Idler

$

$

Not available

3

Cub Cadet 618-3129A

Assembly, Spindle
(Superseded to 918-3129C)

Note: Includes Ref. Nos. 32 thru 35

$112.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1336A

Bolt, Spindle, 3/4-16 x 4.25

$22.99

$

In Stock, Qty 18

0

7

Cub Cadet 710-3251

Screw, Sock. Hd. 5/16-18 x 1.75

$5.99

$

In Stock, Qty 13

0

8

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3011

Screw, Hex Cap 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0417A

Nut , Hex Flanged 5/8-18

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0429

Nut, Hex Nylon Lock 5/16 -18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3019

Nut, Hex 7/16-14

$6.49

$

In Stock, only 4 left!

0

15

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0868

Key, Hi-Pro
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

17

Cub Cadet 717-3521

Shaft, Drive
(Superseded to 717-3521A)

$877.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 717-3447

Drive, Right Angle
(Superseded to 917-3447)

$933.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-0850

Spring, Extension 6.14" Lg.
(Superseded to 932-0850)

$22.99

$

In Stock, Qty 7

0

20

Cub Cadet 736-0322

Washer, Flat, .45 x 1.25 x .164

$8.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3039

Washer, Flat .406" I.D.

$4.99

$

In Stock, Qty 18

0

22

Cub Cadet 736-0171

Washer, Lock 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-3024

Washer, Flat .47 x .75 x .06

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 738-3005A

Bolt, Shoulder .68" Dia. x 1.59
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

26

Cub Cadet 759-04012

Blade, High Lift 18.5" Lg.
(Superseded to 742-3041-0637)

$59.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 748-3065

Spacer, Deck Spindle
(Superseded to 748-3065A)

$12.99

$

In Stock, Qty 20+

0

28

Cub Cadet 754-3102

Belt, "V" 120" Lg.
(Superseded to 954-3102)

$91.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 756-1209

Pulley, "V"
(Superseded to 956-1209)

$56.99

$

In Stock, only 3 left!

0

30

Cub Cadet 756-3005

Pulley, Flat Idler

$42.99

$

In Stock, Qty 20+

0

31

Cub Cadet 756-3097

Pulley, Drive

$65.99

$

In Stock, only 1 left!

0

32

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

$7.99

$

In Stock, Qty 20+

0

33

Cub Cadet 741-3028

Bearing, Cone
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

34

Cub Cadet 741-3029

Cup, Bearing
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

35

Cub Cadet 750-3190A

Spacer, Bearing

$12.99

$

In Stock, Qty 6

0
