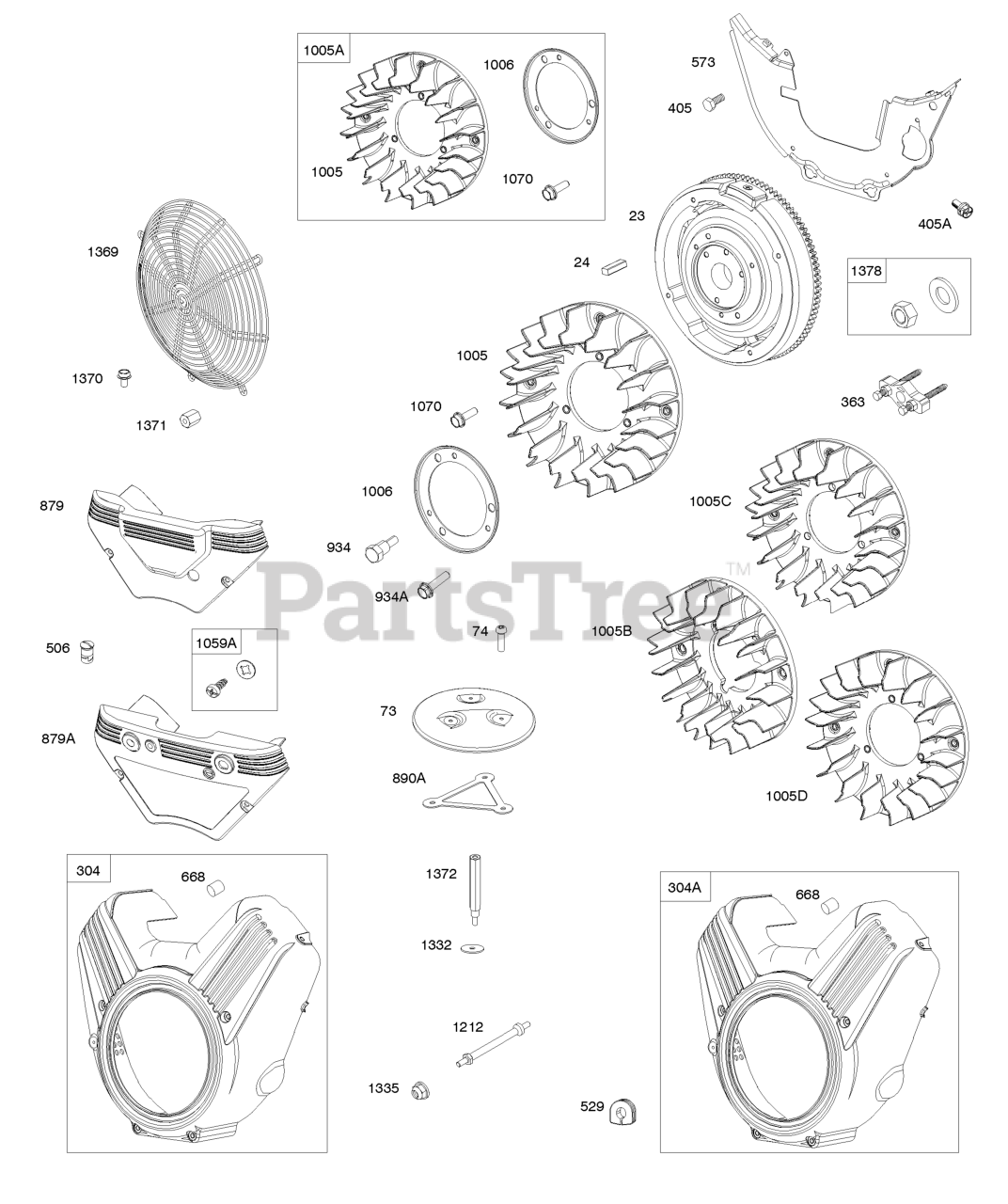

613275-0151-E2 - Briggs & Stratton Horizontal Engine Blower Housings, Carburetor Covers, Flywheel Fans Parts Diagram

Horizontal Engine

Blower Housings, Carburetor Covers, Flywheel Fans Parts Diagram

  • Title

23

Briggs & Stratton 844387

Flywheel

$434.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

Note: (Aluminum) Used Before Code Date 07122800

$2.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 796335

KEY, Flywheel

Note: (Steel) Used After Code Date 07122700

$5.49

$

In Stock, Qty 12

0

73

Briggs & Stratton 841840

Screen-Rotating

$45.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 809947

Screw

Note: (Rotating Screen) (M6x20mm)

$4.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 843442

Housing-Blower
(Superseded to 845894)

Note: (Oil Cooler) Used Before Code Date 11041300

$189.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 845894

Housing-Blower

Note: (Oil Cooler) Used After Code Date 11041200 Used Before Code Date 13082300

$189.99

$

Usually ships in 2-12 days

0

304A

Briggs & Stratton 845894

Housing-Blower

Note: (Oil Cooler) Used After Code Date 13082200

$189.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate) (M6x10mm)

$3.49

$

In Stock, Qty 6

0

405A

Briggs & Stratton 841735

SCREW

Note: (Back Plate) (M6x14mm)

$3.99

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 809957

Screw

Note: (Carburetor/EFI Cover) Used Before Code Date 11041300

$14.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

Note: (Magneto Armature Wires)

$7.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 846840

PLATE, Back

Note: (Without Weld Nuts)

$139.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 841974

SPACER

Note: (Blower Housing)

$5.99

$

In Stock, only 3 left!

0

879

Briggs & Stratton 843450

Cover-Carburetor/EFI

$52.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 809987

Bracket-Support

$14.99

$

In Stock, only 2 left!

0

934

Briggs & Stratton 841205

Screw

Note: (Fan Retainer) (M6x24mm)

$10.99

$

Usually ships in 2-12 days

0

934A

Briggs & Stratton 807421

SCREW

Note: (Fan Retainer) (M6x25mm)

$3.49

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 846995

Fan-Flywheel

Note: (Used Without Rotating Screen) Used After Code Date 15080600

$54.99

$

Usually ships in 2-12 days

0

1005A

Briggs & Stratton 847199

Fan-Flywheel

Note: Used Before Code Date 15080700

$60.99

$

Usually ships in 2-12 days

0

1005B

Briggs & Stratton 843436

Fan-Flywheel

Note: Used Before Code Date 15080700

$49.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 847198

Retainer-Fan

$9.49

$

In Stock, only 2 left!

0

1059A

Briggs & Stratton 845300

KIT, Screw/Washer

Note: (Carburetor/EFI Cover) Used After Code Date 11041300

$5.49

$

In Stock, only 1 left!

0

1070

Briggs & Stratton 807435

SCREW

Note: (Flywheel Fan) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1212

Briggs & Stratton 809958

STUD

Note: (Blower Housing)

$17.99

$

In Stock, only 3 left!

0

1332

Briggs & Stratton 809948

Washer

Note: (Rotating Screen)

$5.49

$

In Stock, only 4 left!

0

1335

Briggs & Stratton 690939

NUT

Note: (Blower Housing)

$3.49

$

In Stock, only 2 left!

0

1372

Briggs & Stratton 809946

Stud

Note: (Rotating Screen)

$17.99

$

In Stock, only 1 left!

0

1378

Briggs & Stratton 844795

Washer/Nut Set

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0
