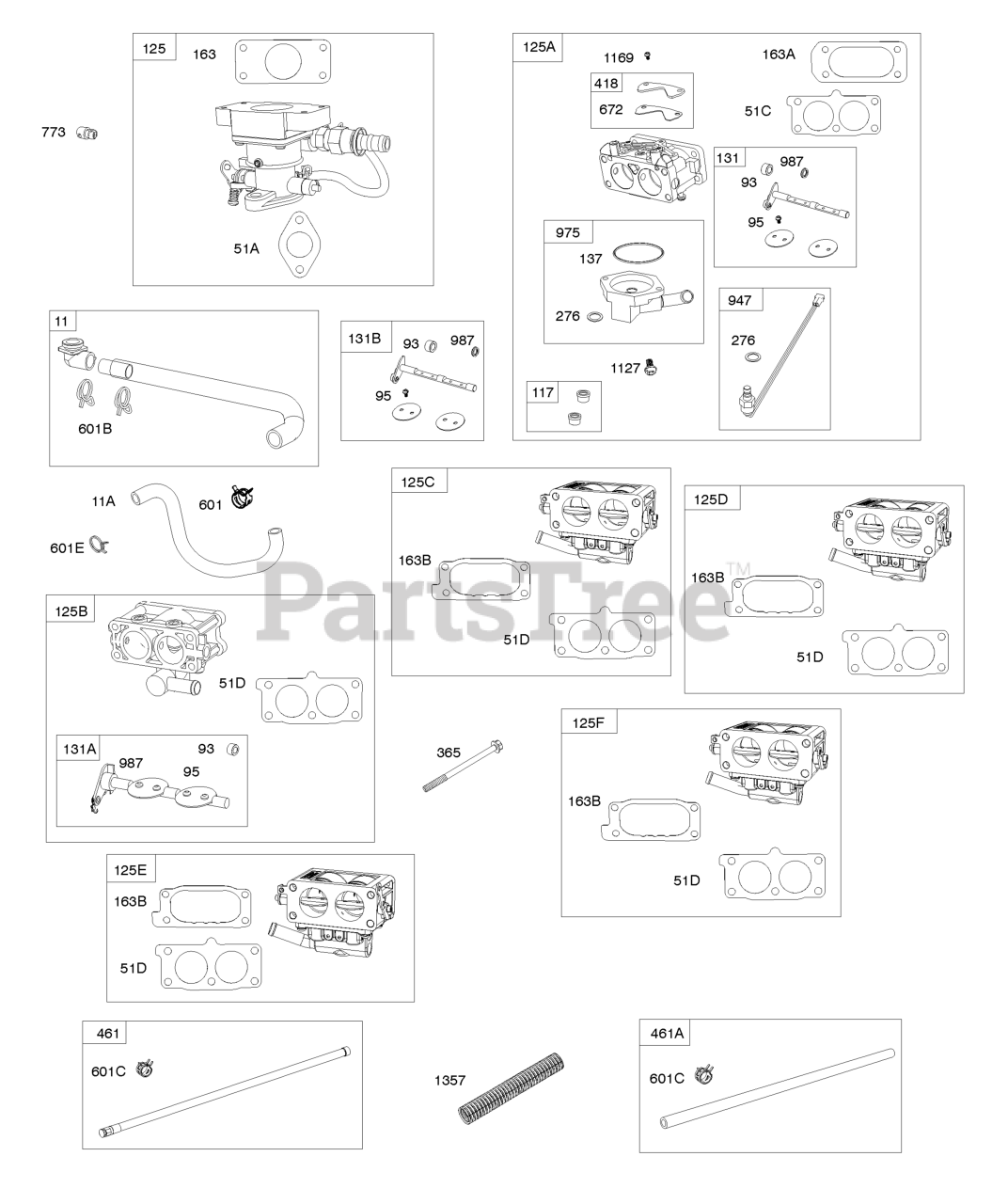

613275-0151-E2 - Briggs & Stratton Horizontal Engine Carburetor Mixers, Fuel Lines Parts Diagram

Horizontal Engine

Carburetor Mixers, Fuel Lines Parts Diagram

  • Title

11

Briggs & Stratton 843457

Tube-Breather

$52.99

$

Usually ships in 2-12 days

0

11A

Briggs & Stratton 809736

Tube-Breather

$22.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 843456

Gasket-Intake

Note: (Adapter to Carburetor)

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 843527

Carburetor

Note: (Liquid Propane)

$411.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 841651

Gasket-Float Bowl

$7.49

$

In Stock, only 2 left!

0

163

Briggs & Stratton 843448

Gasket-Air Cleaner

$5.49

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 841853

Screw

Note: (Carburetor/Throttle Body) (M6x103mm)

$6.49

$

Usually ships in 2-12 days

0

418

Briggs & Stratton 844589

Plate-Carburetor Cover

$16.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 842185

Hose-Gaseous Fuel

Note: (40 Inches Long)

$172.99

$

Usually ships in 2-12 days

0

601E

Briggs & Stratton 841499

Clamp-Hose
(Superseded to 844405)

Note: (Breather Tube) Used Before Code Date 07121400

$3.99

$

Usually ships in 2-12 days

0

672

Briggs & Stratton 843102

Gasket-Carburetor Plate

$12.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 843643

Retainer

Note: (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 808183

Seal-Throttle Shaft

$15.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 841621

Screw

Note: (Float Bowl to Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

SCREW

Note: (Carburetor Cover Plate)

$3.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 844413

Sleeve-Fuel Line

$7.99

$

Usually ships in 2-12 days

0
