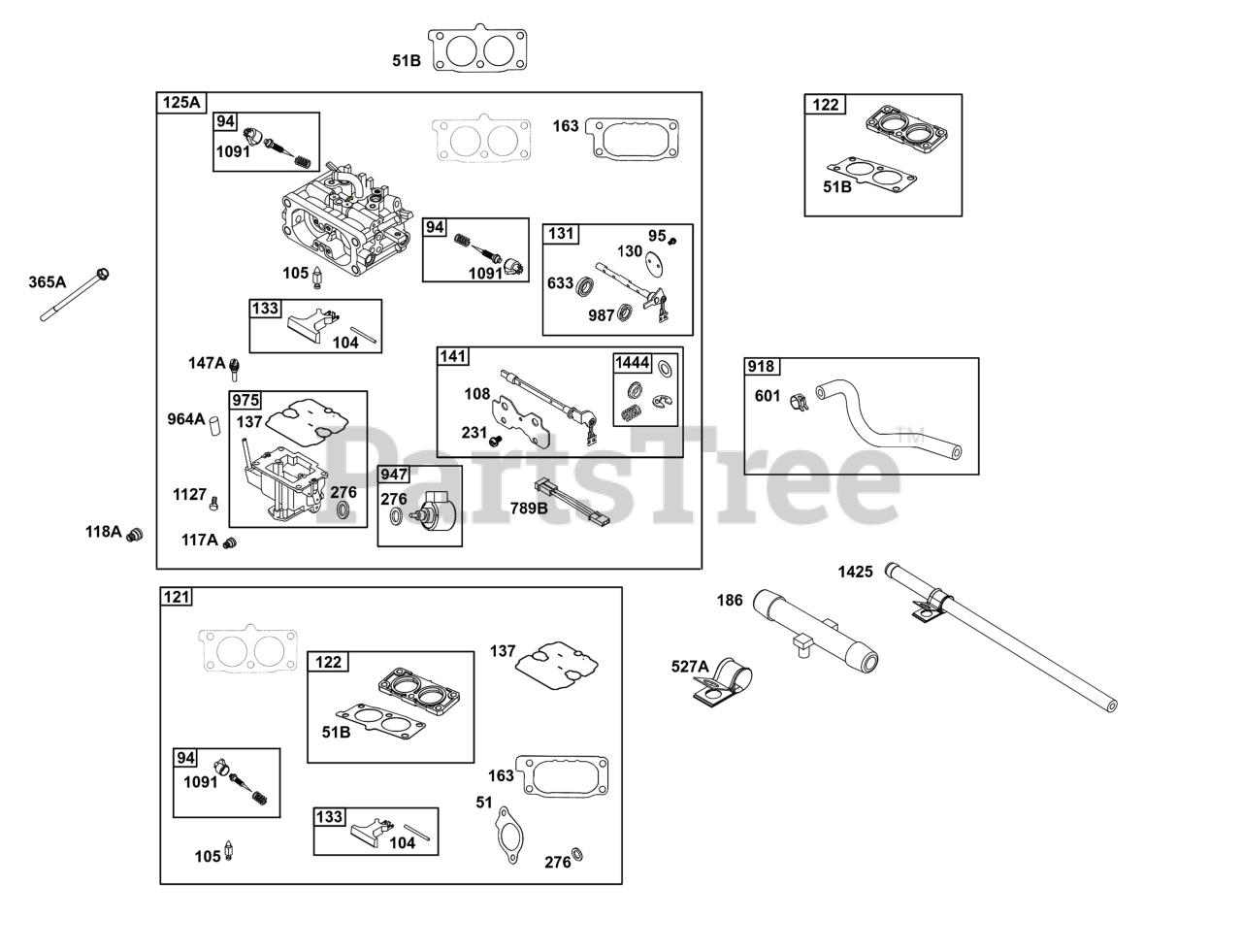

613477-0268-J1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

$

$

Not available

51B

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

94

Briggs & Stratton 843295

KIT, Idle Mixture

$48.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 690739

PIN, Float Hinge

$6.99

$

In Stock, only 2 left!

0

105

Briggs & Stratton 809759

VALVE, Float Needle

$

$

Not available

108

Briggs & Stratton 844652

VALVE, Choke

$15.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 844649

JET, Main

Note: (Standard) (Right Jet)

$22.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 842095

JET, Main

Note: (Standard) (Left Jet)

$21.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 842738

JET, Main
(Superseded to 842098)

Note: (Hi Altitude, 5000ft) (Right Jet)

$22.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 842739

JET, Main

Note: (Hi Altitude, 5000ft) (Left Jet)

$43.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 843297

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$

$

Not available

122

Briggs & Stratton 846245

SPACER, Carburetor

$14.99

$

In Stock, only 3 left!

0

125A

Briggs & Stratton 845273

CARBURETOR

$375.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 841913

VALVE, Throttle

$16.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 845038

KIT, Throttle Shaft

$113.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 809637

FLOAT, Carburetor

$

$

Not available

137

Briggs & Stratton 809645

GASKET, Float Bowl

$10.99

$

In Stock, only 2 left!

0

141

Briggs & Stratton 845036

KIT, Choke Shaft

$100.99

$

In Stock, only 1 left!

0

147A

Briggs & Stratton 842069

NOZZLE, Carburetor

$39.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.99

$

In Stock, Qty 7

0

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 806476

WASHER, Sealing

$7.49

$

In Stock, Qty 10

0

365A

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

527A

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 844405

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 809641

SEAL, Choke/Throttle Shaft

$7.49

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 843364

HARNESS, Wiring

$61.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 844525

HOSE, Vacuum

$10.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 842109

SOLENOID, Fuel

$

$

Not available

964A

Briggs & Stratton 809640

CAP, Carburetor

$11.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 842106

BOWL, Float

$125.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 809639

SEAL, Choke/Throttle Shaft

$7.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691515

CAP-LIMITER

$9.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 809715

SCREW

Note: (Float Bowl to Carburetor Body)

$

$

Not available

1425

Briggs & Stratton 844712

HOSE, Purge Line

$32.99

$

Usually ships in 2-12 days

0

1444

Briggs & Stratton 845039

KIT, Choke Shaft Seal

$20.99

$

Usually ships in 2-12 days

0
