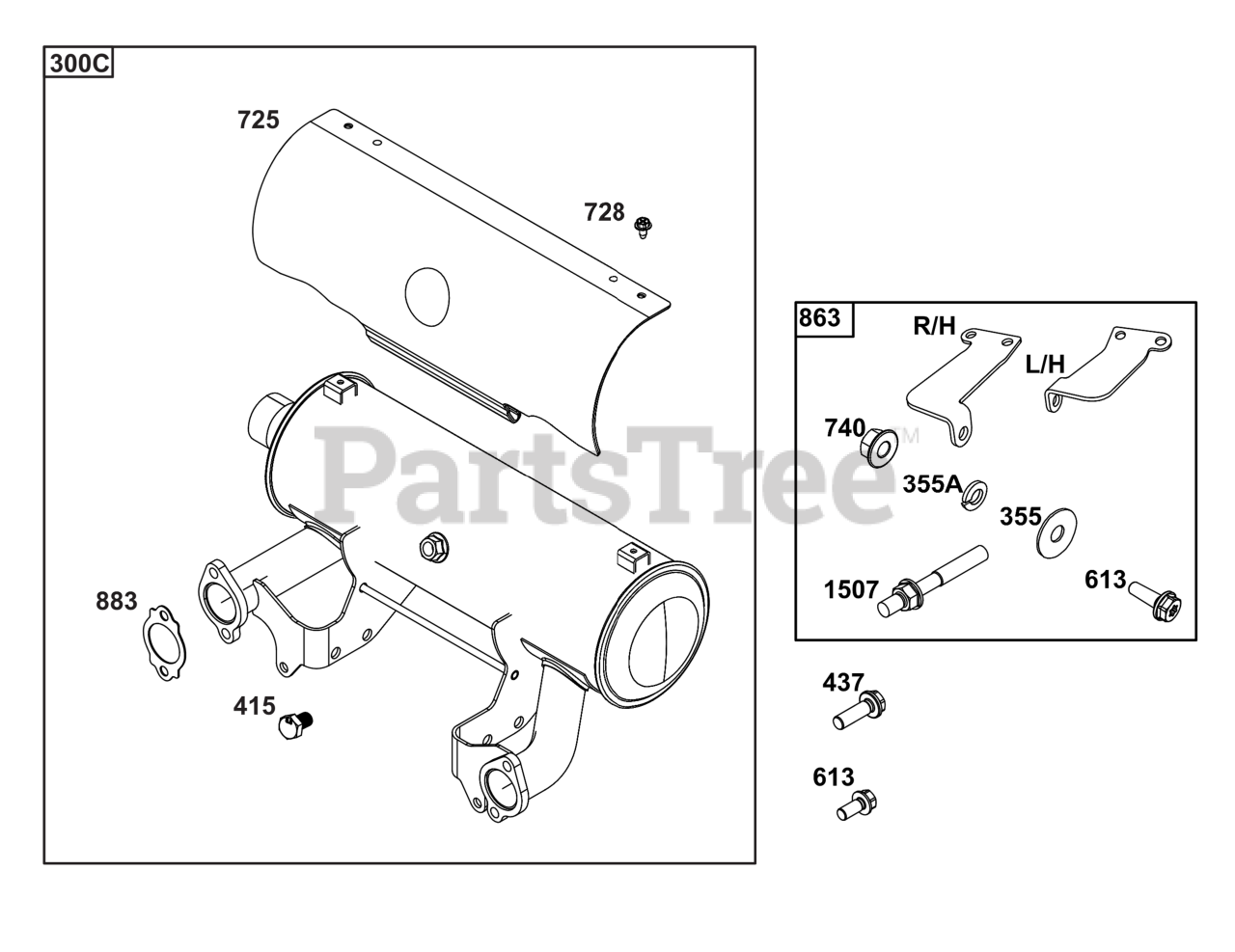

613477-0278-J1 - Briggs & Stratton Horizontal Engine Exhaust Group Parts Diagram

Horizontal Engine

Exhaust Group Parts Diagram

  • Title

300C

Briggs & Stratton 846819

MUFFLER

$500.99

$

Usually ships in 2-12 days

0

355

Briggs & Stratton 844035

WASHER

Note: (Muffler Bracket)

$5.49

$

Usually ships in 2-12 days

0

355A

Briggs & Stratton 691075

WASHER
(Superseded to 5025170SM)

Note: (Muffler Bracket)

$4.49

$

In Stock, only 2 left!

0

415

Briggs & Stratton 596859

PLUG

$8.49

$

In Stock, only 1 left!

0

437

Briggs & Stratton 846149

SCREW

Note: (Exhaust Manifold)

$4.99

$

In Stock, Qty 18

0

613

Briggs & Stratton 692062

SCREW

Note: (Muffler)

$3.99

$

In Stock, only 4 left!

0

725

SHIELD, Heat

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

728

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

740

Briggs & Stratton 690941

NUT

Note: (Muffler Bracket)

$5.49

$

In Stock, Qty 7

0

863

Briggs & Stratton 84002127

BRACKET, Muffler

$107.99

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 84002127

BRACKET, Muffler

$107.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 809872

GASKET, Exhaust

$5.99

$

In Stock, Qty 20+

0

1507

Briggs & Stratton 846324

STUD

Note: (Muffler Bracket)

$14.99

$

Usually ships in 2-12 days

0
