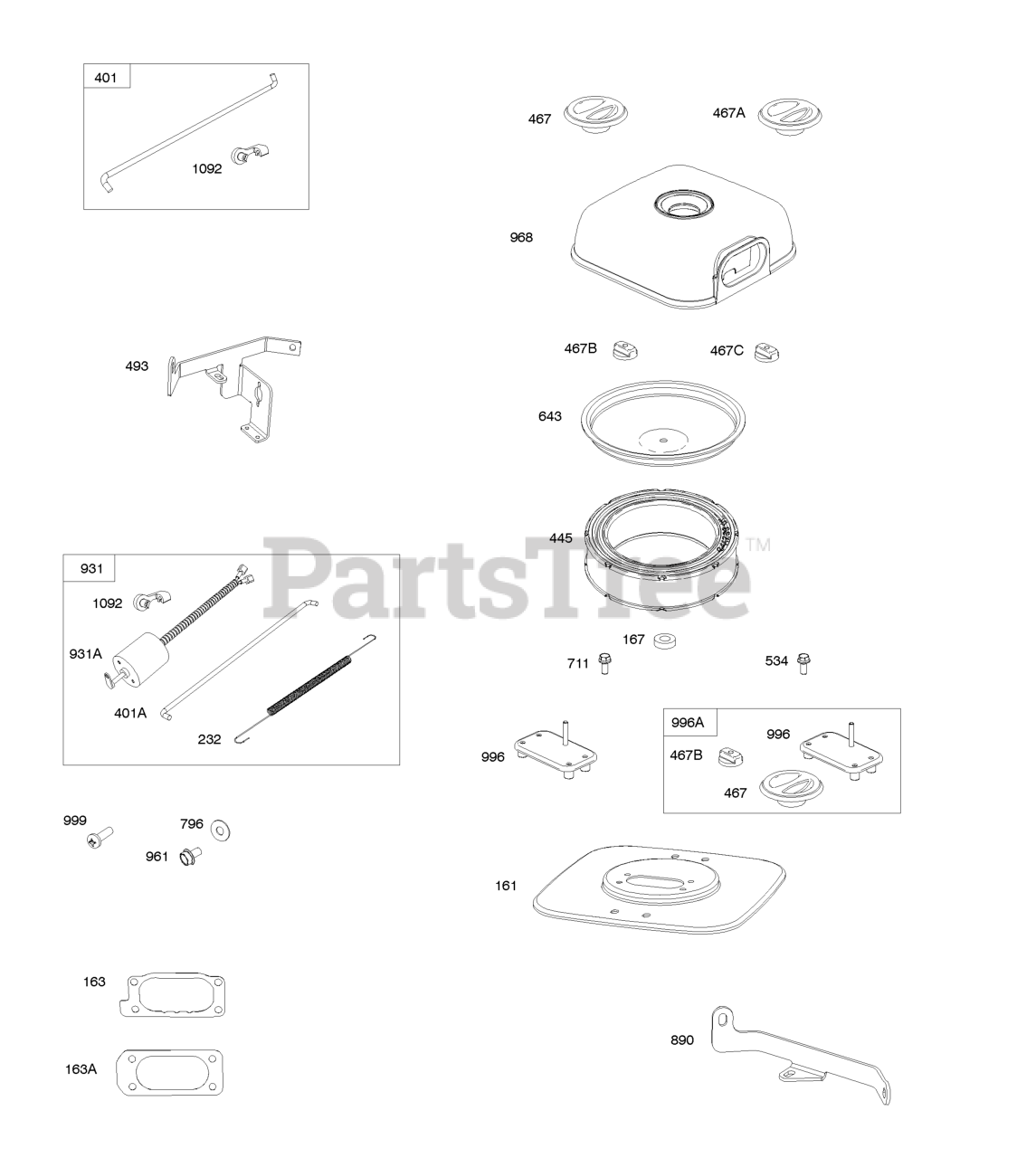

614275-0111-G1 - Briggs & Stratton Horizontal Engine Air Cleaner, Actuator Parts Diagram

Horizontal Engine

Air Cleaner, Actuator Parts Diagram

  • Title

161

Briggs & Stratton 843118

BASE, Air Cleaner

Note: (Metal)

$72.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, only 4 left!

0

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$5.99

$

In Stock, only 1 left!

0

167

Briggs & Stratton 841855

Seal-Air Cleaner Nut

$11.99

$

Usually ships in 2-12 days

0

401

Briggs & Stratton 845773

Link-Actuator
(Superseded to 317323GS)

$14.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 841856

Filter-A/C Cartridge

$27.99

$

In Stock, only 2 left!

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

Note: (M8)

$16.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 841846

Knob-Air Cleaner Cover

Note: (M6)

$16.99

$

Usually ships in 2-12 days

0

467C

Briggs & Stratton 844618

Knob-Air Cleaner Cover

Note: (M6)

$7.99

$

In Stock, only 3 left!

0

467B

Briggs & Stratton 846007

Knob-Air Cleaner Cover
(Superseded to 846432)

Note: (M8)

$8.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 692062

Screw

Note: (Air Cleaner)

$3.49

$

In Stock, only 3 left!

0

643

Briggs & Stratton 844932

RETAINER, Air Filter

$22.99

$

Usually ships in 2-12 days

0

711

Briggs & Stratton 807385

Screw

Note: (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

796

Briggs & Stratton 690272

WASHER

Note: (Actuator)

$3.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 841614

Bracket-Support

$23.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 841233

SCREW

Note: (Air Cleaner Bracket) (Air Cleaner Bracket to Actuator Bracket)

$3.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 843447

Cover-Air Cleaner
(Superseded to 846323)

$64.99

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

Note: (M8 Stud) Used After Code Date 14012700

$36.99

$

Usually ships in 2-12 days

0

996A

Briggs & Stratton 846013

Shield-Carburetor

Note: (M8 Stud) Used Before Code Date 14012800

$36.99

$

Usually ships in 2-12 days

0

999

Briggs & Stratton 797483

Screw

Note: (Actuator) (#8-32x.87)

$4.49

$

Usually ships in 2-12 days

0

1092

Briggs & Stratton 845699

Clevis

$8.49

$

Usually ships in 2-12 days

0
