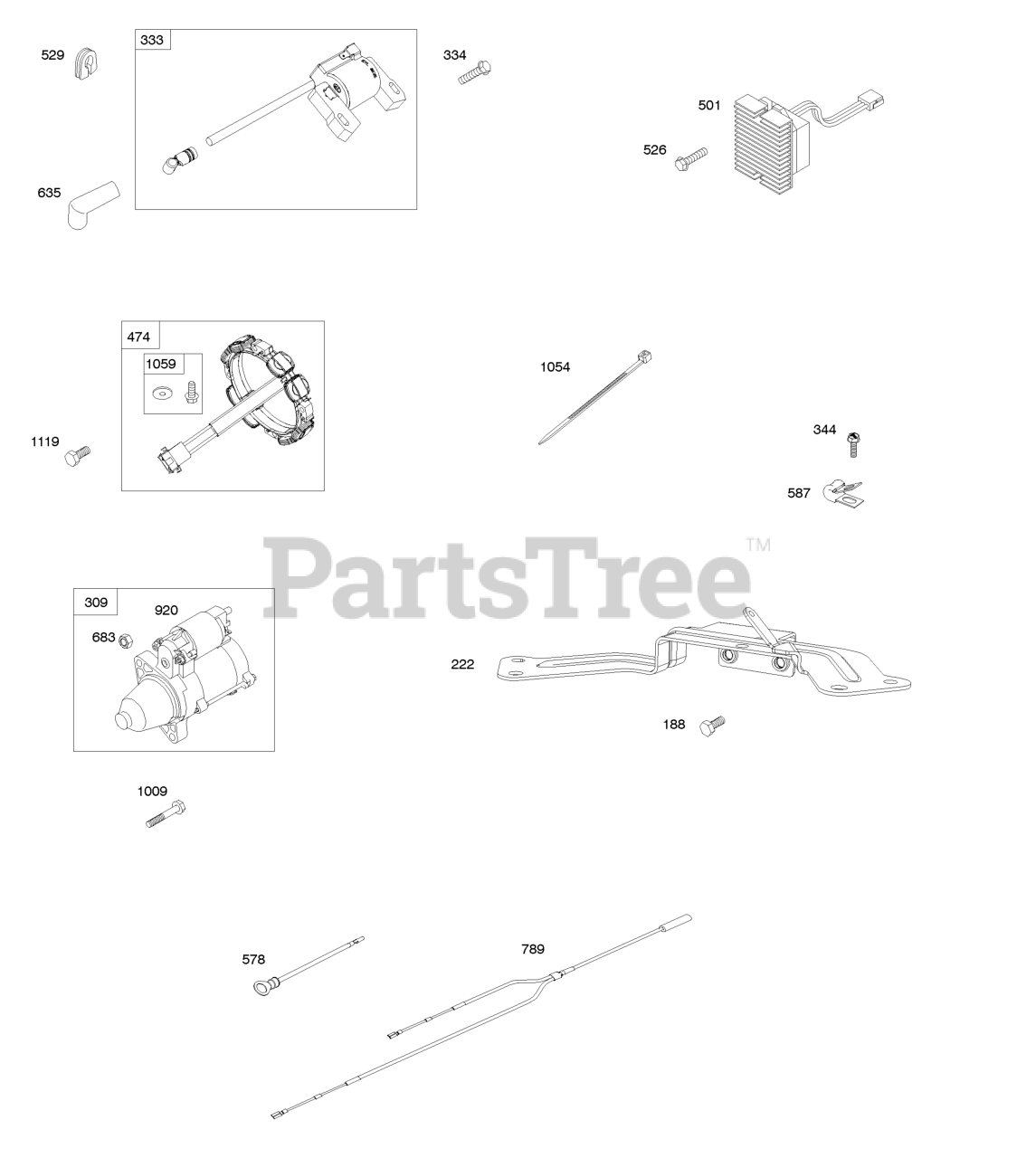

614277-0001-G1 - Briggs & Stratton Horizontal Engine Armature, Regulator, Alternator, Electric Starter Parts Diagram

Horizontal Engine

Armature, Regulator, Alternator, Electric Starter Parts Diagram

  • Title

188

Briggs & Stratton 692062

Screw

Note: (Control Bracket)

$3.49

$

In Stock, only 3 left!

0

222

Briggs & Stratton 844420

Bracket-Control

$74.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 845760

Motor-Starter
(Superseded to 84008634)

$238.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 845126

Armature-Magneto

$63.99

$

In Stock, only 4 left!

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 11

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp)

$3.49

$

In Stock, only 3 left!

0

474

Briggs & Stratton 696579

Alternator

$107.99

$

In Stock, Qty 6

0

501

Briggs & Stratton 691573

Regulator
(Superseded to 84004837)

$99.99

$

In Stock, only 1 left!

0

526

Briggs & Stratton 690717

Screw

Note: (Regulator)

$3.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844407

Wire Assembly

$10.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 807386

Clamp-Cable

$3.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 17

0

683

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 1 left!

0

789

Briggs & Stratton 844406

Harness-Wiring

$27.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 845647

Solenoid-Starter
(Superseded to 846737)

Note: Used Before Code Date 12071100

$

$

Not available

920

Briggs & Stratton 845757

Solenoid-Starter
(Superseded to 846737)

Note: Used After Code Date 12071000

$

$

Not available

1009

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (M8x38mm)

$6.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.49

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

In Stock, only 2 left!

0
