616 (2020185) - AGCO Lawn Tractor, 16.5hp SEAT AND STEERING SYSTEM Parts Diagram

Lawn Tractor, 16.5hp

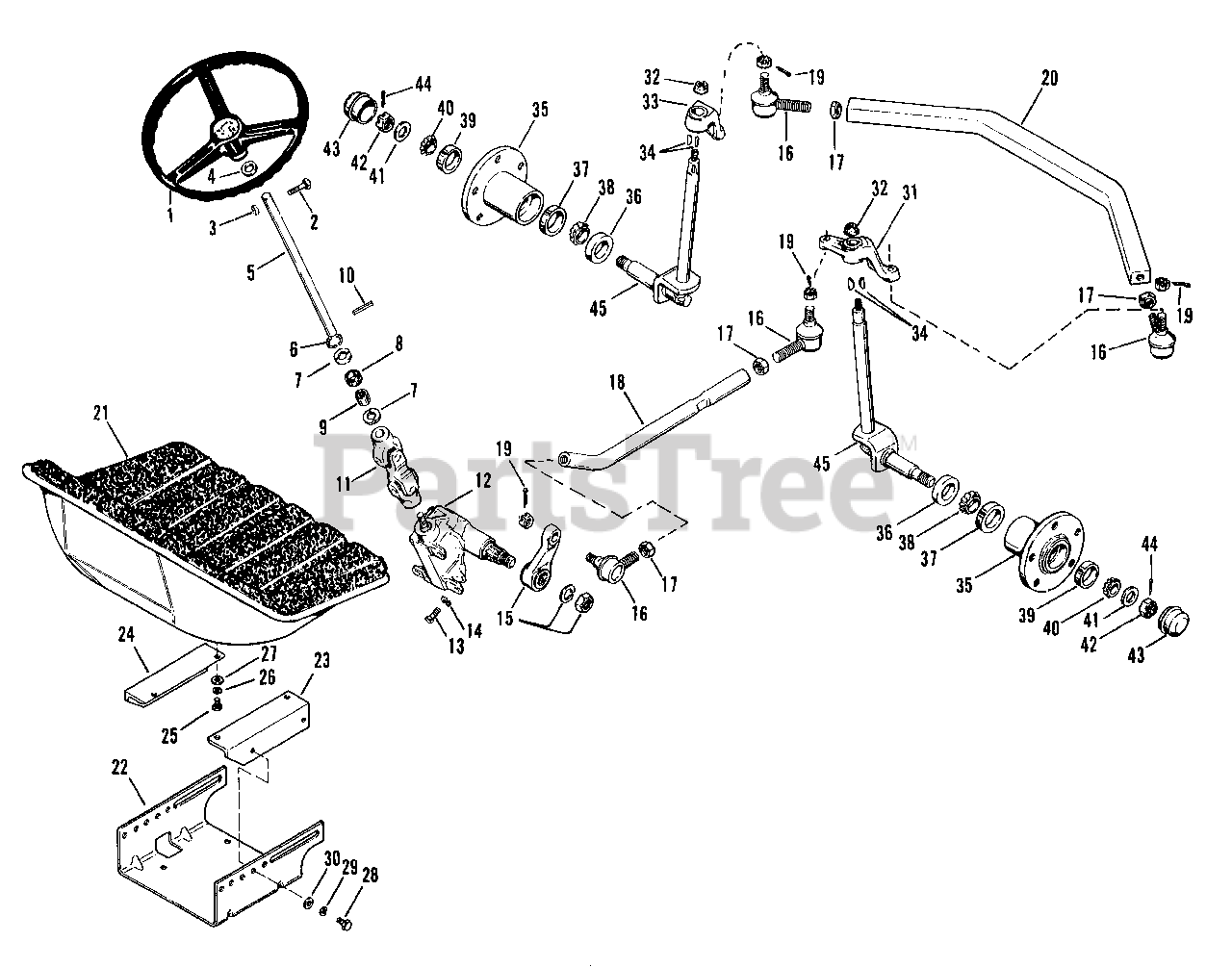

SEAT AND STEERING SYSTEM Parts Diagram

  • Title

1

Simplicity 2171196

Steering Wheel

$

$

Not available

2

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4" lg.

$

$

Not available

3

Simplicity 2717511

Hex Nut, Lock, 5/16"-18

$

$

Not available

4

Simplicity 172266

Washer

$

$

Not available

5

Simplicity 171532

Steering Shaft

$

$

Not available

6

Simplicity 2157286

Retaining Ring

$

$

Not available

7

Simplicity 2101022

Thrust Washer

$

$

Not available

8

Simplicity 173179

Roller Bearing

$

$

Not available

9

Simplicity 2171597SM

Needle Bearing

$28.99

$

In Stock, only 1 left!

0

10

Simplicity 723018

Roll Pin, 3/8"x 1-1/4" lg.

$

$

Not available

11

Simplicity 173500

"U" Joint

$

$

Not available

12

Simplicity 171557

Steering Gear

$

$

Not available

13

Simplicity 2715136

Hex Capscrew, 7/16"-14 x 1" lg.

$

$

Not available

14

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

15

Simplicity 172196

Pitman Arm

$

$

Not available

16

Simplicity 2172499SM

Ball Joint

$

$

Not available

17

Simplicity 172508

Hex Nut, Jam

$

$

Not available

18

Simplicity 171509

Drag Link

$

$

Not available

19

Simplicity 2722006

Cotter Pin

$

$

Not available

20

Simplicity 173413

Tie Rod

$

$

Not available

21

Simplicity 1686712SM

Seat

$517.99

$

Usually ships in 2-12 days

0

22

Simplicity 173298

Support

$

$

Not available

23

Simplicity 173299

Seat Bracket, R.H.

$

$

Not available

24

Simplicity 173300

Seat Bracket, L.H.

$

$

Not available

25

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

26

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

27

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

28

Simplicity 2705011

Hex Capscrew, 3/8"-16 x 5/8" lg.

$

$

Not available

29

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

30

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

31

Simplicity 171528

Steering Arm, R.H.

$

$

Not available

32

Simplicity 2172887

Lock Nut, Washer Base

$

$

Not available

33

Simplicity 171527

Steering Arm, L.H.

$

$

Not available

34

Simplicity 2725504

Key

$

$

Not available

35

Simplicity 168105

Hub Assembly

$

$

Not available

36

Simplicity 2168108SM

Seal

$

$

Not available

37

Simplicity 2170836SM

Bearing Cup
(Superseded to 5020883SM)

$9.49

$

In Stock, Qty 5

0

38

Simplicity 2170835SM

Bearing Cone

$

$

Not available

39

Simplicity 2154393SM

Bearing Cup

$33.99

$

In Stock, only 3 left!

0

40

Simplicity 2154486SM

Bearing Cone

$51.99

$

In Stock, Qty 5

0

41

Simplicity 2168111SM

Thrust Washer

$7.49

$

Usually ships in 2-12 days

0

42

Simplicity 717537

Slotted Nut

$

$

Not available

43

Simplicity 2154487SM

Grease Cap
(Superseded to 2154487YP)

$13.99

$

In Stock, Qty 14

0

44

Simplicity 2722018

Cotter Pin

$

$

Not available

45

Simplicity 168096

Spindle Assembly

$

$

Not available
