616 (990415) - Simplicity Yeoman Lawn Tractor Transmission Group Parts Diagram

Yeoman Lawn Tractor

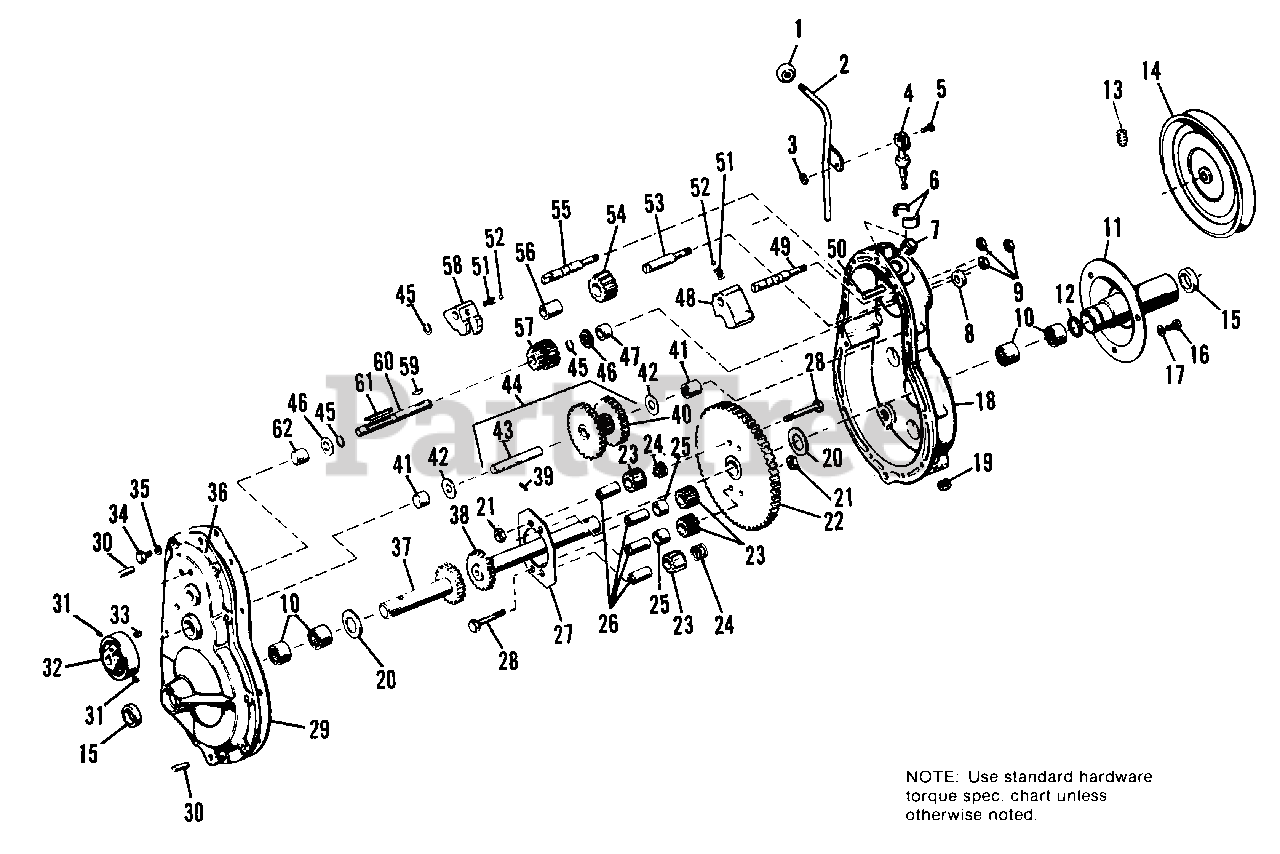

Transmission Group Parts Diagram

  • Title

1

Simplicity 1729255SM

KNOB

$12.99

$

In Stock, only 1 left!

0

2

Simplicity 162046

LEVER ASSY., Shift

$

$

Not available

3

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

4

Simplicity 2156031

ROD ASSY., Shift

$

$

Not available

5

Simplicity 2823341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

6

Simplicity 2101042SM

BUSHING, Half

$

$

Not available

7

Simplicity 2830676SM

PLUG, Pipe

$

$

Not available

8

Simplicity 2156084SM

SEAL, Oil

$16.99

$

Usually ships in 2-12 days

0

9

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

10

Simplicity 2105195SM

BEARING, Roller

$34.99

$

Usually ships in 2-12 days

0

11

Simplicity 156096

HOUSING ASSY., Axle

$

$

Not available

12

Simplicity 2156099SM

SEAL, Oil

$3.49

$

In Stock, only 1 left!

0

13

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8

$

$

Not available

14

Simplicity 2156119SM

PULLEY

$112.99

$

Usually ships in 2-12 days

0

15

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, only 4 left!

0

16

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

18

Simplicity 156017

CASE ASSY., Gear

$

$

Not available

19

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

20

Simplicity 2105083

WASHER

$

$

Not available

21

Simplicity 1930645SM

LOCKWASHER, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1663715SM

GEAR ASSY., Drive

$

$

Not available

23

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

24

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 8

0

25

Simplicity 2121084SM

SPACER, Diff.

$12.99

$

Usually ships in 2-12 days

0

26

Simplicity 2121083SM

SPINDLE, Diff.

$13.99

$

In Stock, only 1 left!

0

27

Simplicity 156002

PLATE, Diff.

$

$

Not available

28

Simplicity 2821972

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

29

Simplicity 2156103SM

GASKET

$22.99

$

Usually ships in 2-12 days

0

30

Simplicity 2818113

PIN, Roll, 3/8 x 1

$

$

Not available

31

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

32

Simplicity 2165067SM

DRUM, Brake

$27.99

$

Usually ships in 2-12 days

0

33

Simplicity 2830669

KEY

$

$

Not available

34

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

35

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 156018

COVER ASSY., Gear Case

$

$

Not available

37

Simplicity 156104

SHAFT ASSY., Axle, L.H.

$

$

Not available

38

Simplicity 156100

SHAFT ASSY., Axle, R.H.

$

$

Not available

39

Simplicity 2156292

PIN, Dowel

$

$

Not available

40

Simplicity 2156090

GEAR ASSY., Cluster

$

$

Not available

41

Simplicity 2156073SM

BEARING, Roller

$11.99

$

Usually ships in 2-12 days

0

42

Simplicity 2156089

WASHER

$

$

Not available

43

Simplicity 2156290SM

SHAFT, Brake

$

$

Not available

44

Simplicity 2156290SM

GEAR ASSY., Cluster

$

$

Not available

45

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

46

Simplicity 2156085

WASHER

$

$

Not available

47

Simplicity 2156072SM

BEARING, Roller

$24.99

$

In Stock, only 1 left!

0

48

Simplicity 156080

FORK, Shift I & II

$

$

Not available

49

Simplicity 2171372SM

SHAFT, Shift, Hi-Lo

$96.99

$

Usually ships in 2-12 days

0

50

Simplicity 2156308SM

PIN ASSY., Roll

$9.49

$

Usually ships in 2-12 days

0

51

Simplicity 2154323SM

SPRING

$30.99

$

Usually ships in 2-12 days

0

52

Simplicity 2154262

BALL, Shift Lock

$

$

Not available

53

Simplicity 156081

SHAFT, Pinion, Reverse

$

$

Not available

54

Simplicity 1650625SM

PINION, Reverse

$63.99

$

Usually ships in 2-12 days

0

55

Simplicity 156077

SHAFT, Shift, Reverse

$

$

Not available

56

Simplicity 2156082

BEARING, Roller

$

$

Not available

57

Simplicity 2156087SM

PINION ASSY., Hi-Lo

$108.99

$

Usually ships in 2-12 days

0

58

Simplicity 1713-63

FORK, Shift, Reverse

$

$

Not available

59

Simplicity 2830670SM

KEY

$2.49

$

Usually ships in 2-12 days

0

60

Simplicity 1560-83

SHAFT, Pulley

$

$

Not available

61

Simplicity 2156086SM

KEY

$8.49

$

In Stock, only 2 left!

0

62

Simplicity 156102

BEARING, Roller

$

$

Not available
