616 RT (1693704) - Simplicity Rear-Tine Tiller, 6hp Hood, Drag Stake & Tine Group Parts Diagram

Rear-Tine Tiller, 6hp

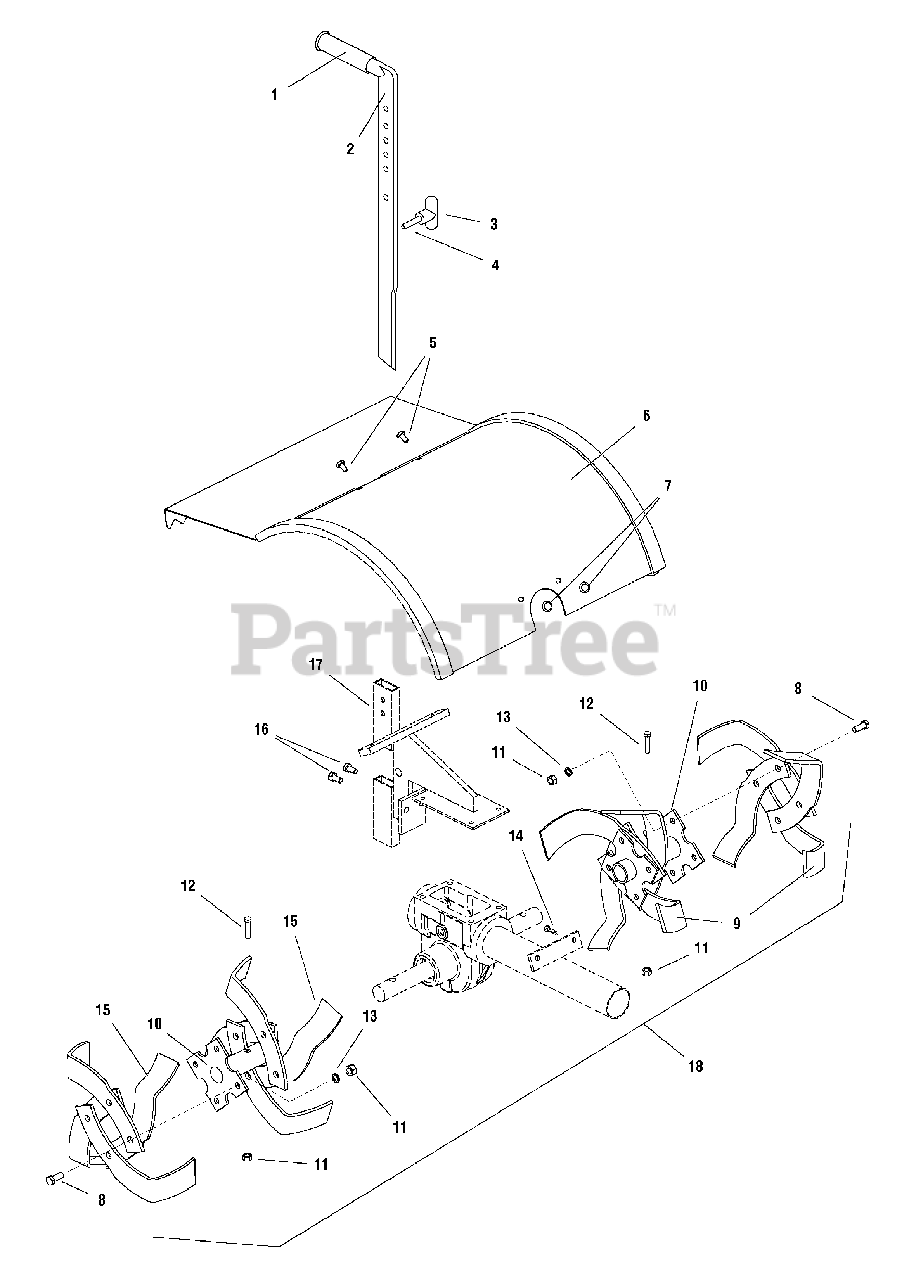

Hood, Drag Stake & Tine Group Parts Diagram

  • Title

1

Simplicity 1719038SM

GRIP, Handle, Black

$14.99

$

Usually ships in 2-12 days

0

2

Simplicity 1716745SM

LEVER, Drag Stake, Walk-Behind Tiller

$

$

Not available

3

Simplicity 1716743SM

KNOB, T Handle, Drag Stake

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716742SM

PIN, DETENT, 5/16"- 18 x 1"

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921958SM

CAPSCREW, 1/4"- 20 x 1/2" G5
(Superseded to 703818)

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1721515SM

HOOD

$

$

Not available

7

Simplicity 1935048SM

NUT, Hex Flange 5/16"- 18 Two, Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1921210SM

CAPSCREW, 3/8"- 16 x 1" G5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1716739SM

TINE BLADE, Left Side

$35.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716741SM

HOLDER, Tine Blade LH+RH

$70.99

$

Usually ships in 2-12 days

0

11

Simplicity 1916950SM

NUT, Hex 3/8"- 16NC
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1921971SM

CAPSCREW, 3/8"- 16 x 1-3/4" G5
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, Spring 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1921333SM

CAPSCREW, 5/16"- 18 x 1" G5
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1716737SM

TINE BLADE, Right Side

$24.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716701SM

CAPSCREW, Hex Flange Head, 5/16"- 18 x 1/2"

$

$

Not available

17

Simplicity 1721511SM

BRACKET, Depth Regulator RT

$67.99

$

Usually ships in 2-12 days

0

18

Simplicity 1716749SM

REPLACEMENT KIT, Tine Blade Holder

$244.99

$

Usually ships in 2-12 days

0
