61620 - Lawn-Boy 16" String Trimmer (SN: 003900001 - 003999999) (1993) HANDLE ASSEMBLY MODEL NO. 61620 Parts Diagram

16" String Trimmer

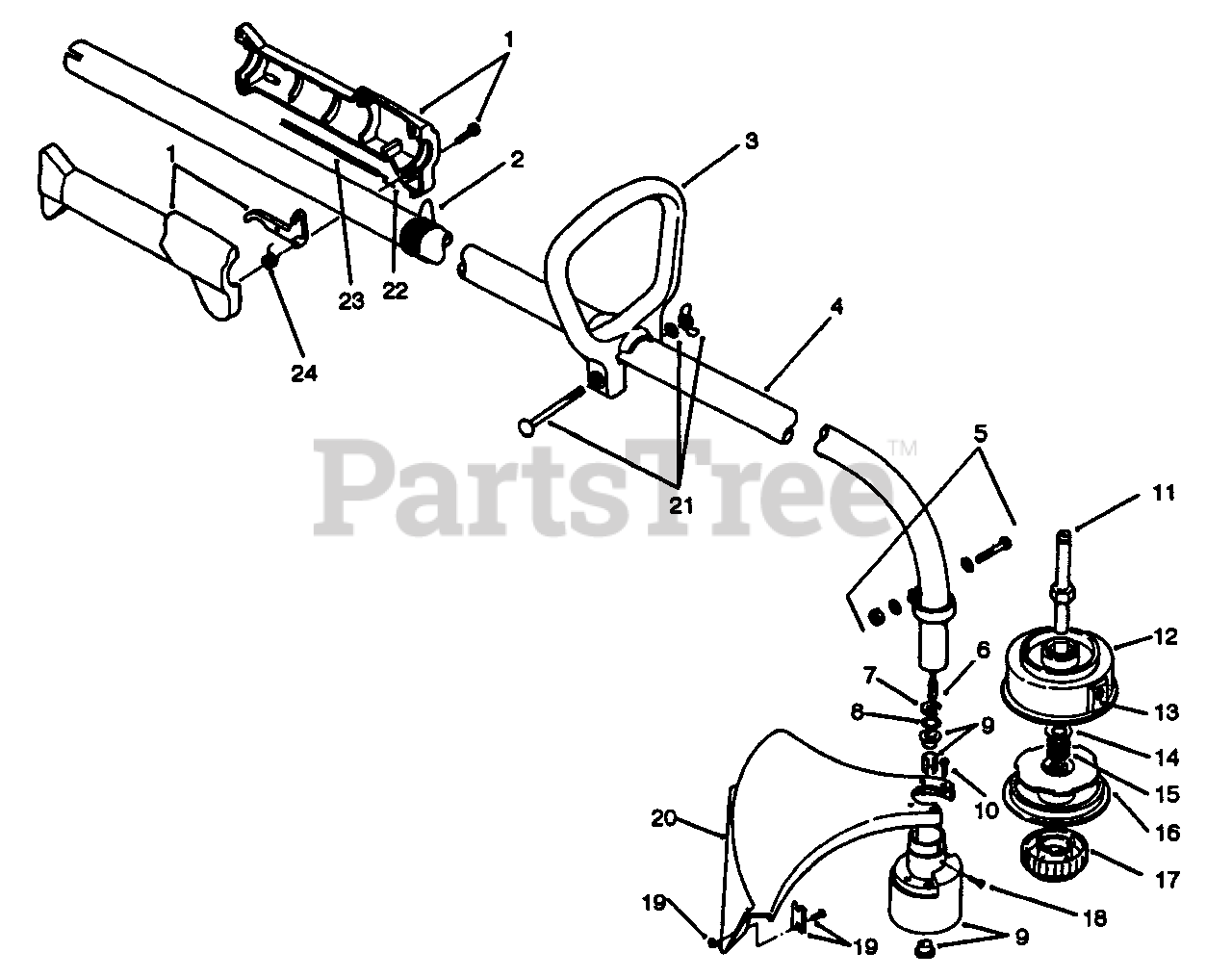

HANDLE ASSEMBLY MODEL NO. 61620 Parts Diagram

  • Title

1

Lawn-Boy 92-3224

Assy.-Throttle & Trigger (Incl. 6 Screws)

$

$

Not available

2

Lawn-Boy 610327

Clip-Shoulder Strap

$

$

Not available

3

Lawn-Boy 145819

D-Handle

$

$

Not available

4

Lawn-Boy 92-3286

Assy.-Drive Shaft Housing

$188.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 153597

Assembly-Lower Clamp

$

$

Not available

6

Lawn-Boy 682064

Shaft-Flexible Drive
(Superseded to 92-3236)

$97.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 145570

Ring-Retaining

$11.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 145567

Washer

$

$

Not available

9

Lawn-Boy 153312

Assy.-Bushing Housing

$

$

Not available

10

Lawn-Boy 180531

Assy.-Guard Mount Screw

$2.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

12

Lawn-Boy 153619

Assy. Outer Spool & Eyelet

$49.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 145566

Eyelet

$16.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 610660

Retainer

$4.49

$

In Stock, Qty 19

0

15

Lawn-Boy 610317

Spring

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 610318

Reel-Inner

$39.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 682069

Assembly-Bump Head
(Superseded to 153066)

$

$

Not available

18

Lawn-Boy 145569

Screw-Anti-Rotation

$

$

Not available

19

Lawn-Boy 682061

Assembly-Blade (Incl. 2 screws & 2 Nuts)

$22.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 683274

Assembly-Guard & Blade (Incl. Ref. No.19)

$

$

Not available

21

Lawn-Boy 153523

Assy.-Hardware, D-Handle

$

$

Not available

22

Lawn-Boy 610315

Cable-Throttle

$

$

Not available

23

Lawn-Boy 614144

Assy.-Throttle Cable
(Superseded to 181582)

$

$

Not available

24

Lawn-Boy 610314

Spring-Throttle Trigger

$10.99

$

Usually ships in 3-6 days

0

Lawn-Boy 610375

Monoflail Cutting Line, 50 ft.

Note: Not Illustrated

$

$

Not available

Lawn-Boy 683062

Assy.-Spool & Line, 30 ft.
(Superseded to 88192)

Note: Not Illustrated

$27.99

$

In Stock, only 3 left!

0

Lawn-Boy 682075

Strap-Shoulder

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3226

Lawn-Boy 2 Cycle Oil (Toro 89879)

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 683223

Assembly-Cutting Head (Incl. Rcf. No.5, & 7-20)
(Superseded to 683059)

Note: Not Illustrated

$

$

Not available
