61653 - Lawn-Boy 18" String Trimmer (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY MODEL NO. 61653 Parts Diagram

18" String Trimmer

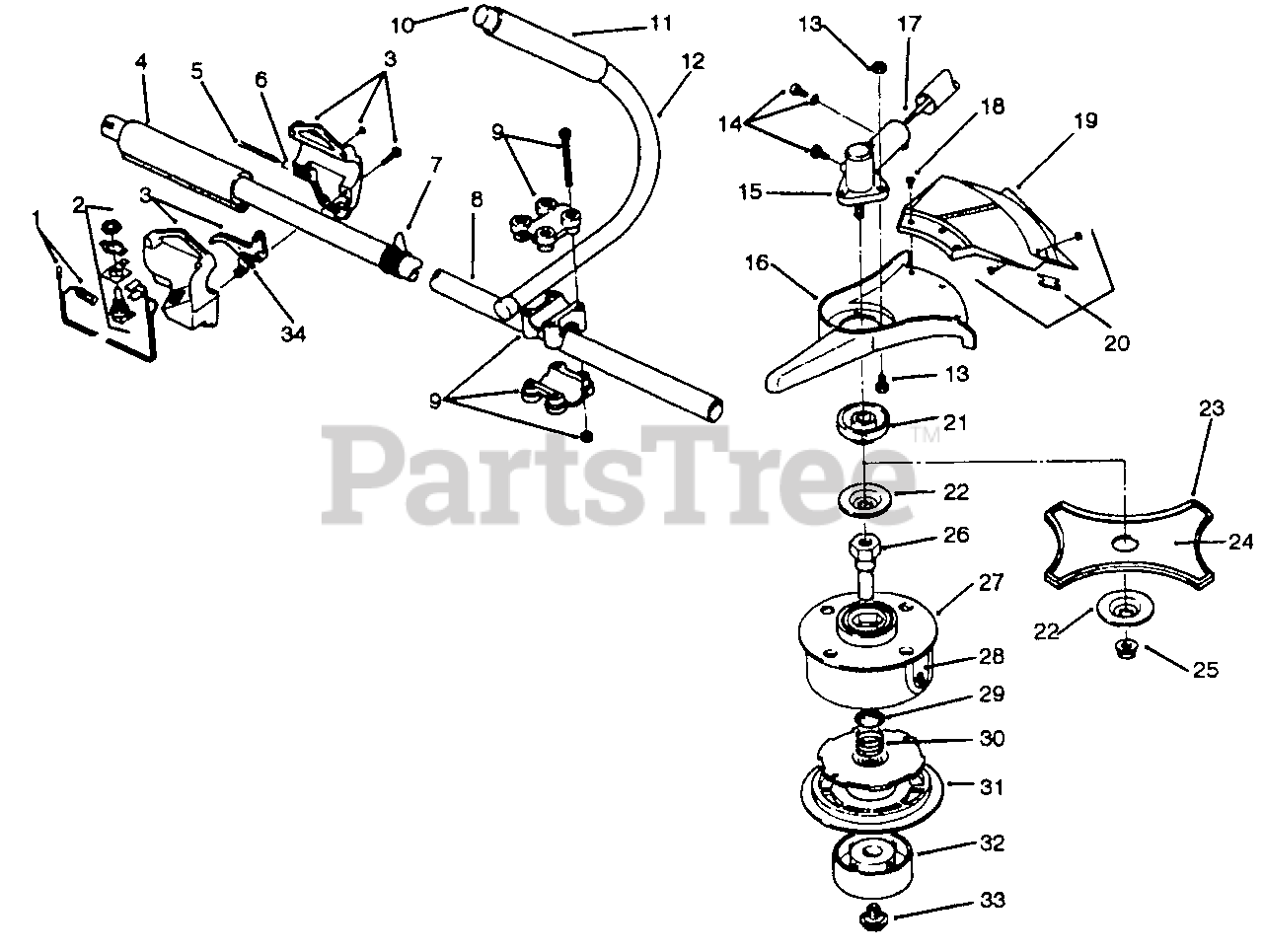

HANDLE ASSEMBLY MODEL NO. 61653 Parts Diagram

  • Title

1

Lawn-Boy 92-3222

Assembly-Wire Lead

$

$

Not available

2

Lawn-Boy 682035

Assembly-Switch

$

$

Not available

3

Lawn-Boy 92-3233

Assembly-Throttle Trigger

$

$

Not available

4

Lawn-Boy 614143

Grip-Handle, Main

$

$

Not available

5

Lawn-Boy 614144

Assy.-Throttle Cable
(Superseded to 181582)

$

$

Not available

6

Lawn-Boy 610315

Cable-Throttle

$

$

Not available

7

Lawn-Boy 610327

Clamp-Shoulder Strap

$

$

Not available

8

Lawn-Boy 92-3287

Assy.-Drive Shaft

$196.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 683295

Assy.-Handle Bracket (Incl. 4 Screws 7 4 Nuts)

$62.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 612021

Closure-Tube

$

$

Not available

11

Lawn-Boy 612831

Grip

$24.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-3235

Assy.-J-Handle (Incl. Ref. No. 10 & 11)

$

$

Not available

13

Lawn-Boy 614204

Screws-Guard Mount
(Superseded to 147539)

$

$

Not available

14

Lawn-Boy 684502

Screws & Grease Plug

$

$

Not available

15

Lawn-Boy 684501

Assembly-Gear Box
(Superseded to 147488)

$

$

Not available

16

Lawn-Boy 147492

Mount-Guard

$

$

Not available

17

Lawn-Boy 92-3236

Shaft-Flexible Drive

$97.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 683304

Screws-Guard Mounting

$

$

Not available

19

Lawn-Boy 92-3237

Assy.-Guard & Blade (Incl. Ref. No. 20)

$

$

Not available

20

Lawn-Boy 682061

Assembly-Blade (Incl. 2 Screws & 2 Nuts)

$22.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 614200

Driver-Blade
(Superseded to 147489)

$37.92

$

In Stock, only 1 left!

0

22

Lawn-Boy 614201

Washer-Lower Retaining
(Superseded to 147490)

$14.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 613231

Cover-Blade

$

$

Not available

24

Lawn-Boy 612031

Blade (Incl. Ref. No. 23)

$

$

Not available

25

Lawn-Boy 613221

Nut-Lock

$

$

Not available

26

Lawn-Boy 612483

Shaft-Spool

$40.16

$

In Stock, only 1 left!

0

27

Lawn-Boy 147494

Assy.-Outer Spool & Eyelet
(Superseded to 683301)

$

$

Not available

28

Lawn-Boy 145566

Eyelet

$16.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 612026

Retainer (10 Pack)

$

$

Not available

30

Lawn-Boy 610636

Spring

$14.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 147495

Reel-Inner

$

$

Not available

32

Lawn-Boy 147496

Assy.-Bump Head
(Superseded to 180814)

$

$

Not available

33

Lawn-Boy 612486

Assy.-Bump Head Knob
(Superseded to 180814)

$

$

Not available

34

Lawn-Boy 610314

Spring-Throttle Trigger

$10.99

$

Usually ships in 3-6 days

0

Lawn-Boy 612454

Monoflail Cutting Line, 50 ft.

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3288

Spool & Line, 40 ft. (Dual)
(Superseded to 92-3251)

Note: Not Illustrated

$53.99

$

Usually ships in 3-6 days

0

Lawn-Boy 682075

Strap-Shoulder

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3226

Lawn-Boy 2 Cycle Oil

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 613226

Rod-Locking Tool

Note: Not Illustrated

$

$

Not available

Lawn-Boy 147498

Assembly-Cutting Head (Incl. Ref. No.26-33)

Note: Not Illustrated

$

$

Not available
