61A777-0102-J1 - Briggs & Stratton Vertical Engine Fuel Supply Group Parts Diagram

Vertical Engine

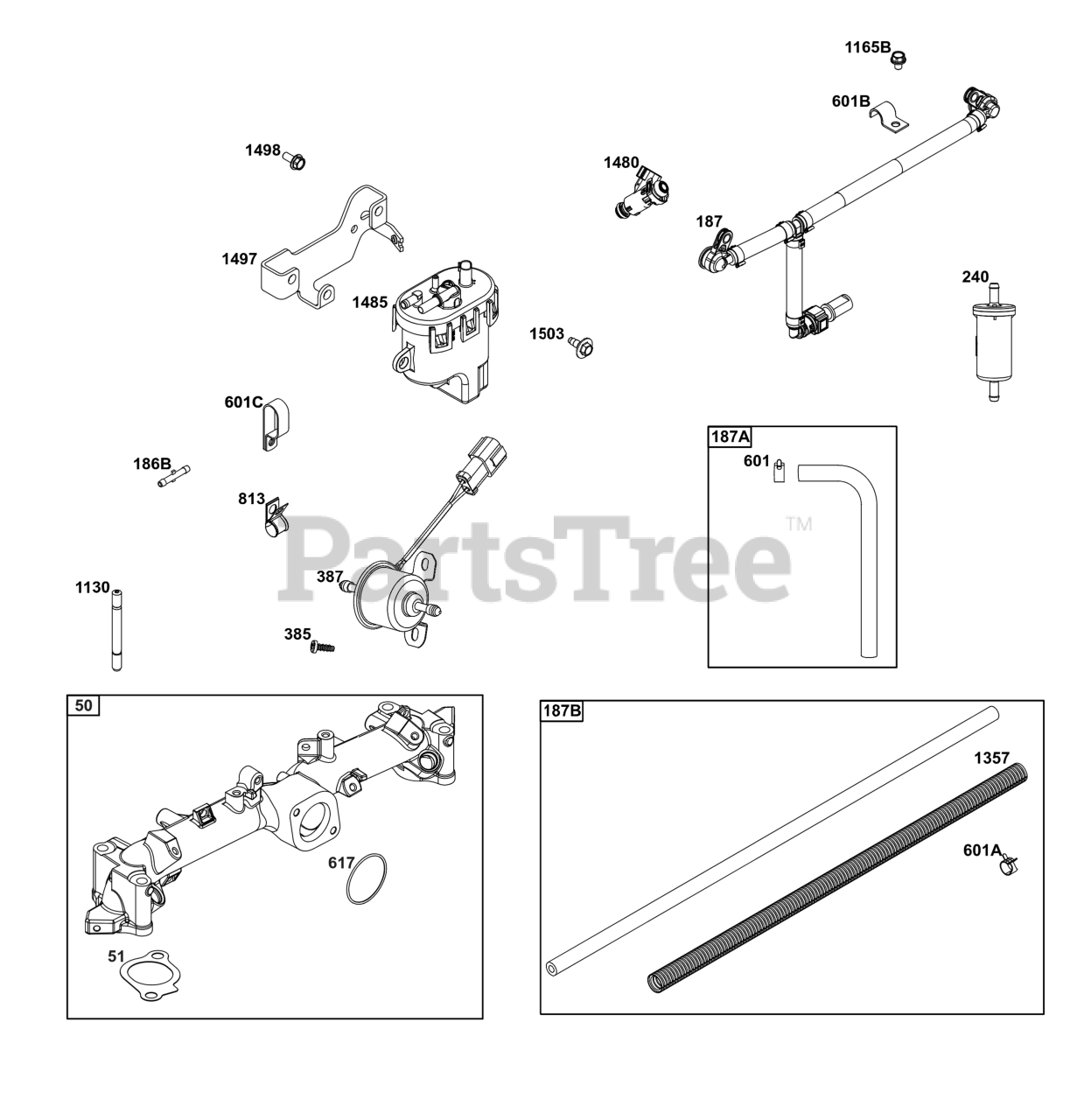

Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

186B

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 846500

LINE, Fuel

$179.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 84006983

LINE, Fuel

$

$

Currently unavailable

187B

Briggs & Stratton 846823

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 846250

SCREW

Note: (Fuel Pump)

$4.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

PUMP, Fuel

$146.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, only 3 left!

0

601A

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, only 3 left!

0

601B

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

601C

Briggs & Stratton 594364

CLIP

$6.99

$

Usually ships in 2-12 days

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

813

CLAMP

$

$

Not available

1130

STUD

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1165B

Briggs & Stratton 843345

SCREW

Note: (Clamp)

$5.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 846822

SLEEVE, Fuel Line

$11.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$79.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 84006568

MODULE, Fuel

$371.99

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 846486

BRACKET, Fuel Module

$198.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.49

$

In Stock, Qty 13

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module)

$3.99

$

Usually ships in 2-12 days

0
