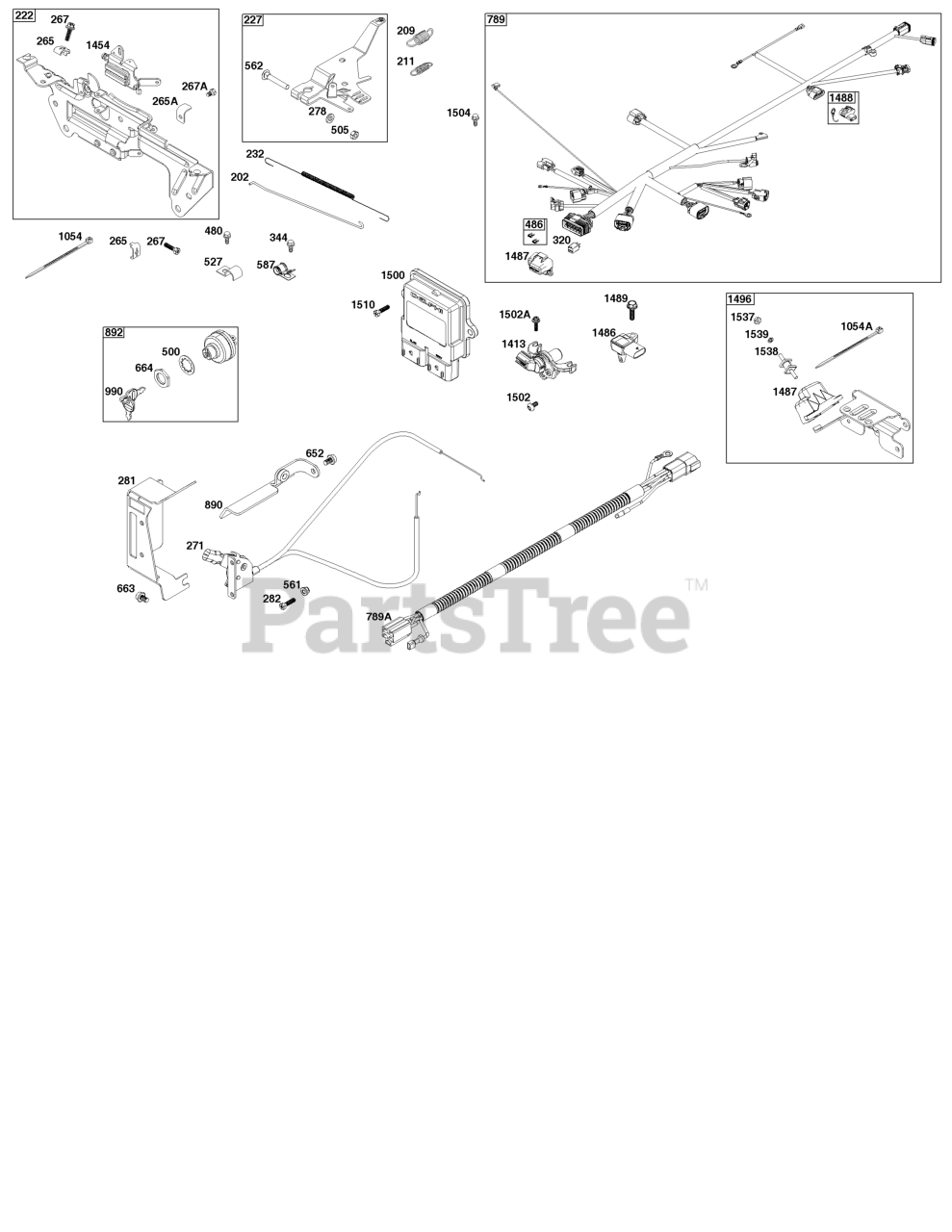

61E377-0023-J1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

202

Briggs & Stratton 846825

Link-Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 843561

Spring-Governor

$19.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 809875

Spring-Governed Idle

$4.99

$

In Stock, only 1 left!

0

222

Briggs & Stratton 846818

Bracket-Control

$174.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 809984

Lever-Governor Control

$29.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 843248

Spring-Governor Link

$11.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 10

0

265A

Briggs & Stratton 841673

Clamp-Casing

$14.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.99

$

In Stock, only 1 left!

0

267A

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 1 left!

0

271

Briggs & Stratton 692541

Lever-Control

$43.99

$

In Stock, Qty 8

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 690742

Panel-Control

$67.99

$

Usually ships in 2-12 days

0

282

Briggs & Stratton 841552

SCREW

Note: (Control Lever) (M5x20mm)

$3.99

$

In Stock, only 1 left!

0

320

Briggs & Stratton 593902

RELAY(S)

$48.99

$

Usually ships in 2-12 days

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

486

Briggs & Stratton 593901

FUSE

$13.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 595428

SWITCH, Key

Note: (Key Switch)

$40.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 844752

Nut

Note: (Governor Control Lever)

$3.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

561

Briggs & Stratton 690713

Nut
(Superseded to 806447)

Note: (Control Lever)

$

$

Not available

562

Briggs & Stratton 843344

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 846866

Clamp-Cable

$5.49

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 841233

SCREW

Note: (Support Bracket) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

663

Briggs & Stratton 692056

Screw

Note: (Control Lever) (M8x14mm)

$5.99

$

In Stock, only 4 left!

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 847408

Harness-Wiring

$628.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 846776

Harness-Wiring

$92.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 847155

Bracket-Support

$153.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 995012

IGNITION SWITCH KIT
(Superseded to 692318)

$34.99

$

In Stock, Qty 11

0

990

Briggs & Stratton 691959

SET, Key

$8.49

$

In Stock, only 3 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: (Clear, Nylon)

$4.49

$

Usually ships in 2-12 days

0

1054A

Briggs & Stratton 861206

Tie-Cable

$4.99

$

In Stock, only 1 left!

0

1413

Briggs & Stratton 846457

SENSOR, Speed
(Superseded to 84006668)

$64.99

$

In Stock, only 2 left!

0

1454

Briggs & Stratton 845807

Slider-Governor

$18.99

$

In Stock, only 2 left!

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$141.99

$

Usually ships in 2-12 days

0

1487

Briggs & Stratton 847334

COVER, Fuse

$38.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$13.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 807435

SCREW

Note: (TEMP/MAP Sensor) (M6x20mm)

$3.99

$

Usually ships in 2-12 days

0

1496

Briggs & Stratton 847337

COVER, Fuse

$132.99

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 846484

MODULE, Electronic Control

Note: (Not Programmed)

$288.99

$

Usually ships in 2-12 days

0

1502

Briggs & Stratton 846459

SCREW

Note: (Speed Sensor) (M5x10mm)

$3.99

$

Usually ships in 2-12 days

0

1502A

Briggs & Stratton 846868

SCREW

Note: (Speed Sensor) (M4x18mm)

$4.49

$

Usually ships in 2-12 days

0

1504

Briggs & Stratton 841233

SCREW

Note: (Fuse Cover) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

1510

Briggs & Stratton 841552

SCREW

Note: (Electronic Control Module) (M5x20mm)

$3.99

$

In Stock, only 1 left!

0

1537

Briggs & Stratton 703460

Nut

Note: (Fuse Cover)

$3.99

$

In Stock, Qty 7

0

1538

Briggs & Stratton 847332

STUD

Note: (Fuse Cover)

$25.99

$

Usually ships in 2-12 days

0

1539

Briggs & Stratton 847333

WASHER

Note: (Fuse Cover)

$3.99

$

Usually ships in 2-12 days

0
