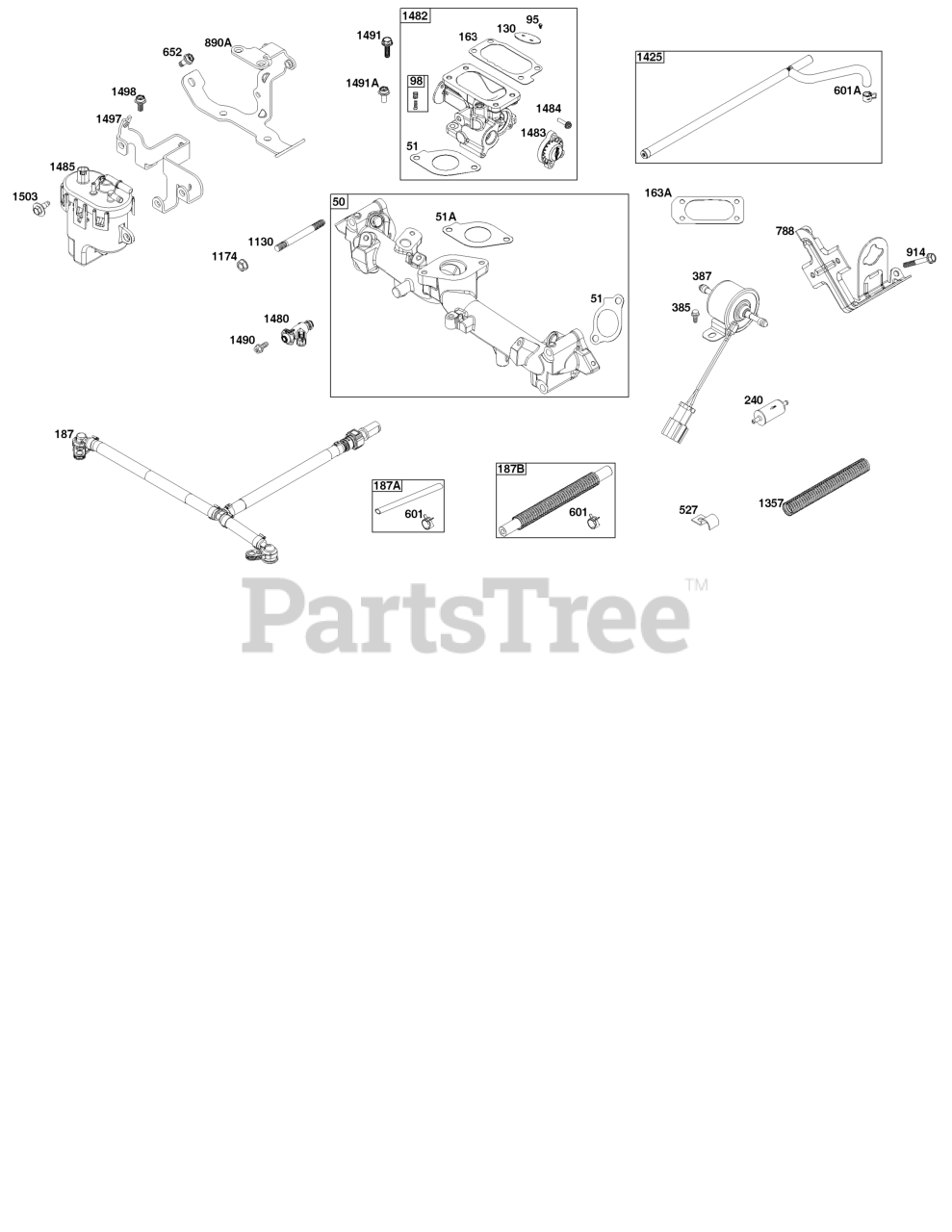

61E377-0034-J1 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 846477

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 846476

VALVE, Throttle

$4.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, only 4 left!

0

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$5.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 846475

LINE, Fuel

$172.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 16

0

187B

Briggs & Stratton 846823

Line-Fuel

Note: (Cut To Required Length)

$24.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 841233

SCREW

Note: (Fuel Pump) (M6x10mm)

$3.49

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

Pump-Fuel

$146.99

$

In Stock, only 2 left!

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, only 3 left!

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket) (M6x14mm)

$3.49

$

In Stock, Qty 13

0

788

Briggs & Stratton 847087

Bracket-Fuel Pump

$71.99

$

In Stock, only 1 left!

0

890A

Briggs & Stratton 846506

BRACKET, Support

$101.99

$

Usually ships in 2-12 days

0

914

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1130

STUD

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1174

NUT

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1357

Briggs & Stratton 846822

Sleeve-Fuel Line

$11.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 847085

Hose-Purge Line

$65.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$79.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 847939

BODY, Throttle

$359.99

$

Usually ships in 2-12 days

0

1483

Briggs & Stratton 593895

COVER, Dust

$8.99

$

Usually ships in 2-12 days

0

1484

Briggs & Stratton 847169

SCREW

Note: (Dust Cover)

$3.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector) (M6x14mm)

$3.49

$

In Stock, Qty 13

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1491A

Briggs & Stratton 807084

SCREW

Note: (Throttle Body) (M6x14mm)

$3.49

$

In Stock, Qty 13

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$106.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket) (M6x14mm)

$3.49

$

In Stock, Qty 13

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

Usually ships in 2-12 days

0
