61E377-0059-J1 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

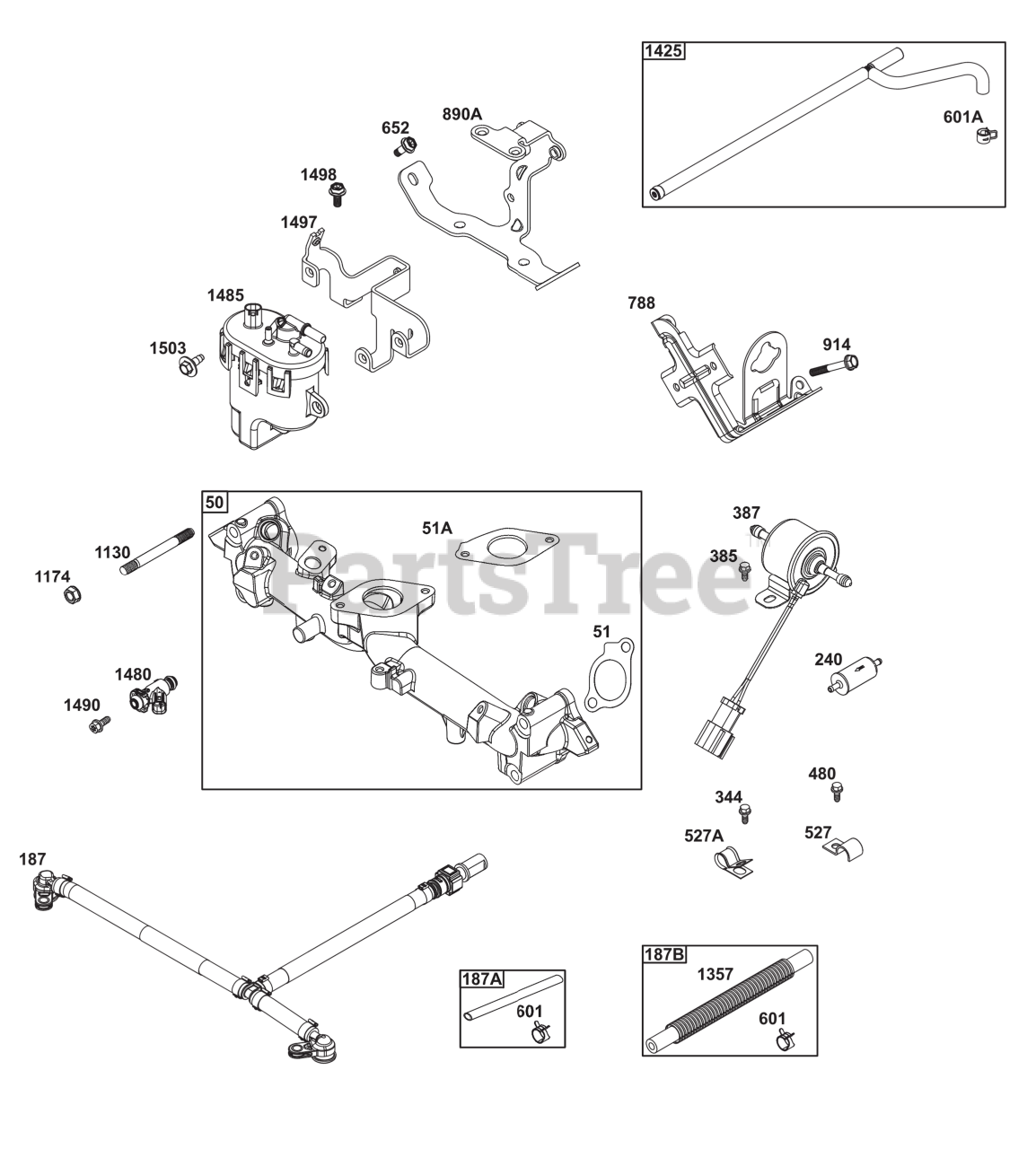

Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

187

Briggs & Stratton 846475

LINE, Fuel

$189.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 14

0

187B

Briggs & Stratton 846823

LINE, Fuel

Note: (Cut To Required Length)

$26.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp)

$3.99

$

In Stock, Qty 14

0

385

Briggs & Stratton 841233

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, Qty 14

0

387

Briggs & Stratton 846824

PUMP, Fuel

$160.99

$

In Stock, only 3 left!

0

480

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

527

CLAMP, Tube

Note: (Part information located in Controls Group.)

$

$

Not available

527A

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.99

$

In Stock, only 2 left!

0

788

Briggs & Stratton 847087

BRACKET, Fuel Pump

$75.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 846506

BRACKET, Support

$106.99

$

Usually ships in 2-12 days

0

914

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1130

STUD

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1174

NUT

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1357

Briggs & Stratton 846822

SLEEVE, Fuel Line

$12.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 847085

TUBE, Vent

$72.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$452.99

$

In Stock, only 2 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$111.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

In Stock, Qty 9

0
