61E477-0003-J1 - Briggs & Stratton Horizontal Engine Regulator, Alternator, Wires, ECU Parts Diagram

Horizontal Engine

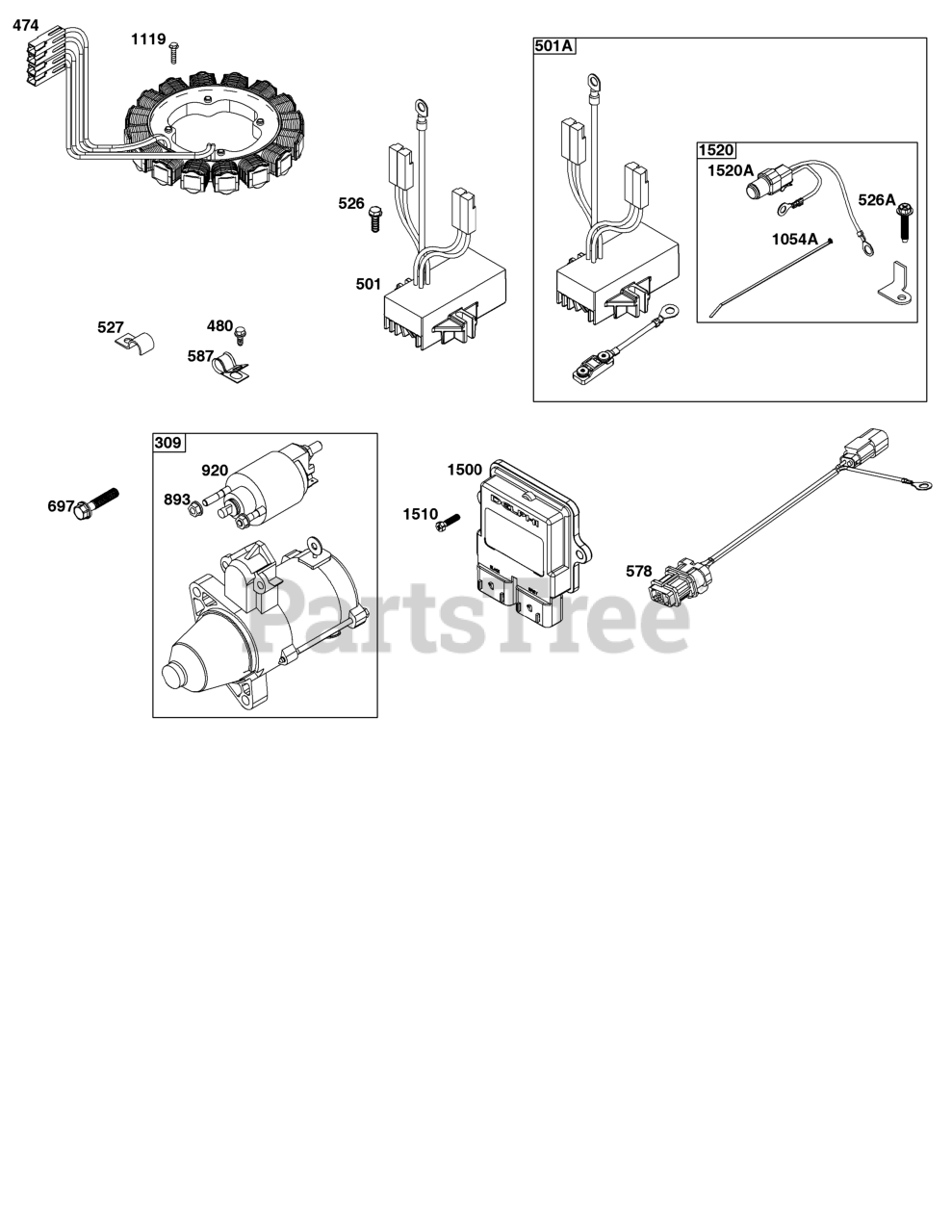

Regulator, Alternator, Wires, ECU Parts Diagram

  • Title

309

Briggs & Stratton 845760

Motor-Starter
(Superseded to 84008634)

$238.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 841178

ALTERNATOR

$255.99

$

Usually ships in 2-12 days

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

501

Briggs & Stratton 848220

REGULATOR
(Superseded to 848221)

Note: Used Before Code Date 17060100

$284.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 848221

REGULATOR
(Superseded to 84002239)

Note: Used After Code Date 17053100

$284.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 847149

SCREW

Note: (Regulator) (M6x32mm) Used After Code Date 16022900

$3.99

$

Usually ships in 2-12 days

0

526A

Briggs & Stratton 690717

Screw

Note: (Regulator) (M6x30mm) Used Before Code Date 16030100

$3.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 846423

Wire Assembly

$91.99

$

In Stock, only 1 left!

0

587

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

697

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (Drive Cap) (M8x38mm)

$7.49

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 846737

Solenoid-Starter
(Superseded to 847694)

$64.99

$

In Stock, only 3 left!

0

1054A

Briggs & Stratton 861206

Tie-Cable

Note: (Black, Nylon)

$4.99

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$4.49

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 846484

MODULE, Electronic Control

Note: (Not Programmed) (Not Programmed)

$288.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 841552

SCREW

Note: (Electronic Control Module) (M5x20mm)

$3.99

$

Usually ships in 2-12 days

0

1520

Briggs & Stratton 847148

CAPACITOR

$59.99

$

Usually ships in 2-12 days

0

1520A

Briggs & Stratton 847147

CAPACITOR

$41.99

$

Usually ships in 2-12 days

0
