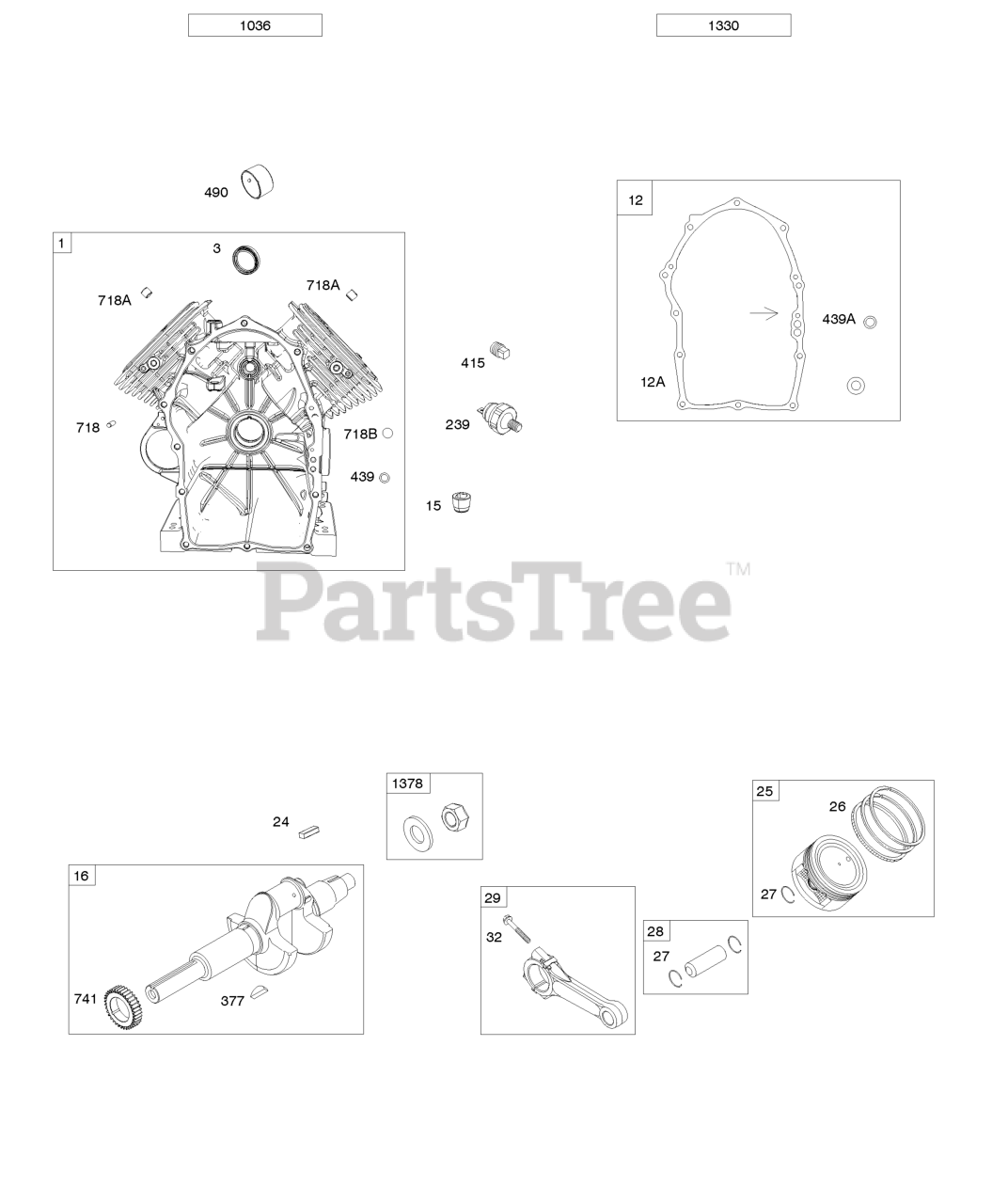

61E477-0006-J1 - Briggs & Stratton Horizontal Engine Cylinder, Crankshaft, Piston/Rings/Rod Parts Diagram

Horizontal Engine

Cylinder, Crankshaft, Piston/Rings/Rod Parts Diagram

  • Title

1

Briggs & Stratton 846429

CYLINDER ASSEMBLY
(Superseded to 848365)

$788.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 841596

SEAL, Oil

Note: (Magneto Side)

$18.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 846037

Gasket-Crankcase

Note: (Metal Core Gasket)

$67.99

$

In Stock, Qty 10

0

12A

Briggs & Stratton 843969

Gasket-Crankcase

Note: (Metal Core Gasket)

$67.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$6.49

$

In Stock, Qty 8

0

16

Briggs & Stratton 842268

Crankshaft

$613.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 796335

KEY, Flywheel

Note: (Steel)

$5.99

$

In Stock, Qty 7

0

25

Briggs & Stratton 842939

Piston Assembly

Note: (.020" Oversize)

$

$

Not available

25

Briggs & Stratton 841837

Piston Assembly

Note: (Standard)

$204.99

$

In Stock, Qty 7

0

26

Briggs & Stratton 841932

RING SET

Note: (.020" Oversize)

$

$

Not available

26

Briggs & Stratton 809972

RING SET

Note: (Standard)

$82.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 807351

LOCK, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807361

PIN, Piston

$28.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 841838

Rod-Connecting

$86.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 807363

SCREW

Note: (Connecting Rod)

$7.49

$

In Stock, only 2 left!

0

239

Briggs & Stratton 841281

Switch-Oil Pressure

$35.99

$

In Stock, only 2 left!

0

377

Briggs & Stratton 691639

KEY, Woodruff

$4.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 794903

PLUG

Note: (Oil Pressure Switch)

$5.99

$

In Stock, Qty 8

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly) (Cylinder)

$5.99

$

In Stock, Qty 20+

0

439A

Briggs & Stratton 846027

O Ring-Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$7.99

$

In Stock, only 1 left!

0

490

Briggs & Stratton 843433

Bearing-Magneto Side

$391.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

Note: (Cylinder)

$7.49

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 809508

PIN, Locating

Note: (Cylinder Head)

$6.49

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 845925

PIN, Locating

Note: (Cylinder)

$6.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 809432

GEAR, Timing

$46.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1330

Repair Manual

Note: (Not Available At This Printing)

$

$

Not available

1378

Briggs & Stratton 844795

Washer/Nut Set

Note: (Flywheel)

$16.99

$

Usually ships in 2-12 days

0
