61E477-0015-J1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

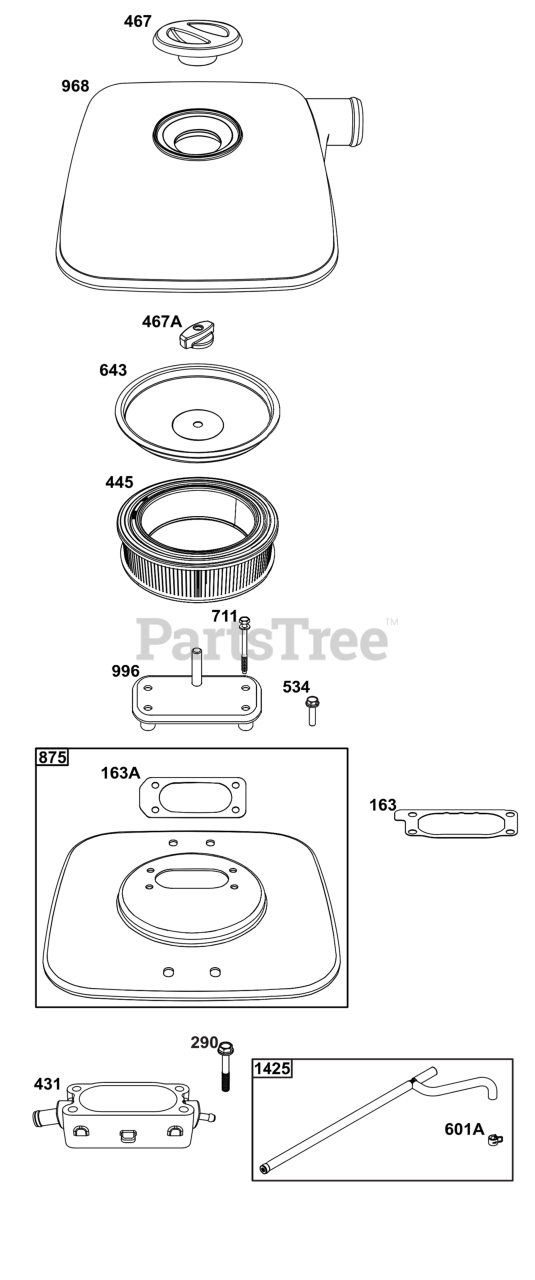

Air Cleaner Group Parts Diagram

  • Title

163

GASKET, Air Cleaner

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

163A

GASKET, Air Cleaner

Note: (Part information located in Throttle Body and Fuel Supply Group.)

$

$

Not available

290

Briggs & Stratton 807357

SCREW

Note: (Intake Elbow) (M6x40mm)

$4.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 846507

ELBOW, Intake

$90.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 692519

FILTER, A/C Cartridge

$21.99

$

In Stock, Qty 8

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

$18.99

$

In Stock, only 2 left!

0

467A

Briggs & Stratton 846432

KNOB, Air Cleaner Cover

$9.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner) (M8x18mm)

$3.99

$

In Stock, only 4 left!

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Filter

$24.99

$

In Stock, only 2 left!

0

711

Briggs & Stratton 806444

SCREW

Note: (Carburetor Shield) (M6x68mm)

$4.49

$

In Stock, only 1 left!

0

875

Briggs & Stratton 843118

BASE, Air Cleaner

$74.99

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 846323

COVER, Air Cleaner

$70.99

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

$39.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 846514

HOSE, Purge Line

$8.99

$

Usually ships in 2-12 days

0
