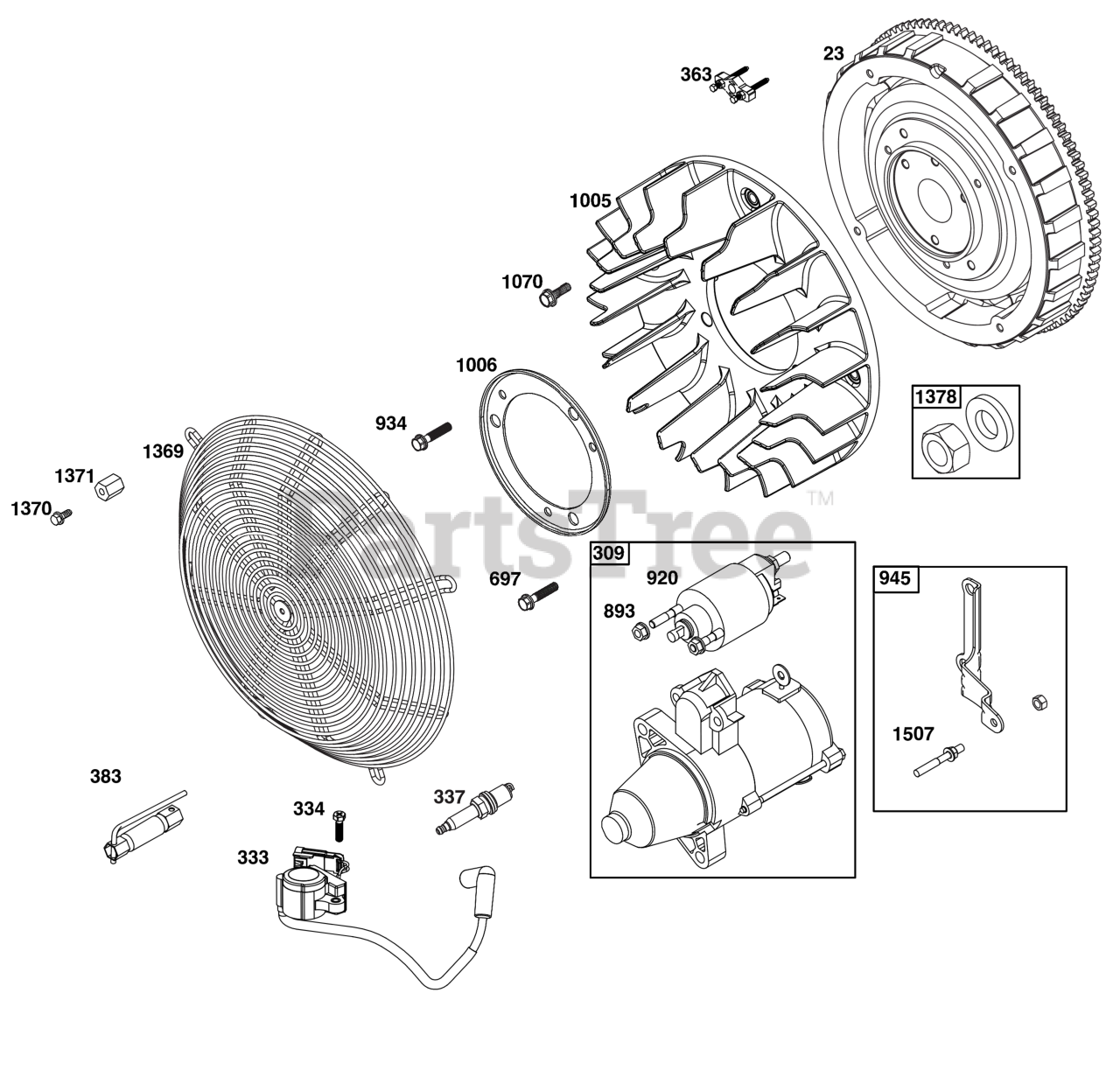

61E477-0015-J1 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 84006162

FLYWHEEL

$607.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 84006358

MOTOR, Starter
(Superseded to 84008634)

$238.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 84005190

ARMATURE, Magneto

$76.99

$

In Stock, Qty 7

0

334

Briggs & Stratton 841552

SCREW

Note: (Magneto Armature) (M5x20mm)

$3.99

$

In Stock, only 1 left!

0

337

PLUG, Spark

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 2 left!

0

383

WRENCH, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

697

Briggs & Stratton 690711

SCREW

Note: (Starter Motor) (Drive Cap) (M8x38mm)

$7.49

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

NUT

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 847694

SOLENOID, Starter
(Superseded to 84008635)

$64.99

$

In Stock, Qty 12

0

934

Briggs & Stratton 807421

SCREW

Note: (Fan Retainer)

$3.99

$

Usually ships in 2-12 days

0

945

Briggs & Stratton 84005980

BRACKET, STARTER MOTOR

$27.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 846995

FAN, Flywheel

$60.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 846495

RETAINER, Fan

$76.99

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 807435

SCREW

Note: (Flywheel Fan) (M6x20mm)

$3.99

$

Usually ships in 2-12 days

0

1369

Briggs & Stratton 842858

GUARD, Flywheel Fan

$89.99

$

In Stock, only 1 left!

0

1370

Briggs & Stratton 841233

SCREW

Note: (Flywheel Fan Guard) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

1371

Briggs & Stratton 841537

NUT

Note: (Flywheel Fan Guard)

$10.99

$

In Stock, only 3 left!

0

1378

Briggs & Stratton 844795

SET, Washer/Nut

Note: (Flywheel)

$16.99

$

Usually ships in 2-12 days

0

1507

Briggs & Stratton 846324

STUD

$14.99

$

Usually ships in 2-12 days

0
