61E477-0016-J1 - Briggs & Stratton Horizontal Engine Throttle Body Group Parts Diagram

Horizontal Engine

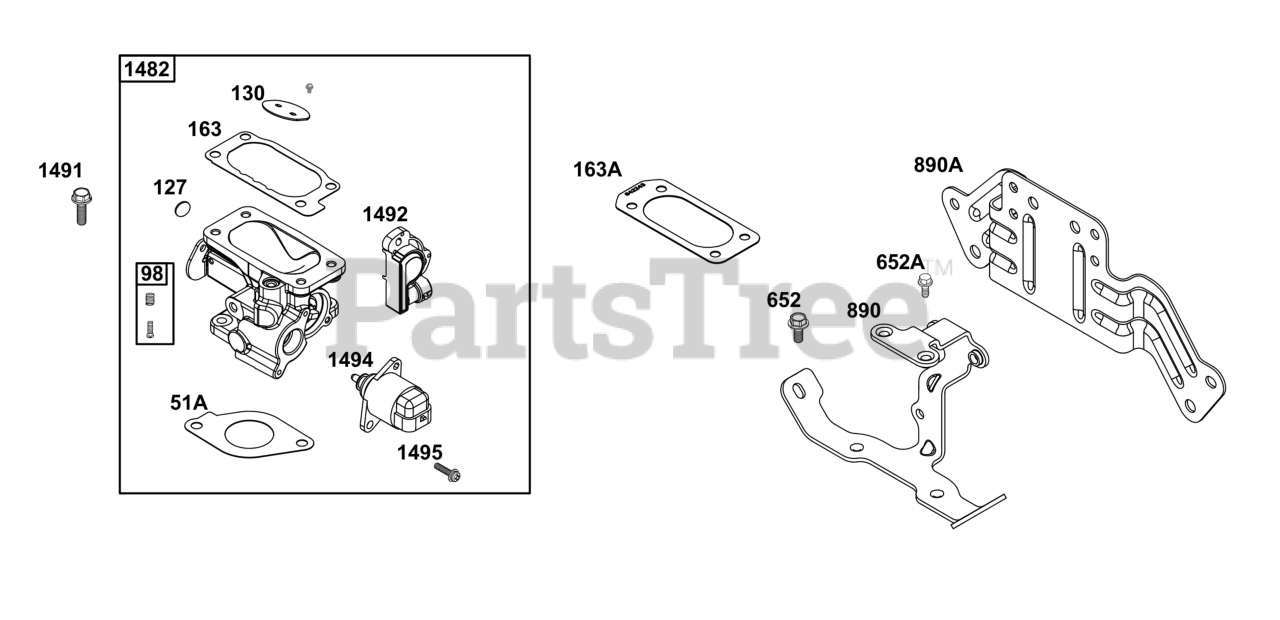

Throttle Body Group Parts Diagram

  • Title

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

98

Briggs & Stratton 846477

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691742

PLUG, Welch

$4.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 846476

VALVE, Throttle

$4.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 7

0

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 9

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, only 2 left!

0

652A

Briggs & Stratton 845964

SCREW

Note: (Support Bracket)

$4.49

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 846506

BRACKET, Support

$101.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 846493

BRACKET, Support

Note: (Fuel Module Heat Shield)

$111.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 846474

BODY, Throttle

$464.99

$

Usually ships in 2-12 days

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body)

$3.49

$

Usually ships in 2-12 days

0

1492

Briggs & Stratton 847938

SENSOR, Throttle

$90.99

$

Usually ships in 2-12 days

0

1494

Briggs & Stratton 846479

VALVE, Idle Air

$130.99

$

Usually ships in 2-12 days

0

1495

Briggs & Stratton 847169

SCREW

Note: (Idle Air Valve)

$3.99

$

Usually ships in 2-12 days

0
