61E877-0110-J1 - Briggs & Stratton Vertical Engine Fuel Supply Group Parts Diagram

Vertical Engine

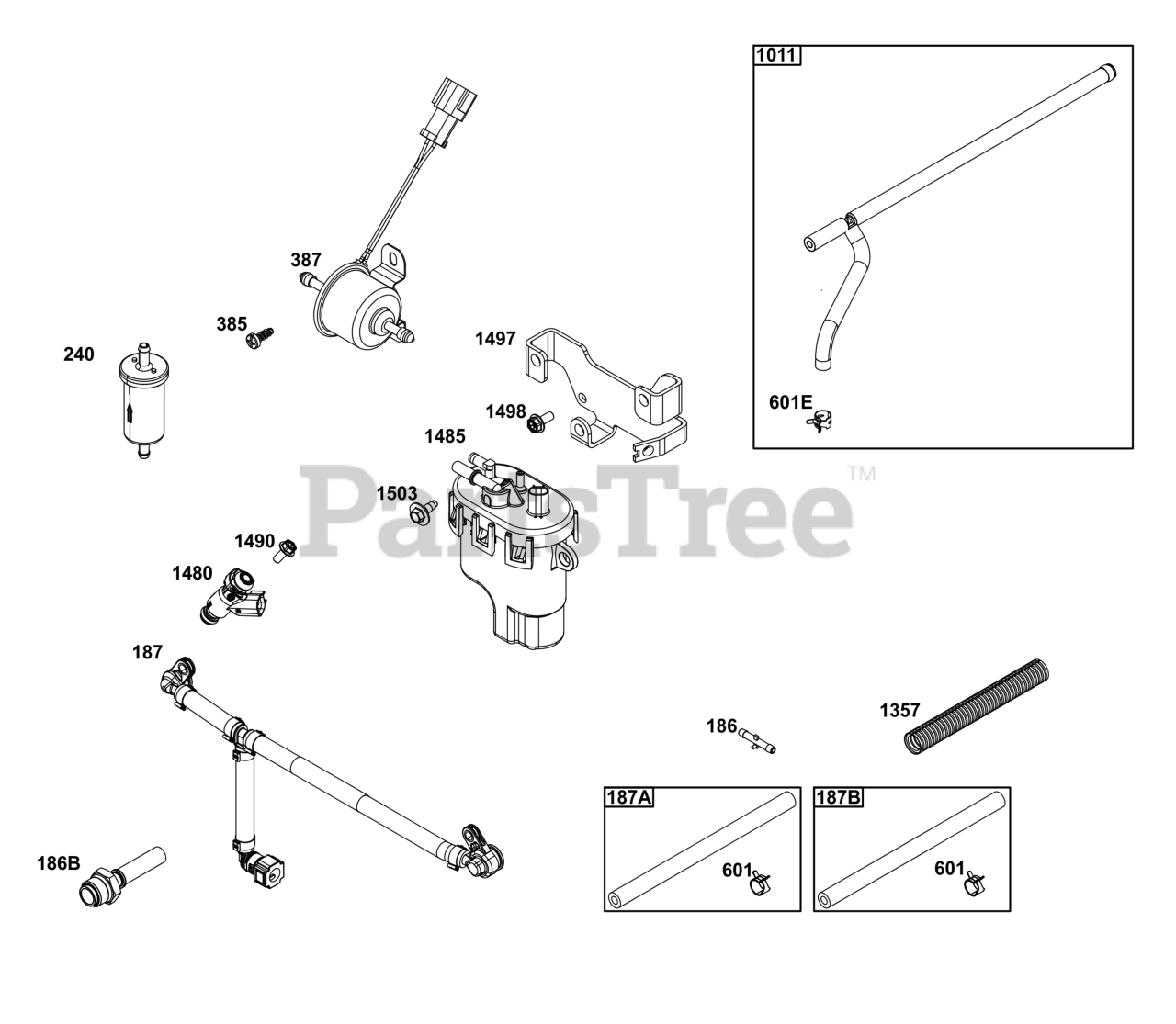

Fuel Supply Group Parts Diagram

  • Title

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

186B

Briggs & Stratton 847343

CONNECTOR, Hose

$

$

Not available

187

Briggs & Stratton 846500

LINE, Fuel

$197.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 13

0

187B

Briggs & Stratton 846823

LINE, Fuel

$26.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791745

LINE, Fuel

$11.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

385

Briggs & Stratton 846250

SCREW
(Superseded to 84006665)

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

PUMP, Fuel

$160.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

601E

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

1011

Briggs & Stratton 846830

TUBE, Vent

$80.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 846822

SLEEVE, Fuel Line

$12.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$452.99

$

In Stock, only 2 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector)

$3.99

$

In Stock, only 2 left!

0

1497

Briggs & Stratton 846486

BRACKET, Fuel Module

$208.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.99

$

In Stock, only 2 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module)

$3.99

$

In Stock, Qty 5

0
