61E877-0110-J1 - Briggs & Stratton Vertical Engine Throttle Body Group Parts Diagram

Vertical Engine

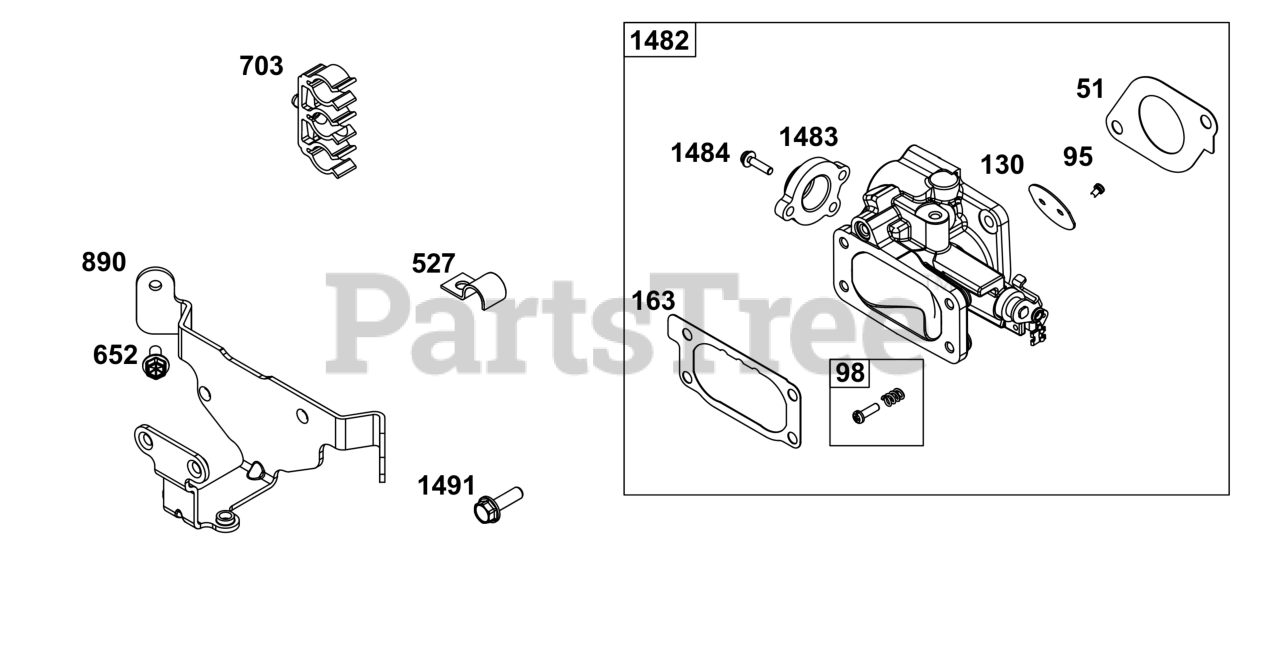

Throttle Body Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 797156

KIT, Idle Speed

$12.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 846808

VALVE, Throttle

$7.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 7

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, only 2 left!

0

703

Briggs & Stratton 594364

CLIP

$6.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 846492

BRACKET, Support

$195.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 846807

BODY, Throttle

$425.99

$

Usually ships in 2-12 days

0

1483

Briggs & Stratton 593895

COVER, Dust

$8.99

$

Usually ships in 2-12 days

0

1484

Briggs & Stratton 847169

SCREW

Note: (Dust Cover)

$3.99

$

Usually ships in 2-12 days

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body)

$3.49

$

Usually ships in 2-12 days

0
