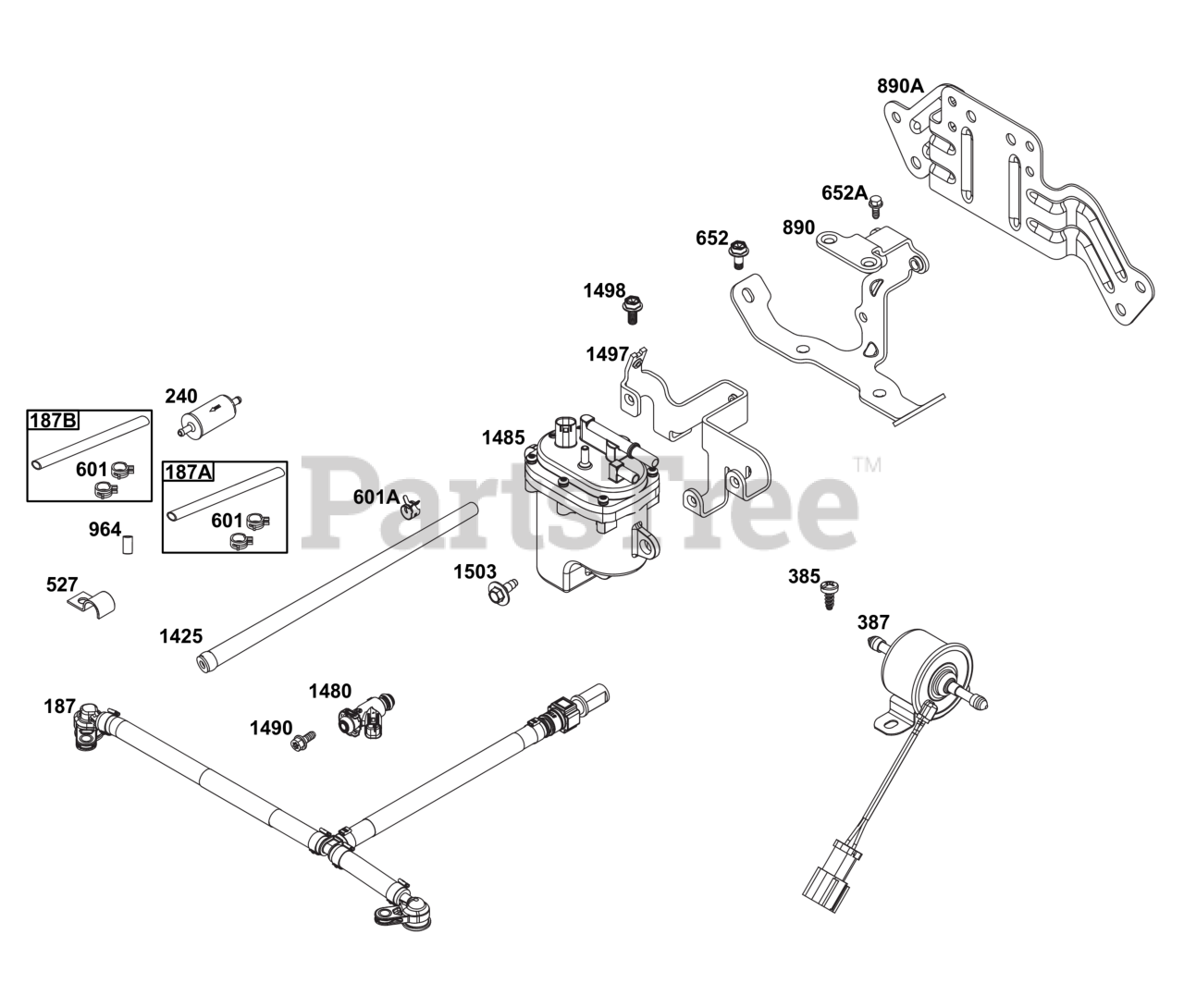

61G477-0106-J1 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

Fuel Supply Group Parts Diagram

  • Title

187

Briggs & Stratton 846475

LINE, Fuel

$189.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791745

LINE, Fuel

$11.99

$

In Stock, only 4 left!

0

187B

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 11

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

385

Briggs & Stratton 84006665

SCREW

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846470

PUMP, Fuel

$160.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0

652A

Briggs & Stratton 845964

SCREW

Note: (Support Bracket)

$4.49

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 846506

BRACKET, Support

$106.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 846493

BRACKET, Support

$117.99

$

Usually ships in 2-12 days

0

964

CAP, Connector

Note: (Part information located in Blower Housing Group.)

$

$

Not available

1425

Briggs & Stratton 846514

HOSE, Purge Line

$8.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1485

Briggs & Stratton 84006568

MODULE, Fuel

$409.99

$

Usually ships in 2-12 days

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$111.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

In Stock, Qty 9

0
