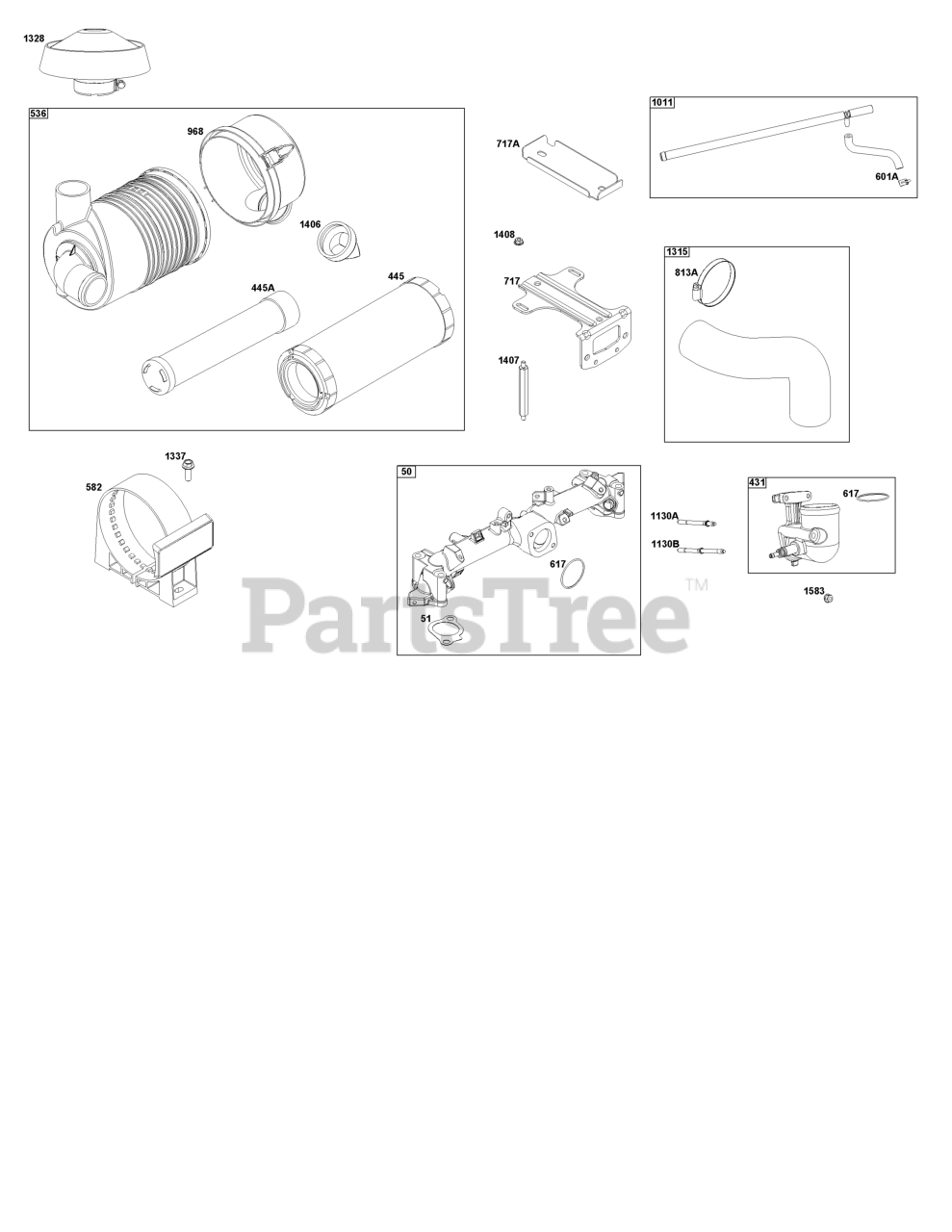

61G877-0001-J1 - Briggs & Stratton Vertical Engine Air Cleaner Group Parts Diagram

Vertical Engine

Air Cleaner Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

431

Briggs & Stratton 84004258

ELBOW, Intake

$87.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 841497

FILTER, A/C Cartridge

$34.99

$

In Stock, Qty 20+

0

445A

Briggs & Stratton 821136

FILTER, A/C Cartridge

$35.99

$

In Stock, Qty 15

0

536

Briggs & Stratton 809670

CLEANER, Air

$241.99

$

Usually ships in 2-12 days

0

582

Briggs & Stratton 809878

CLAMP, Air Cleaner

$69.99

$

In Stock, Qty 6

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

717

Briggs & Stratton 84004231

BRACKET, Air Cleaner

$23.99

$

Usually ships in 2-12 days

0

717A

Briggs & Stratton 841886

BRACKET, Air Cleaner

$18.99

$

In Stock, only 1 left!

0

813A

Briggs & Stratton 593625

CLAMP

$9.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 842621

COVER, Air Cleaner

$89.99

$

In Stock, only 1 left!

0

1011

Briggs & Stratton 846830

TUBE, Vent

$80.99

$

Usually ships in 2-12 days

0

1130A

Briggs & Stratton 84004225

STUD

Note: (Intake Manifold)

$20.99

$

Usually ships in 2-12 days

0

1130B

Briggs & Stratton 84004223

STUD

Note: (Intake Manifold)

$20.99

$

Usually ships in 2-12 days

0

1315

Briggs & Stratton 84004254

HOSE, Air Cleaner

$63.99

$

Usually ships in 2-12 days

0

1328

Briggs & Stratton 809907

CAP, A/C Rain

$63.99

$

In Stock, only 2 left!

0

1337

Briggs & Stratton 807382

SCREW

Note: (Air Cleaner Clamp)

$3.99

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 842623

VALVE, Debris

$22.99

$

In Stock, only 2 left!

0

1407

Briggs & Stratton 846831

STUD

Note: (Air Cleaner Bracket)

$17.99

$

Usually ships in 2-12 days

0

1408

Briggs & Stratton 690939

NUT

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, only 2 left!

0

1583

Briggs & Stratton 84004437

NUT
(Superseded to 690939)

Note: (Intake Elbow)

$3.49

$

In Stock, only 2 left!

0
