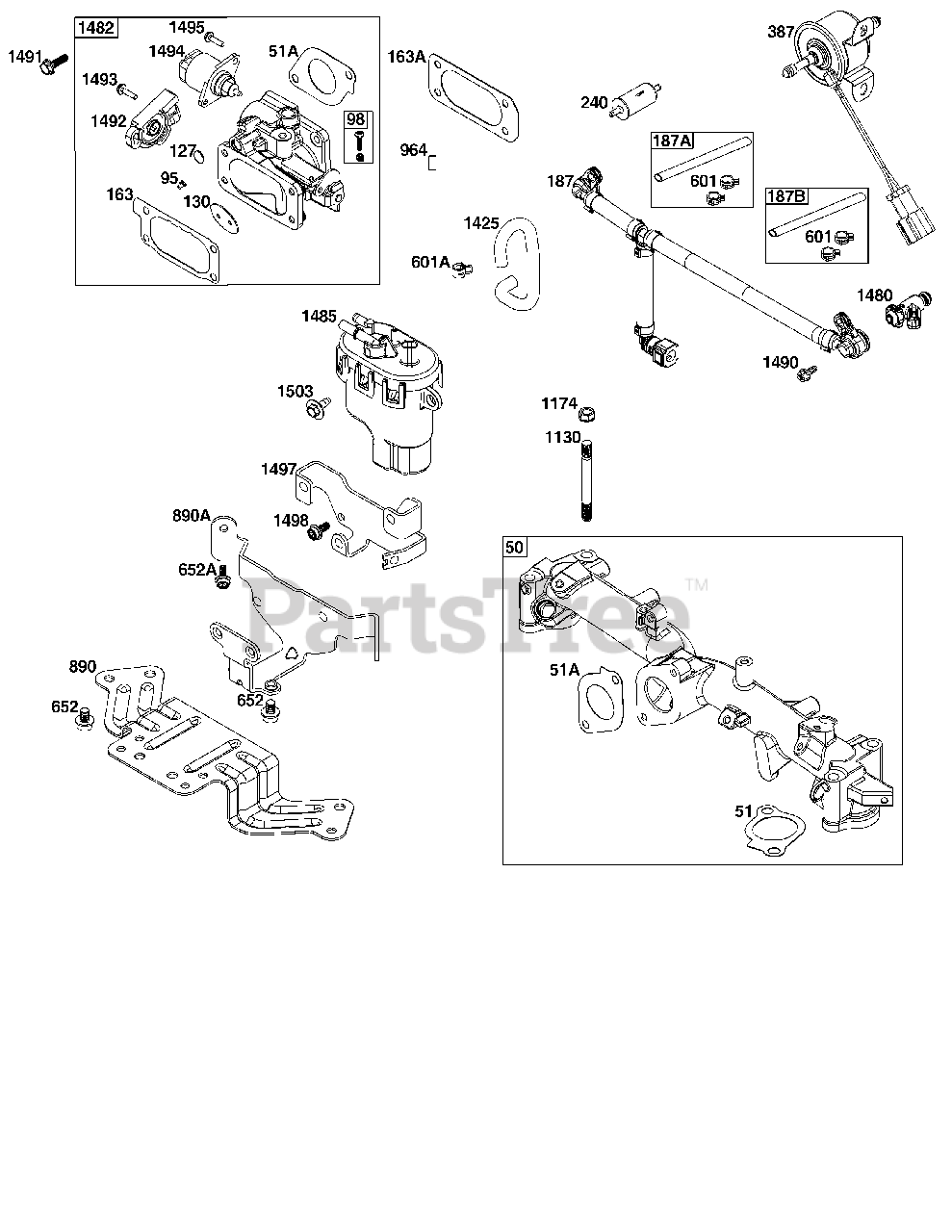

61G977-0004-J1 - Briggs & Stratton Vertical Engine Throttle Body and Fuel Supply Group Parts Diagram

Vertical Engine

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

50

MANIFOLD, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 846477

KIT, Idle Speed

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691742

PLUG, Welch

$5.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 846476

VALVE, Throttle

$5.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.99

$

In Stock, Qty 6

0

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 5

0

187

Briggs & Stratton 846500

LINE, Fuel

$197.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791745

LINE, Fuel

Note: (Cut To Required Length)

$11.99

$

In Stock, Qty 5

0

187B

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 11

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

387

Briggs & Stratton 846470

PUMP, Fuel

$160.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 845964

SCREW

Note: (Support Bracket) (M8x10mm)

$4.49

$

Usually ships in 2-12 days

0

652A

Briggs & Stratton 807084

SCREW

Note: (Support Bracket) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0

890

Briggs & Stratton 846493

BRACKET, Support

$117.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 846492

BRACKET, Support

$205.99

$

Usually ships in 2-12 days

0

964

CAP, Connector

Note: (Part information located in Blower Housing Group.)

$

$

Not available

1130

STUD

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1174

NUT

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1425

Briggs & Stratton 846491

HOSE, Air

$69.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1482

Briggs & Stratton 846474

BODY, Throttle

$511.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$452.99

$

In Stock, only 2 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body) (M6x20mm)

$3.99

$

Usually ships in 2-12 days

0

1492

SENSOR, Throttle

Note: (Part information located in Controls Group.)

$

$

Not available

1493

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

1494

Briggs & Stratton 846479

VALVE, Idle Air

$143.99

$

In Stock, only 1 left!

0

1495

Briggs & Stratton 847169

SCREW

Note: (Idle Air Valve)

$3.99

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 846486

BRACKET, Fuel Module

$208.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket) (M6x14mm)

$3.99

$

In Stock, only 1 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

In Stock, Qty 9

0
