62-10BP01 (A-100) - Toro 36" Lawn Tractor (1976) 10.000 FUEL AND EXHAUST SYSTEM Parts Diagram

36" Lawn Tractor

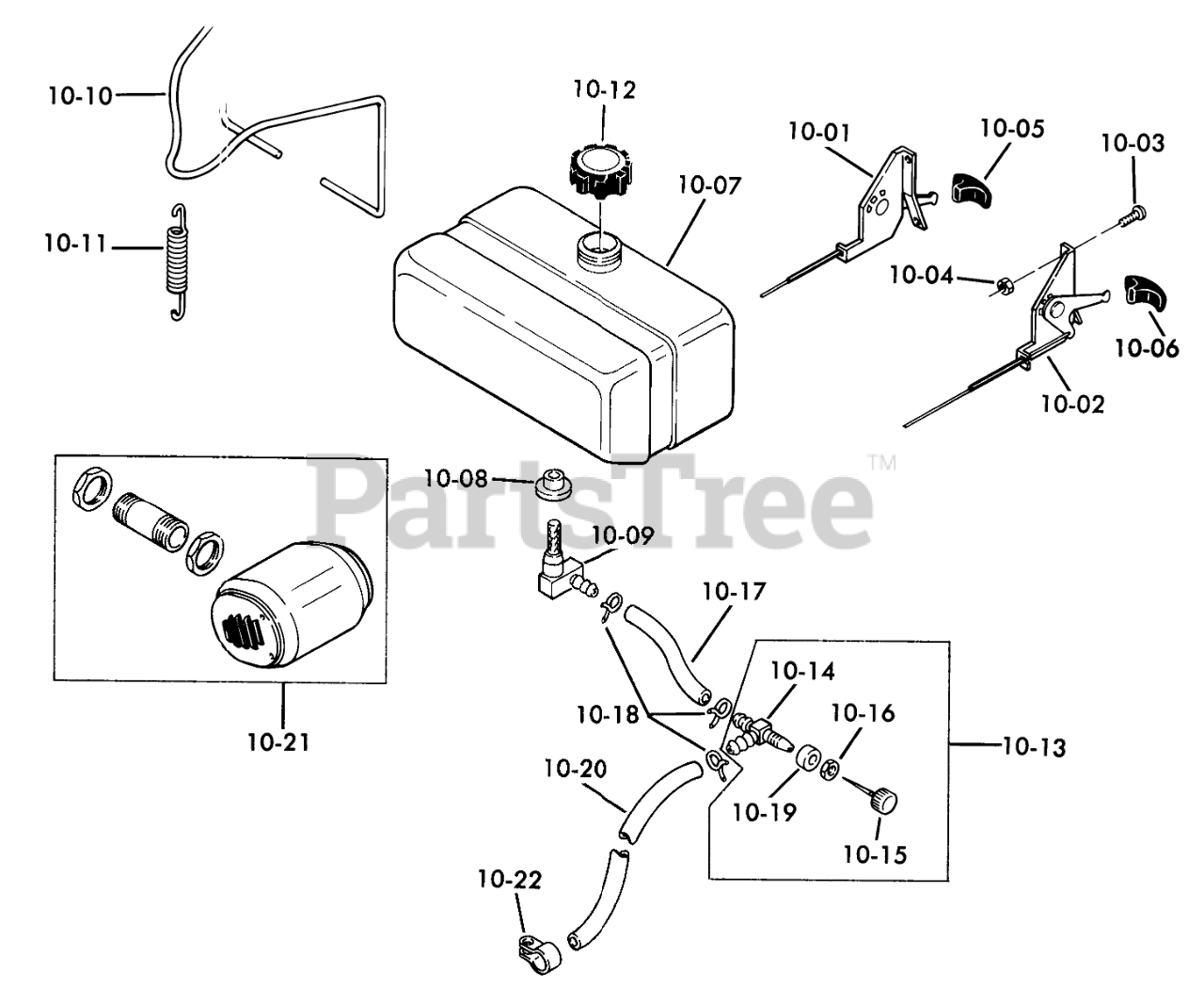

10.000 FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

10-01

Toro 103519

Throttle Control

$

$

Not available

10-02

Toro 103577

Ass-y. Control-Choke

$

$

Not available

10-03

Toro 8713

SCREW

$

$

Not available

10-04

Toro 915964

#10-24 Kep-Nut
(Superseded to 32149-7)

$0.99

$

In Stock, Qty 10

0

10-05

Toro 102185

KNOB-THROTTLE

$15.99

$

In Stock, only 2 left!

0

10-06

Toro 102186

KNOB-CHOKE

$15.99

$

In Stock, Qty 7

0

10-07

Toro 104067

ASSY-FUEL TANK

$269.99

$

Usually ships in 3-6 days

0

10-08

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

10-09

Toro 104071

FITTING FUEL TANK

$

$

Not available

10-10

Toro 100147

Hold Down Wire

$

$

Not available

10-11

Toro 6949

CLUTCH SPRING

$

$

Not available

10-12

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

10-13

Toro 8023

S/A FUEL VALVE

$87.99

$

Usually ships in 3-6 days

0

10-14

Toro 100748

VALVE BODY

$

$

Not available

10-15

Toro 100749

STEM

$

$

Not available

10-16

Toro 100750

NUT

$

$

Not available

10-17

Toro 105029

Fuel Hose 4.5"
(Superseded to 101338)

$

$

Not available

10-18

Toro 950154

Clamp

$

$

Not available

10-19

Toro 5189

SPACER

$

$

Not available

10-20

Toro 105442

Fuel Hose 18"
(Superseded to 100061)

$

$

Not available

10-21

Toro 105501

Assy-Exhaust

$

$

Not available

10-22

Toro 101861

CLAMP-HOSE

$

$

Not available
