620 (190-620-000) - Yard-Man 42"Snow Blade 42" Snow Blade Parts Diagram

42"Snow Blade

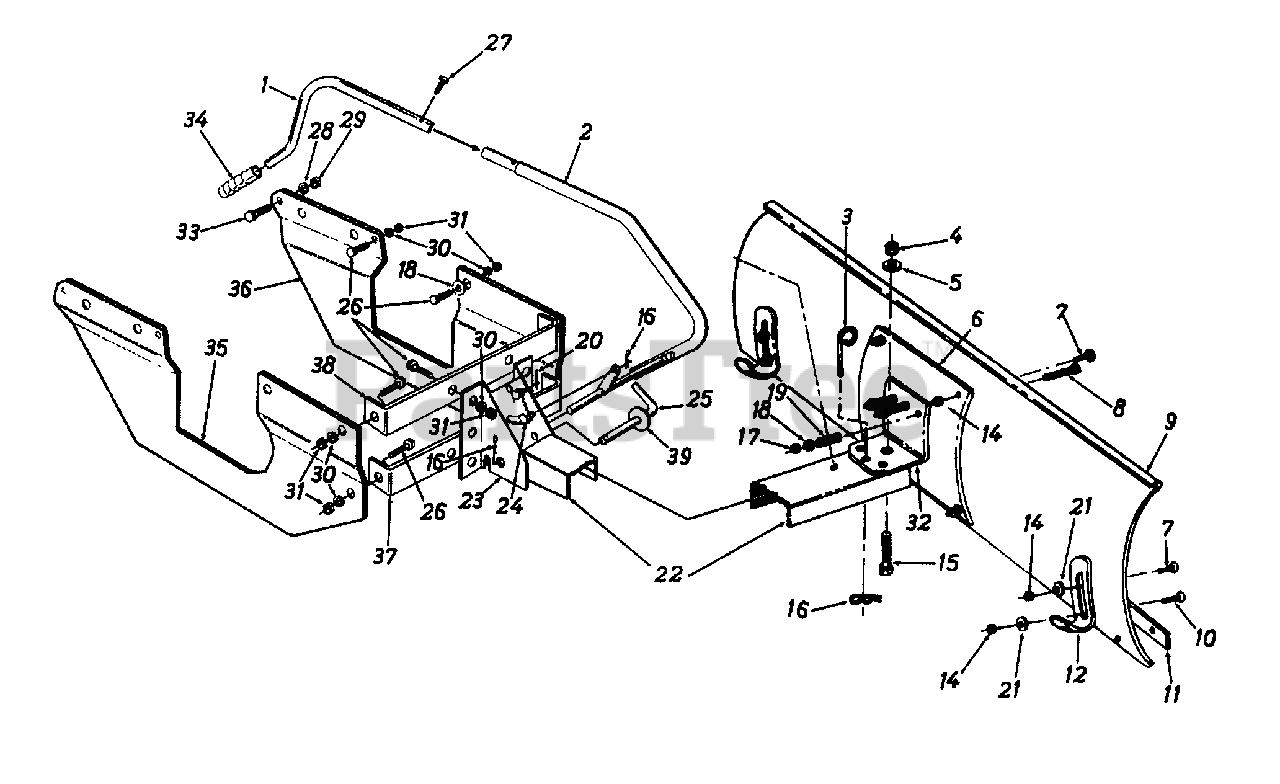

42" Snow Blade Parts Diagram

  • Title

1

Cub Cadet AF-46553

Upper Lift Handle

Note: Code N

$102.99

$

Usually ships in 3-6 days

0

2

Cub Cadet AF-63283

Lift Handle Ass'y.

Note: Code N

$229.99

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-43038

Pivot Lock Pin

$14.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-0384

Hex Cent. L-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

5

Cub Cadet 736-0179

Fl-Wash. 17/32" I.D.

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet AF-23061

Reinforcement Plate

$

$

Not available

7

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet AF-43036

Hex Bolt 3/8-16 x 4" Lg.

$

$

Not available

9

Cub Cadet AF-23114

42" Blade

$

$

Not available

10

Cub Cadet 710-0276

Carriage Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet AF-23117

42" Wear Plate

$

$

Not available

12

Cub Cadet 20505

Shoe Skid

$

$

Currently unavailable

14

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

$

$

Not available

16

Cub Cadet 714-0101

Int. Cotter Pin

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet 736-0258

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet AF-43035

Compression Spring

$

$

Not available

20

Cub Cadet 714-0121

Cotter Pin 1/8" Dia. x 1" Lg.
(Superseded to 914-0121)

$

$

Not available

21

Cub Cadet AF-43081

Fl-Wash. 5/16" I.D.
(Superseded to 936-0159)

$

$

Not available

22

Cub Cadet AF-63284

Push Bar Channel

$

$

Not available

23

Cub Cadet AF-24023

Pivot Support Bracket
(Superseded to AF-24023-0637)

Variations

Cub Cadet AF-24023-0637

Pivot Support Bracket - POWDER BLACK (0637)

$161.99

$

In Stock, only 1 left!

0

$161.99

$

In Stock, only 1 left!

0

24

Cub Cadet AF-63034

Lift Link
(Superseded to AF-69740)

$21.99

$

Usually ships in 3-6 days

0

25

Cub Cadet AF-46065

Channel Pivot Shaft

$42.99

$

In Stock, only 1 left!

0

26

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1" Lg. Grade 5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet AF-44818

Hex Bolt #10 x 5/8" Lg.
(Superseded to 710-04082)

$

$

Not available

28

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

29

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

30

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet AF-23115

Support Bracket

$

$

Not available

33

Cub Cadet 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 720-0204

Rubber Grip

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet AF-24134

Frame Support Brkt. (R.H.)

$

$

Not available

36

Cub Cadet AF-24133

Frame Support Brkt. (L.H.)

$

$

Not available

37

Cub Cadet AF-24128

Support Brkt.

Note: (Lower)

$

$

Not available

38

Cub Cadet AF-24132

Support Brkt.

Note: (Upper)

$

$

Not available

39

Cub Cadet AF-R19171614

Fl-Wash. 17/32" I.D. x 1" O.D.

$

$

Currently unavailable
