620 (2020303) - AGCO Lawn Tractor, 19.5hp SHEET METAL & SEAT Parts Diagram

Lawn Tractor, 19.5hp

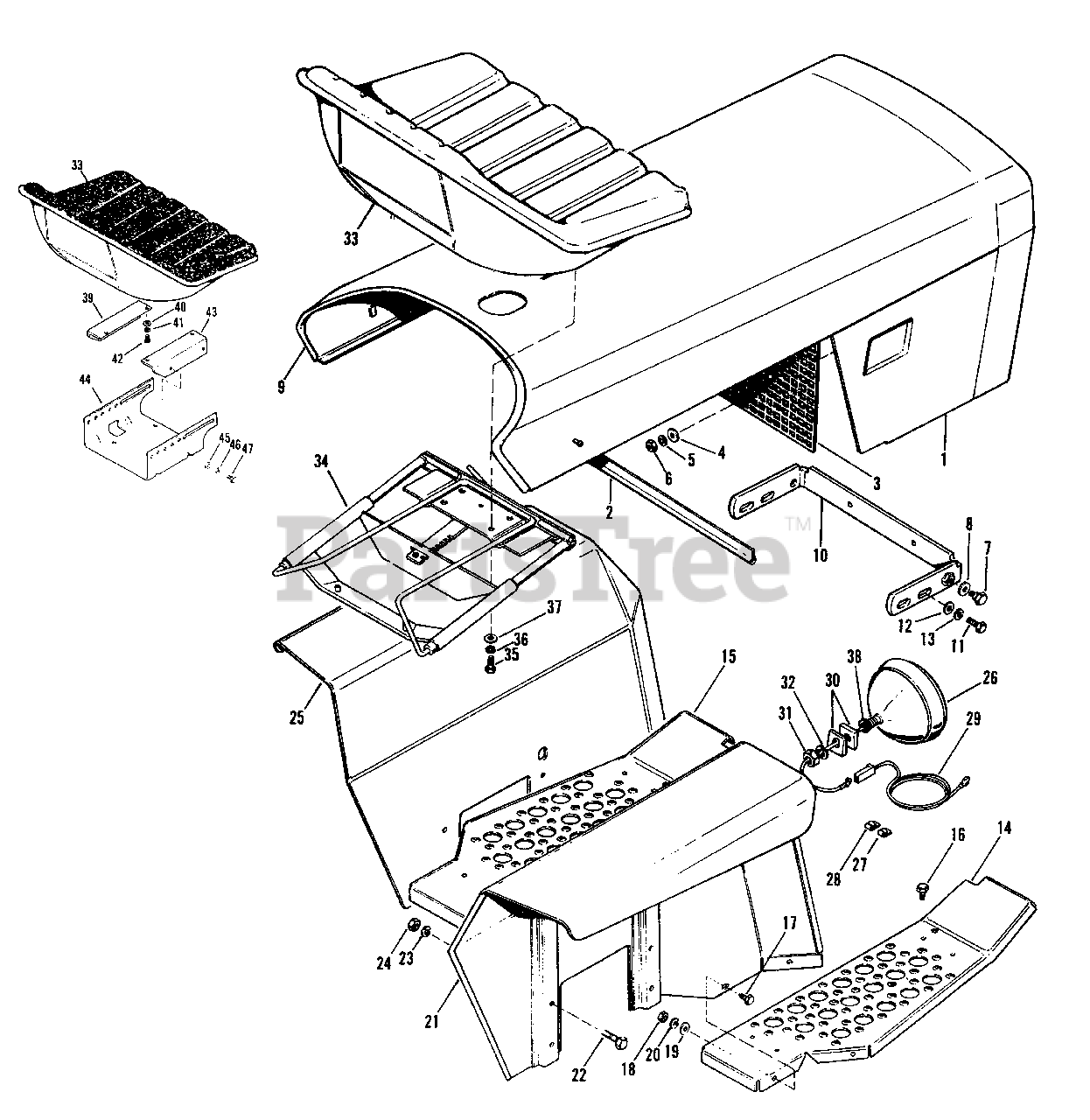

SHEET METAL & SEAT Parts Diagram

  • Title

1

Simplicity 176552

Hood Assembly

$

$

Not available

2

Simplicity 176548

Seal

$

$

Not available

3

Simplicity 171738

Grille (Mfg. No. 920)

$

$

Not available

3

Simplicity 176758

Grille (Mfg. Nos. 953 & 954)

$

$

Not available

4

Simplicity 172894

Washer

$

$

Not available

5

Simplicity 2721003

Lockwasher, Shakeproof No. 10

$

$

Not available

6

Simplicity 2717023

Hex Nut, No. 10-24

$

$

Not available

7

Simplicity 2108412

Shoulder Bolt

$

$

Not available

8

Simplicity 175234

Washer

$

$

Not available

9

Simplicity 172155

Molding

$

$

Not available

10

Simplicity 175243

Hinge

$

$

Not available

11

Simplicity 2705004

Hex Capscrew, 3/8"-16 x 3/4" lg.

$

$

Not available

12

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

13

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

14

Simplicity 170457

Platform, Right Hand

$

$

Not available

15

Simplicity 170458

Platform, Left Hand

$

$

Not available

16

Simplicity 2715125

Thread Forming Screw, 5/16"-18 x 7/8" lg.

$

$

Not available

17

Simplicity 2705012

Thread Forming Screw, 5/16"-18 x 5/8" lg.

$

$

Not available

18

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available

19

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

20

Simplicity 2720001

Locker, 5/16"

$

$

Not available

21

Simplicity 170431

Wheel Guard Assy., R.H.

$

$

Not available

22

Simplicity 2705009

Hex Capscrew, 3/8"-16 x 1-1/2" lg.

$

$

Not available

23

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

24

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

25

Simplicity 170432

Wheel Guard Assy., L.H.

$

$

Not available

26

Simplicity 170462

Lamp

$

$

Not available

27

Simplicity 122159

Clip

$

$

Not available

28

Simplicity 172910

Clip

$

$

Not available

29

Simplicity 172911

Wire

$

$

Not available

30

Simplicity 170461

Special Washer

$

$

Not available

31

Simplicity 2717017

Hex Nut, 1/2"-13

$

$

Not available

32

Simplicity 2720004

Lockwasher, 1/2"

$

$

Not available

33

Simplicity 1686712SM

Seat Assembly

$517.99

$

Usually ships in 2-12 days

0

34

Simplicity 177332

Seat Adjuster (Mfg. Nos. 953 & 954)

$

$

Not available

35

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

36

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

37

Simplicity 2719001

Plain Washer, 5/16" (Mfg. Nos. 953 & 954)

$

$

Not available

39

Simplicity 173300

Seat Bracket, L.H. (Mfg. No. 920)

$

$

Not available

38

Simplicity 2721005

Lockwasher, Shakeproof

$

$

Not available

40

Simplicity 2719002

Plain Washer, 5/16" (Mfg. No. 920)

$

$

Not available

41

Simplicity 2720001

Lockwasher, 5/16" (Mfg. No. 920)

$

$

Not available

42

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg. (Mfg. No. 920)

$

$

Not available

43

Simplicity 173299

Seat Bracket, R.H. (Mfg. No. 920)

$

$

Not available

44

Simplicity 173298

Support (Mfg. No. 920)

$

$

Not available

45

Simplicity 2719001

Plain Washer, 3/8" (Mfg. No. 920)

$

$

Not available

46

Simplicity 2720002

Lockwasher, 3/8" (Mfg. No. 920)

$

$

Not available

47

Simplicity 2705011

Hex Capscrew, 3/8"-16 x 5/8" lg. (Mfg. No. 920)

$

$

Not available
