620 (2020303) - AGCO Lawn Tractor, 19.5hp TRANSMISSION Parts Diagram

Lawn Tractor, 19.5hp

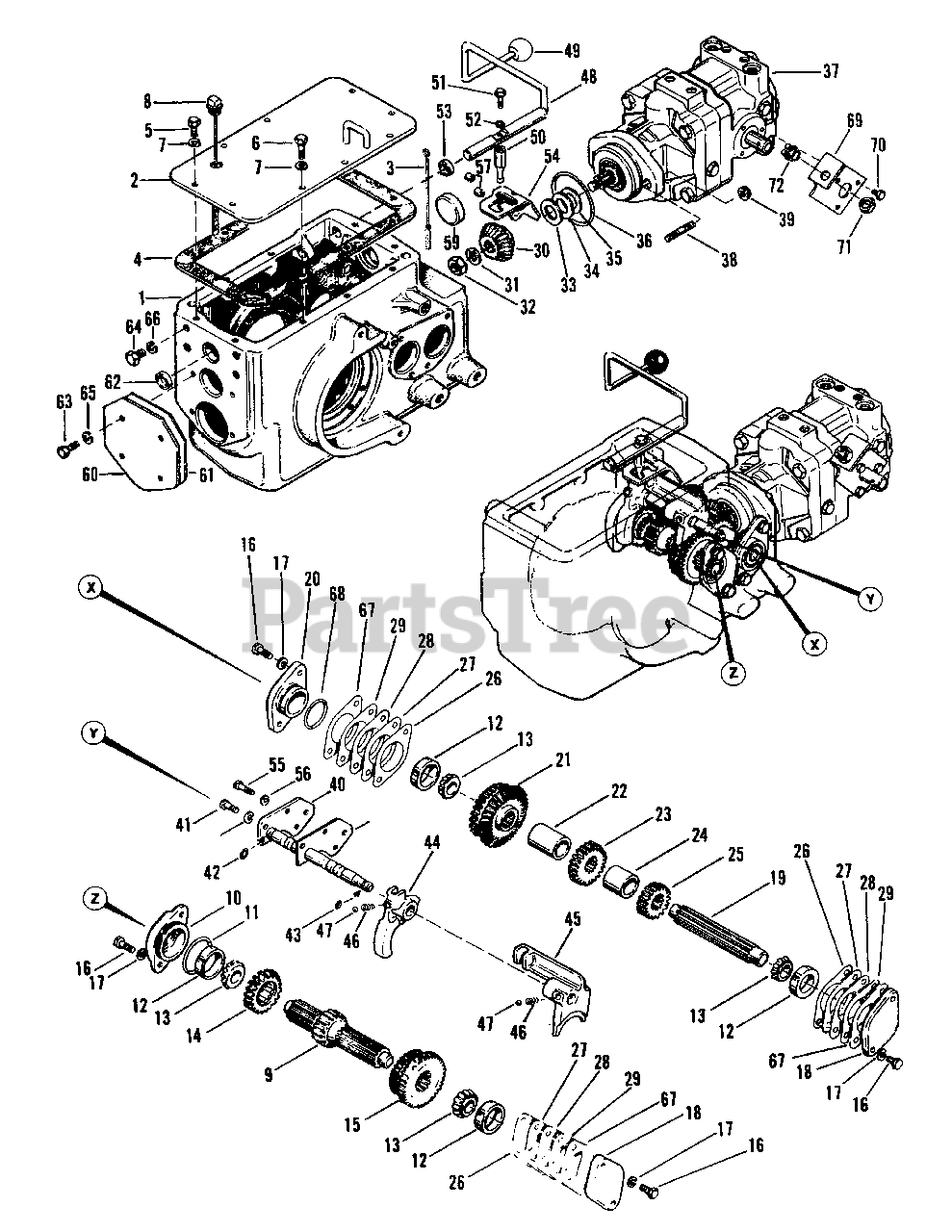

TRANSMISSION Parts Diagram

  • Title

1

Simplicity 176600

Differential Case

$

$

Not available

2

Simplicity 174792

Cover Assembly

$

$

Not available

3

Simplicity 173473

Brush

$

$

Not available

4

Simplicity 2170831SM

Gasket

$22.99

$

Usually ships in 2-12 days

0

5

Simplicity 2705004

Hex Capscrew, 3/8"-16 x 3/4" lg.

$

$

Not available

6

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

7

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

8

Simplicity 175835

Dip Stick Assembly

$

$

Not available

9

Simplicity 172857

Sliding Gear Shaft

$

$

Not available

10

Simplicity 170774

Bearing Cap

$

$

Not available

11

Simplicity 170838

"O" Ring

$

$

Not available

12

Simplicity 2154393SM

Bearing

$22.99

$

In Stock, Qty 5

0

13

Simplicity 2154486SM

Bearing Cone

$36.99

$

In Stock, Qty 15

0

14

Simplicity 172855

Gear, 20T

$

$

Not available

15

Simplicity 172862

Lo and 2nd Gear

$

$

Not available

16

Simplicity 2705031

Hex Capscrew, 3/8"-16 x 7/8" lg.

$

$

Not available

17

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

18

Simplicity 170773

Bearing Cap

$

$

Not available

19

Simplicity 170823

Input Shaft

$

$

Not available

20

Simplicity 174555

Bearing Cap

$

$

Not available

21

Simplicity 170833

Bevel Gear Assembly

$

$

Not available

22

Simplicity 170811

Spacer

$

$

Not available

23

Simplicity 170825

Gear, 23 T

$

$

Not available

24

Simplicity 170810

Spacer

$

$

Not available

25

Simplicity 170826

Gear, 18 T

$

$

Not available

26

Simplicity 170840

Shim, .002

$

$

Not available

27

Simplicity 170841

Shim, .003

$

$

Not available

28

Simplicity 170842

Shim, .005

$

$

Not available

29

Simplicity 170843

Shim, .010

$

$

Not available

30

Simplicity 170867

Bevel Pinion, 24 T

$

$

Not available

31

Simplicity 172016

Washer

$

$

Not available

32

Simplicity 2717016

Hex Jam Nut, 1/2"-20

$

$

Not available

33

Simplicity 170898

Shim, .002

$

$

Not available

34

Simplicity 170899

Shim, .003

$

$

Not available

35

Simplicity 2170900

Shim, .005

$

$

Not available

36

Simplicity 172915

"O" Ring

$

$

Not available

37

Simplicity 171189

Hydro. Motor w/pump

$

$

Not available

38

Simplicity 173424

Stud

$

$

Not available

39

Simplicity 2718035

Whiz Lock Nut

$

$

Not available

40

Simplicity 170809

Shift Shaft Assembly

$

$

Not available

41

Simplicity 2705004

Hex Capscrew, 3/8"-16 x 3/4" lg.

$

$

Not available

42

Simplicity 2165006SM

"O" Ring

$10.99

$

Usually ships in 2-12 days

0

43

Simplicity 170837

"O" Ring

$

$

Not available

44

Simplicity 170776

Shift Fork HI

$

$

Not available

45

Simplicity 170777

Shift Fork Lo, 2nd

$

$

Not available

46

Simplicity 2154323SM

Spring

$30.99

$

Usually ships in 2-12 days

0

47

Simplicity 2154262

Ball

$

$

Not available

48

Simplicity 171310

Shifter Shaft Assembly

$

$

Not available

49

Simplicity 173748

Ball

$

$

Not available

50

Simplicity 170804

Shift Stem

$

$

Not available

51

Simplicity 2715121

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

52

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

53

Simplicity 2157619SM

Seal

$20.99

$

In Stock, only 3 left!

0

54

Simplicity 172107

Shift Guide

$

$

Not available

55

Simplicity 2715051

Hex Capscrew, 1/4"-20 x 1 " lg.

$

$

Not available

56

Simplicity 172101

Seal Washer

$

$

Not available

57

Simplicity 2172656SM

Spacer

$21.99

$

Usually ships in 2-12 days

0

58

Simplicity 172106

Gasket

$

$

Not available

59

Simplicity 173205

Expansion Plug (Mfg. Nos. 920 & 953)

$

$

Not available

60

Simplicity 170896

Rear Cover (Mfg. Nos. 920 & 953)

$

$

Not available

61

Simplicity 170897

Gasket (Mfg. Nos. 920 & 953)

$

$

Not available

62

Simplicity 163074

Expansion Plug

$

$

Not available

63

Simplicity 2715096

Hex Capscrew, 3/8"-16 x 1" lg. (Mfg. Nos. 920 & 953)

$

$

Not available

64

Simplicity 2705040

Hex Capscrew, 7/16"-14 x 3/4" lg.

$

$

Not available

65

Simplicity 2720002

Lockwasher, 3/8" (Mfg. Nos. 920 & 953)

$

$

Not available

66

Simplicity 2720006

Lockwasher, 7/16

$

$

Not available

67

Simplicity 176803

Shim Pack, .030

$

$

Not available

68

Simplicity 174554

"O" Ring

$

$

Not available

69

Simplicity 176309

Mounting Bracket

$

$

Not available

70

Simplicity 2715090

Washer Head Screw, 1/4"-20 x 1/2" lg.

$

$

Not available

71

Simplicity 1930647

Nut, 9/16"-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

72

Simplicity 176637

Switch

$

$

Not available
