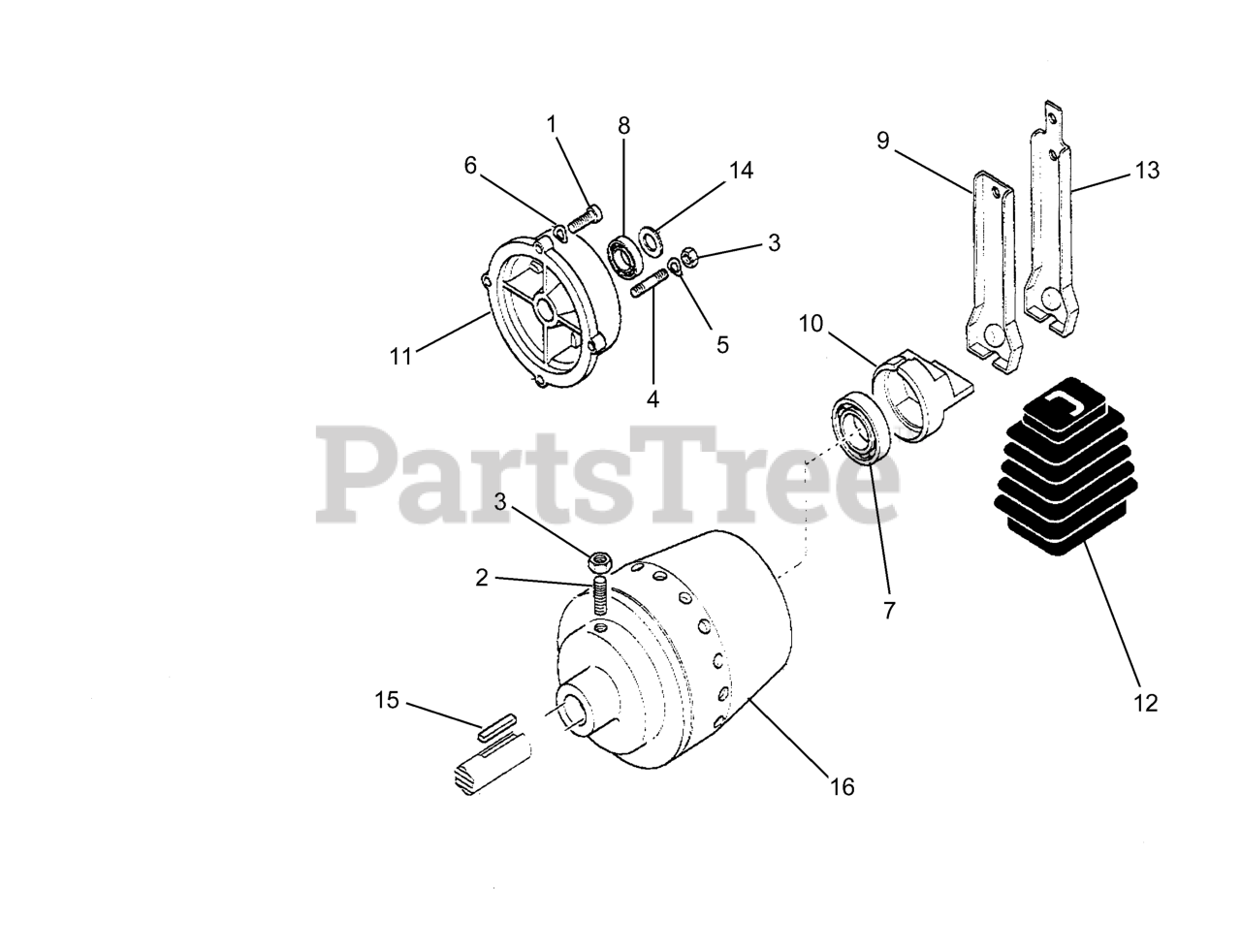

620 - BCS America Two-Wheeled Tractor Clutch (SN: 158833 & Above) Parts Diagram

Two-Wheeled Tractor

Clutch (SN: 158833 & Above) Parts Diagram

  • Title

1

BCS America 311.00015

SCREW 3/8X1

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.00786

SCREW M8X30 UNI 5923

$1.49

$

In Stock, Qty 5

0

3

BCS America 312.11080

NUT M8 UNI 5588-5S

$0.99

$

In Stock, Qty 8

0

4

BCS America 313.12088

STUD M8X40X14X14

$8.49

$

Usually ships in 5-8 days

0

5

BCS America 314.23084

SPRING WASHER B 8.4 DIN 137

$0.99

$

In Stock, Qty 10

0

6

BCS America 314.23105

SPRING WASHER B10,5 DIN 137

$1.49

$

In Stock, only 3 left!

0

7

BCS America 371.12173

BEAR.6203 2RS/C3 17X40X12 SKF

$10.99

$

Usually ships in 5-8 days

0

8

BCS America 371.12233

BEARING 6006 2RS1 SKFC3

$24.99

$

Usually ships in 5-8 days

0

9

BCS America 509.47833

SHORT CLUTCH LEVER ELEC.START

$47.99

$

Usually ships in 5-8 days

0

10

BCS America 524.47896

CONE PRESSURE PLATE

$

$

Not available

11

BCS America 531.56150

ENGINE FLANGE B&S 8HP I/P

$199.99

$

Usually ships in 5-8 days

0

12

BCS America 551.47842

HOOD (FOR CLUTCH LEVER)

$31.99

$

Usually ships in 5-8 days

0

13

BCS America 561.47845

SELF-COOLING CLUTCH LEVER

$31.99

$

Usually ships in 5-8 days

0

14

BCS America 563.47484

CLUTCH SHIELD WASHER

$2.99

$

Usually ships in 5-8 days

0

15

BCS America 563.49782

KOHLER ENGINE KEY

$10.99

$

Usually ships in 5-8 days

0

16

BCS America 592.56253

CLUTCH D.25.4 1 SPRING
(Superseded to 59256279)

$428.99

$

Usually ships in 5-8 days

0
