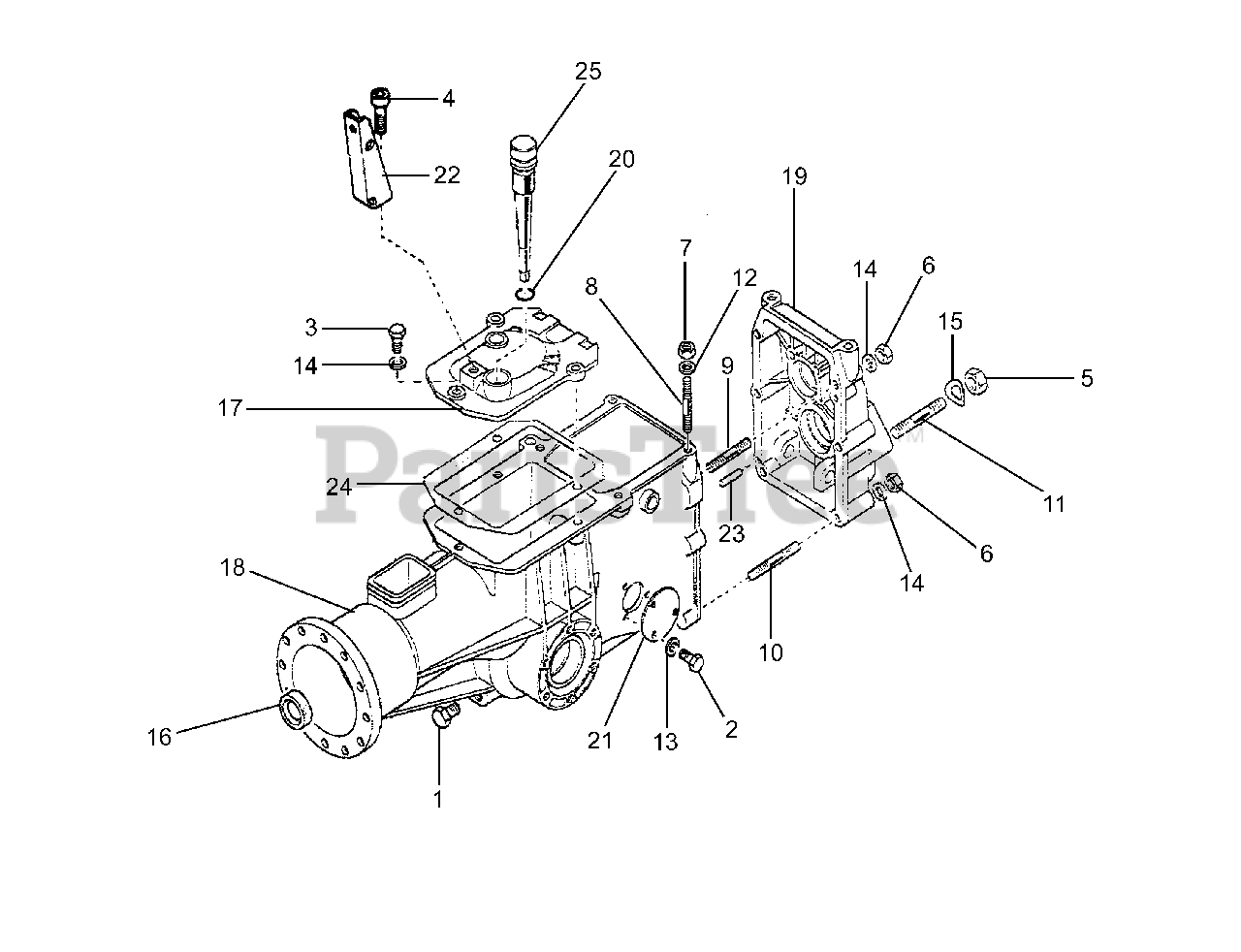

620 - BCS America Two-Wheeled Tractor Gearbox (SN: 158833 & Above) Parts Diagram

Two-Wheeled Tractor

Gearbox (SN: 158833 & Above) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG 1/4 GAS UNI 364

$5.49

$

In Stock, only 4 left!

0

2

BCS America 311.11090

HEX. SCREW M6X10 UNI 5739 8G

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12151

HEX. SCREW M8X25 UNI 5739-8G

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.52103

SCREW M10X25

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 312.21121

NUT M12X1.25 UNI 5587 6S

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 312.41080

LOCKNUT M 8

$0.99

$

In Stock, Qty 10

0

7

BCS America 312.41085

LOCKING NUT M8 DEFORM.6S

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 313.12082

STUD M8X38X14X20

$1.99

$

In Stock, only 3 left!

0

9

BCS America 313.12084

STUD M8X58X16X16 8G

$2.49

$

Usually ships in 5-8 days

0

10

BCS America 313.12094

STUD M8X70X16X16 8G

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 313.12124

STUD 56XM12X1.25X26XM12X22 8G

$3.99

$

Usually ships in 5-8 days

0

12

BCS America 314.21083

SUPER WASHER 8 DIN6796 GALV.

$1.49

$

In Stock, Qty 6

0

13

BCS America 314.22064

SPRING WASHER 6.4 DIN 137

$0.99

$

Usually ships in 5-8 days

0

14

BCS America 314.23084

SPRING WASHER B 8.4 DIN 137

$0.99

$

In Stock, Qty 10

0

15

BCS America 314.23130

SPRING WASHER B 13 DIN 137

$1.49

$

In Stock, only 2 left!

0

16

BCS America 382.11500

OIL SEAL 15X28X6

$8.49

$

In Stock, only 1 left!

0

17

BCS America 531.43879

CLOSED GEARBOX COVER

$66.99

$

Usually ships in 5-8 days

0

18

BCS America 531.56326

GEARBOX CASING

$708.99

$

Usually ships in 5-8 days

0

19

BCS America 531.56332

REAR COVER

$163.99

$

Usually ships in 5-8 days

0

20

BCS America 551.02678

RING RUBBER

$1.49

$

Usually ships in 5-8 days

0

21

BCS America 561.47520

SIDE BOX COVER

$11.99

$

Usually ships in 5-8 days

0

22

BCS America 561.47923

LONG STOP BRACKET

$32.99

$

Usually ships in 5-8 days

0

23

BCS America 580.43053

PARALLEL PIN D 6X20

$1.49

$

Usually ships in 5-8 days

0

24

BCS America 580.43117

COVER SEAL

$2.99

$

In Stock, only 2 left!

0

25

BCS America 590.15425

CAP WITH MEASURING ROD

$

$

Not available
