620 - BCS America Two-Wheeled Tractor Wheel Axle (SN: 156431 & Above) Parts Diagram

Two-Wheeled Tractor

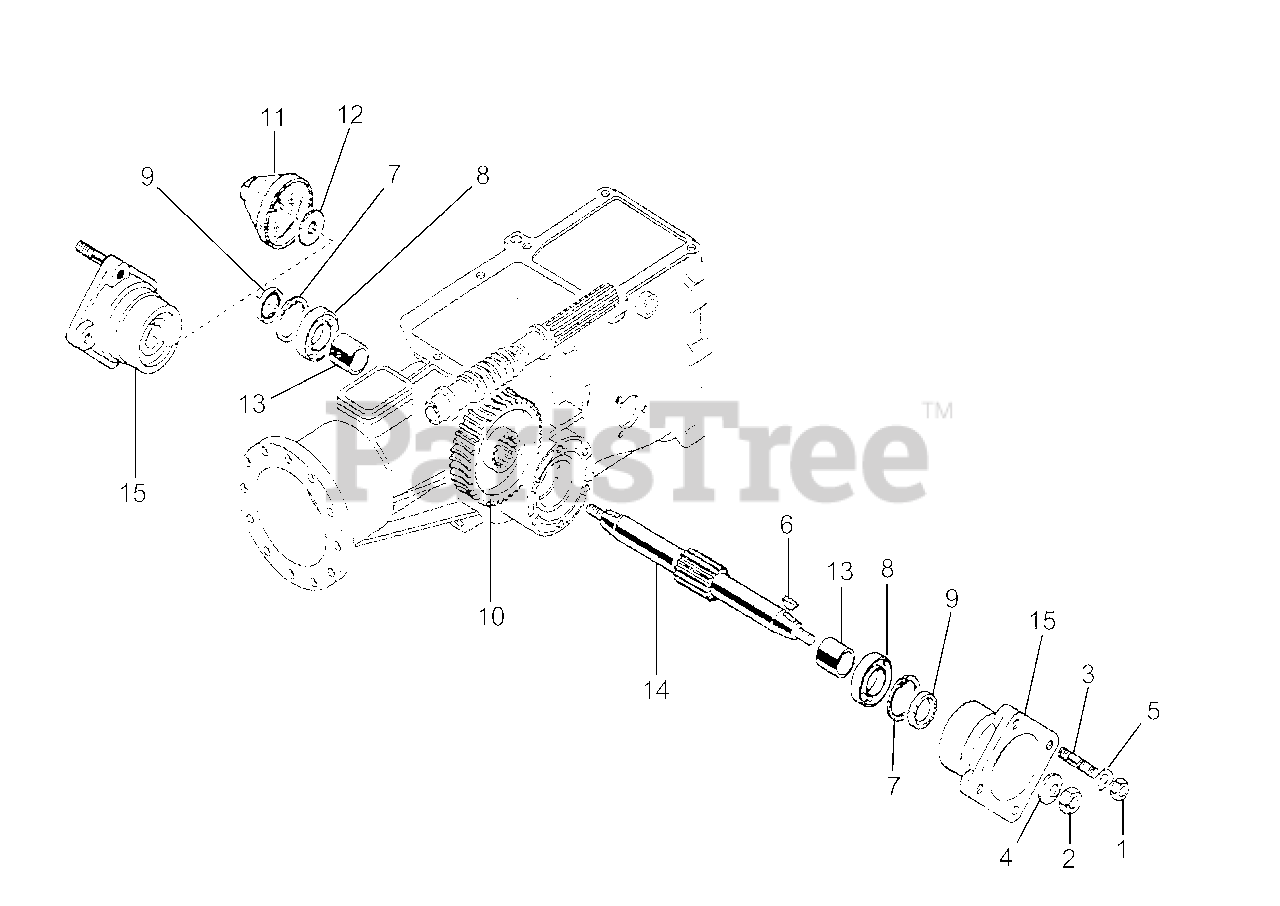

Wheel Axle (SN: 156431 & Above) Parts Diagram

  • Title

1

BCS America 312.11100

NUT M 10 UNI 5588 6S

$1.49

$

In Stock, only 2 left!

0

2

BCS America 312.41120

SELF-LOCKING NUT M12

$1.99

$

In Stock, only 1 left!

0

3

BCS America 313.12102

STUD M10X40X22X14 8G

$2.49

$

In Stock, only 2 left!

0

4

BCS America 314.21130

TOP WASHER 12

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 314.23105

SPRING WASHER B10,5 DIN 137

$1.49

$

In Stock, only 3 left!

0

6

BCS America 343.11060

KEY 6X10 UNI 6606

$3.49

$

Usually ships in 5-8 days

0

7

BCS America 351.11052

INSIDE SEEGER D 52 DIN 472

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 371.11255

BEARING SKF 25X52X15 6205

$15.99

$

In Stock, only 1 left!

0

9

BCS America 382.12501

OIL SEAL 25X52X10 NORMAL

$11.99

$

Usually ships in 5-8 days

0

10

BCS America 541.43149

CROWN GEAR Z=49 MF L-HAND 2

$520.99

$

Usually ships in 5-8 days

0

11

BCS America 552.43592

WHEEL CAP

$

$

Currently unavailable

12

BCS America 561.42314

WASHER12.5X34X4

$1.99

$

Usually ships in 5-8 days

0

13

BCS America 561.43059

SPACER

$12.99

$

Usually ships in 5-8 days

0

14

BCS America 563.43058

WHEEL SHAFT

$156.99

$

Usually ships in 5-8 days

0

15

BCS America 590.43063

WHEEL HUB WITH STUD

$175.99

$

Usually ships in 5-8 days

0
