620000x30C - Murray 20" Snow Thrower (2001) Belt Cover Assembly Parts Diagram

20" Snow Thrower

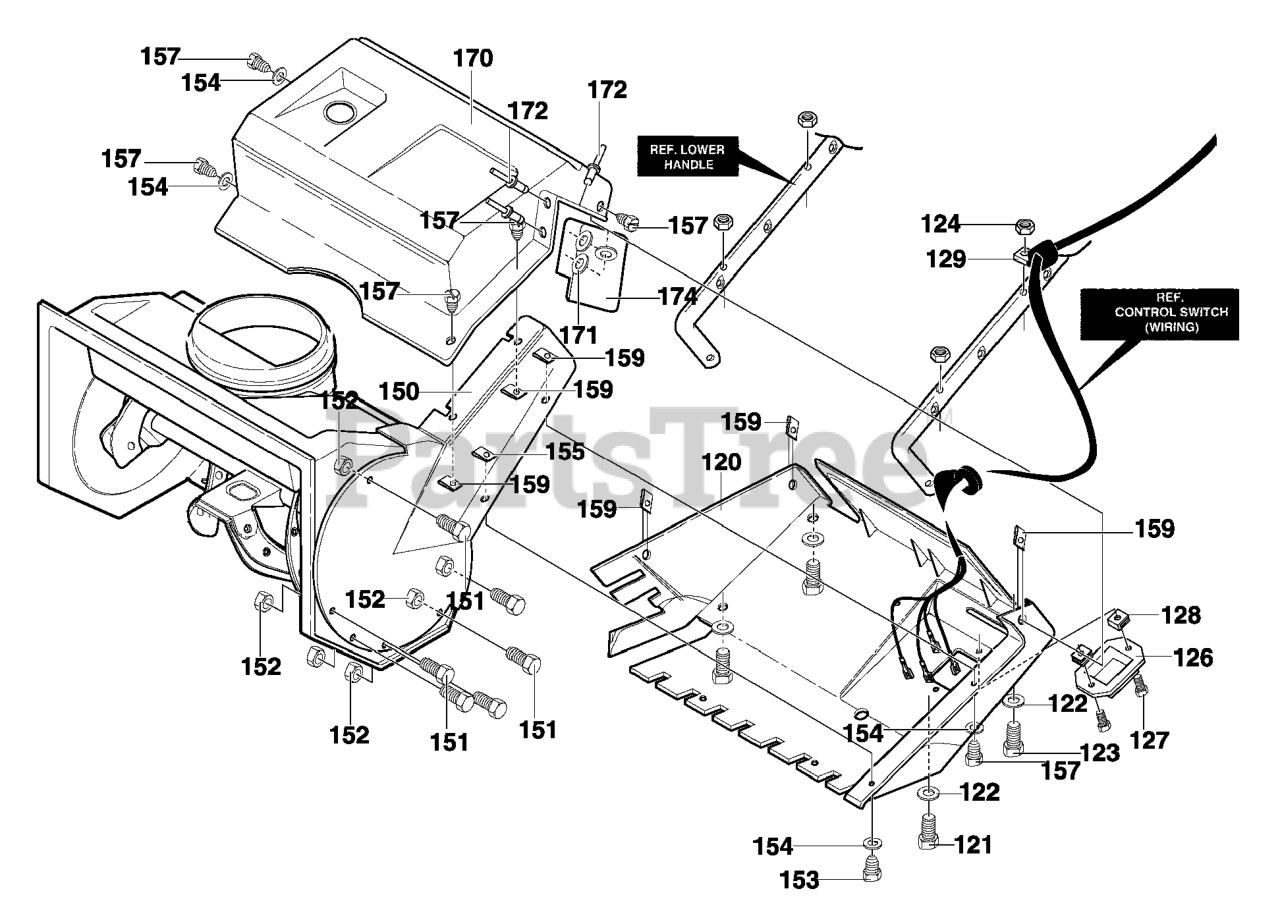

Belt Cover Assembly Parts Diagram

  • Title

120

Murray 584589

BOTTOM COVER

$

$

Not available

121

Murray 313674MA

SCREW, 1/4-20 x 1.25

$3.99

$

Usually ships in 2-12 days

0

122

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

123

Murray 70971MA

SCREW, 1/4-20 x 1.50

$3.49

$

Usually ships in 2-12 days

0

124

Murray 782585

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

126

Murray 326212

CABRURATOR COVER

$3.99

$

Usually ships in 2-12 days

0

127

Murray 313685MA

SCREW, 1/4-14 x .75

$5.49

$

Usually ships in 2-12 days

0

128

Murray 578109MA

NUT, 1/4-10

$6.49

$

In Stock, Qty 8

0

129

Murray 583435

CABLE CLIP
(Superseded to 583435MA)

$5.49

$

Usually ships in 2-12 days

0

150

Murray 57036MA

COVER, BELT

$37.99

$

Usually ships in 2-12 days

0

151

Murray 12342MA

SCREW, 10-24 x .50

$3.99

$

Usually ships in 2-12 days

0

152

Murray 312300MA

NUT, #10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

153

Murray 313686MA

SCREW, 1/4-20 x .50

$3.99

$

In Stock, only 2 left!

0

154

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

155

Murray 578107

NUT, 1/4-20

$

$

Not available

157

Murray 313685MA

SCREW, 1/4-14 x .75

$5.49

$

Usually ships in 2-12 days

0

159

Murray 578109MA

NUT, 1/4-10

$6.49

$

In Stock, Qty 8

0

170

Murray 584590

TOP COVER

$131.99

$

Usually ships in 2-12 days

0

171

Murray 901736

FLATWASHER

$3.99

$

Usually ships in 2-12 days

0

172

Murray 902973

RIVET

$

$

Not available

174

Murray 58046

SIDE COVER

$

$

Not available
