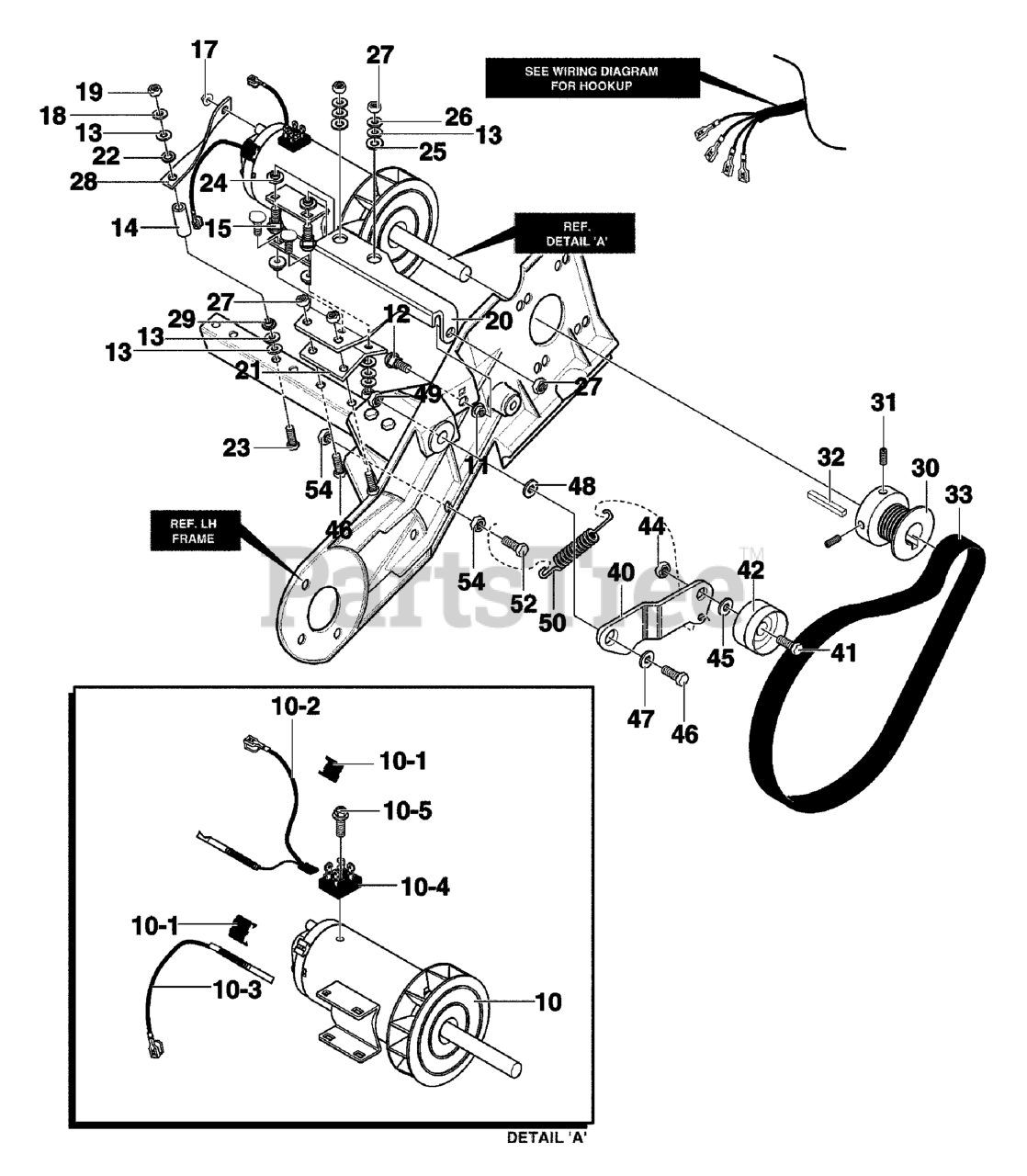

620000x30NA - Murray 20" Snow Thrower (2002) Motor Assembly Parts Diagram

20" Snow Thrower

Motor Assembly Parts Diagram

  • Title

10

Murray 760912MA

MOTOR, ELECTRIC

$

$

Not available

10-1

Murray 761142

BRUSH CAP

$

$

Currently unavailable

10-2

Murray 761143

BRUSH CUT-OUT ASSY.

$

$

Not available

10-3

Murray 761144

BRUSH ASSY.

$

$

Currently unavailable

10-4

Murray 761146

RECTIFIER

$

$

Currently unavailable

10-5

Murray 761145

SCREW, 10-24

$

$

Currently unavailable

11

Murray 710288

NUT RETAINER

$

$

Not available

12

Murray 340720MA

BOLT, 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

13

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

14

Murray 761203

TUBE, INSULATOR

$4.99

$

Usually ships in 2-12 days

0

15

Murray 3316MA

BOLT, 5/16-18 x 1.00

$3.49

$

Usually ships in 2-12 days

0

17

Murray 312300MA

NUT,#10-24
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

18

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

19

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

20

Murray 760932E701

BRACKET, UPPER MOTOR MT.

$63.99

$

Usually ships in 2-12 days

0

21

Murray 760931E701

BRACKET, LOWER MOTOR MT.

$19.99

$

Usually ships in 2-12 days

0

22

Murray 583372

FLATWASHER, NYLON

$

$

Not available

23

Murray 710263

SCREW, 1/4-20 x 1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

24

Murray 760934

INSULATOR, MOTOR

$23.99

$

Usually ships in 2-12 days

0

25

Murray 760933

INSULATOR WASHER

$3.49

$

Usually ships in 2-12 days

0

26

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

27

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

28

Murray 760984E701

BRACE, MOTOR

$16.99

$

Usually ships in 2-12 days

0

29

Murray 583371

SHOULDER WASHER, NYLON

$

$

Not available

30

Murray 760981

PULLEY, MOTOR

$

$

Not available

31

Murray 102570

SCREW, 1/4-20 x .38

$4.99

$

Usually ships in 2-12 days

0

32

Murray 71095

SQUARE KEY

$

$

Not available

33

Murray 760976MA

BELT

$21.99

$

Usually ships in 2-12 days

0

40

Murray 583395

IDLER BRACKET

$

$

Not available

41

Murray 710082

SCREW, 3/8-16 x 1.50

$7.99

$

Usually ships in 2-12 days

0

42

Murray 583391

IDLER PULLEY

$

$

Not available

44

Murray 590

NUT, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

45

Murray 71072

FLATWASHER

$

$

Not available

46

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

47

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

48

Murray 53794

SPACER, SLEEVE

$5.49

$

Usually ships in 2-12 days

0

49

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

50

Murray 760988MA

IDLER SPRING -AUGER DRIVE

$29.99

$

Usually ships in 2-12 days

0

52

Murray 308231

SCREW, 1/4-20 x 1.25

$

$

Not available

54

Murray 071034

NUT. 1/4-20

$

$

Not available

--

Murray F-021006C

MANUAL, Owner's

$

$

Currently unavailable
