620000x30NB - Murray 20" Snow Thrower (2003) Frame Assembly Parts Diagram

20" Snow Thrower

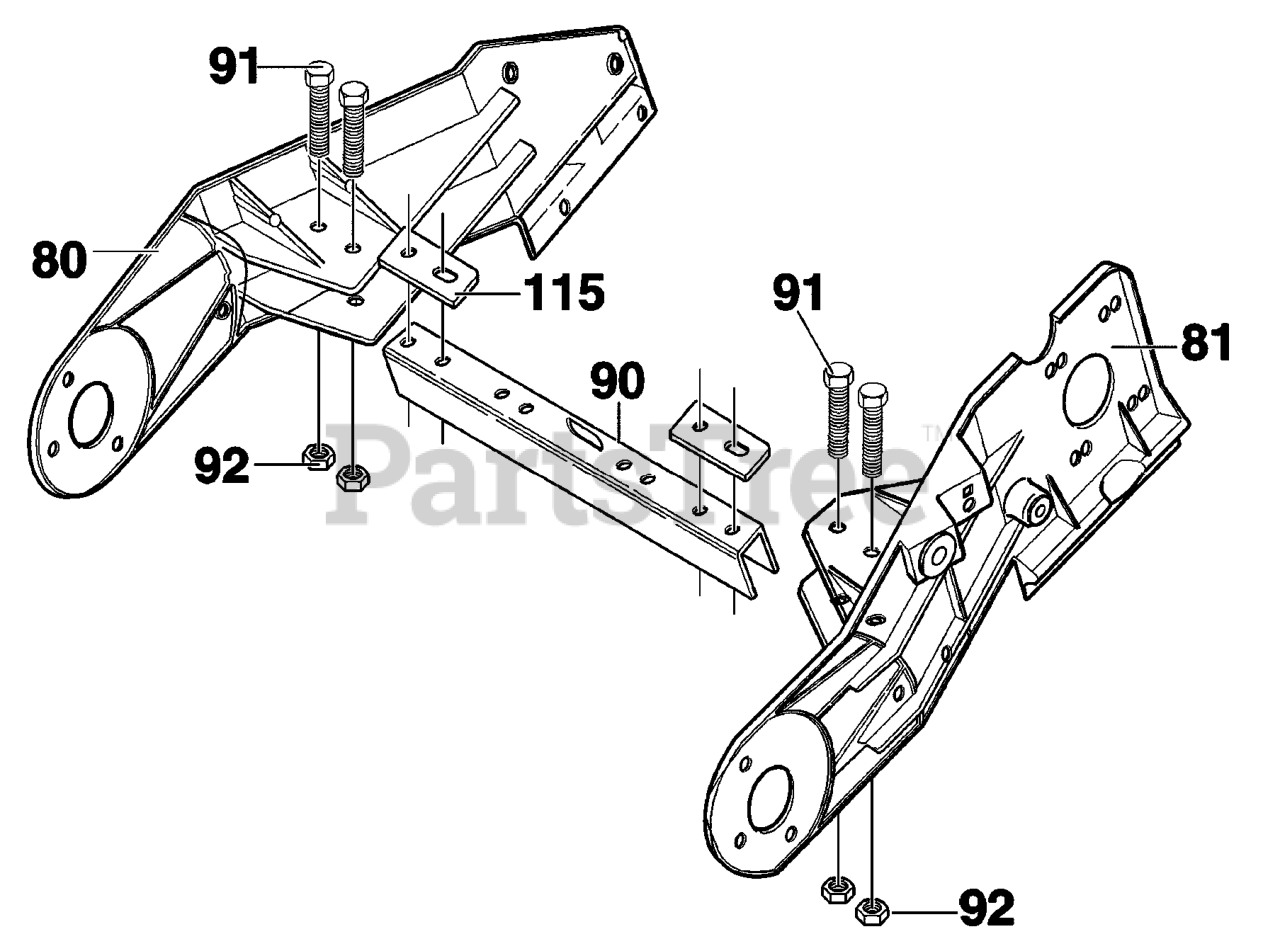

Frame Assembly Parts Diagram

  • Title

80

Murray 333769E701MA

FRAME, SIDE RH

$75.99

$

In Stock, only 1 left!

0

81

Murray 333767

FRAME, SIDE LH

$67.99

$

Usually ships in 2-12 days

0

90

Murray 760982

CHANNEL SUPPORT

$27.99

$

Usually ships in 2-12 days

0

91

Murray 180044

SCREW, 1/4-20 x 2.00
(Superseded to 180044MA)

$3.99

$

Usually ships in 2-12 days

0

92

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

115

Murray 334856

PLATE, BOLTING SUPPORT

$6.49

$

Usually ships in 2-12 days

0
