620000x31A - Scotts 20" Snow Thrower (2000) Handle Assembly Parts Diagram

20" Snow Thrower

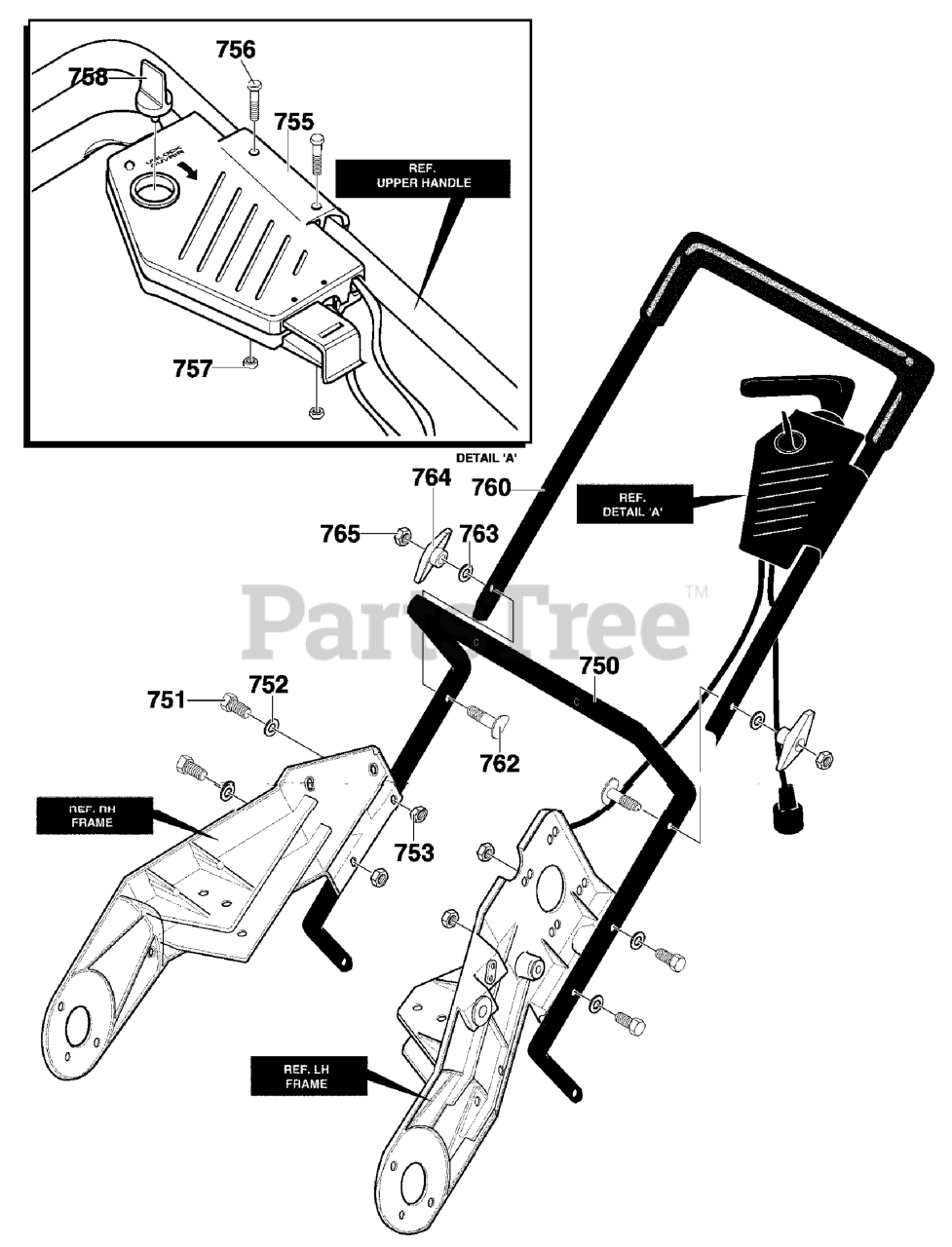

Handle Assembly Parts Diagram

  • Title

750

Murray 313487-853

HANDLE, LOWER

$

$

Currently unavailable

751

Murray 313674MA

SCREW, 1/4-20 x 1.25
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 7

0

752

Murray 071067MA

FLATWASHER

$82.99

$

In Stock, only 1 left!

0

753

Murray 782585

NUT, 1/4-20
(Superseded to 703251)

$5.49

$

In Stock, Qty 12

0

755

Murray 342757MA

ASSY, SWITCH BOX

$

$

Not available

756

Murray 581060

SCREW, 10-24

$3.49

$

Usually ships in 2-12 days

0

757

Murray 071055

NUT, #10-24

$3.99

$

Usually ships in 2-12 days

0

758

Murray 583356MA

KEY, SWITCH BOX

$5.99

$

In Stock, only 2 left!

0

760

Murray 761117MA

UPPER HANDLE ASSY.

$229.99

$

Usually ships in 2-12 days

0

762

Murray 337584MA

BOLT, 5/16-18 x 2.00

$5.49

$

Usually ships in 2-12 days

0

763

Murray 311936MA

WASHER, FORMED

$7.99

$

In Stock, only 2 left!

0

764

Murray 57171

T KNOB
(Superseded to 1501260MA)

$8.49

$

In Stock, only 3 left!

0

765

Murray 71037

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0
