62005 (T 500) - Toro Generator (SN: 005000001 - 005999999) (1985) GENERATOR ASSEMBLY Parts Diagram

Generator

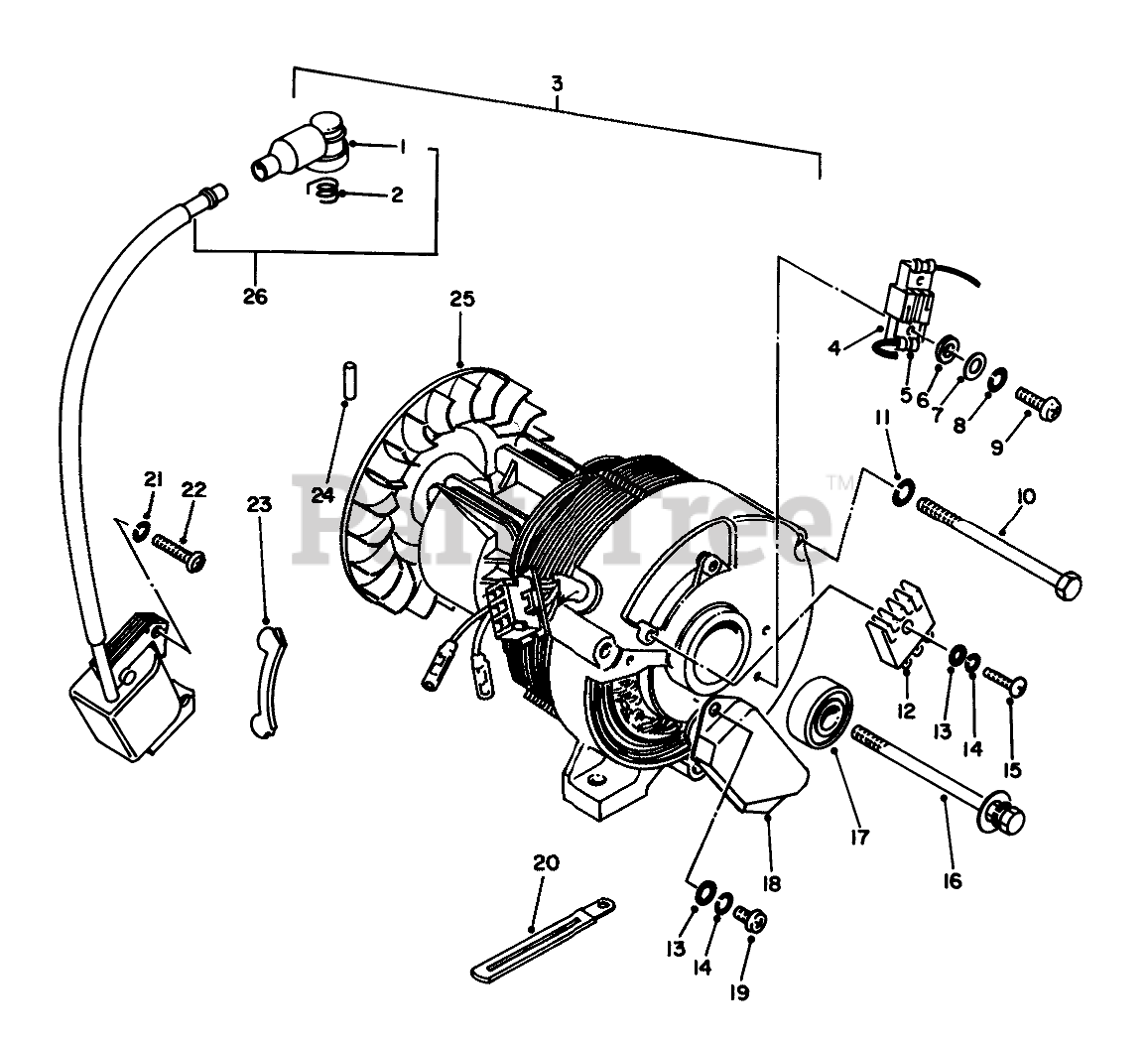

GENERATOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-3460

CAP ASM

$

$

Not available

2

Toro 55-3350

Spring

$

$

Not available

3

Toro 55-3500

Generator Assembly

Note: Used on units with serial no. 5000001 thru 5000376

$

$

Not available

3

Toro 55-3300

Generator Assembly

Note: Used on units with serial no. 5000377 & up

$

$

Not available

4

Toro 55-1910

Holder-Brush

$

$

Not available

5

Toro 55-1920

BRUSH

$

$

Not available

6

Toro 55-1930

Bushing

$

$

Not available

7

Toro 50-0600

Washer

$

$

Not available

8

Toro 81-1420

Lockwasher

$

$

Not available

9

Toro 50-0260

Screw
(Superseded to 81-4550)

$

$

Not available

10

Toro 50-0040

Bolt

$

$

Not available

11

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

12

Toro 55-3320

Diode

$

$

Not available

13

Toro 50-0610

WASHER

$

$

Not available

14

Toro 81-1380

Washer

$

$

Not available

15

Toro 55-3310

Screw
(Superseded to 55-3390)

$

$

Not available

16

Toro 50-4250

Bolt (L:125)

$

$

Not available

17

Toro 50-0480

Bearing

$

$

Not available

18

Toro 55-3330

A.V.R.

$

$

Not available

19

Toro 50-0310

Screw
(Superseded to 55-3390)

$

$

Not available

20

Toro 50-1090

Clamp

$

$

Not available

21

Toro 81-1380

Washer

$

$

Not available

22

Toro 50-0320

Screw

$

$

Not available

23

Toro 50-3390

Seal-Stator

$

$

Not available

24

Toro 50-0460

Pin

$

$

Not available

25

Toro 55-3340

Rotor

$

$

Not available

26

Toro 50-3340

STARTOR ASM

$

$

Not available
