62008 (T 800) - Toro Generator (SN: 005000001 - 005999999) (1985) FUEL TANK ASSEMBLY Parts Diagram

Generator

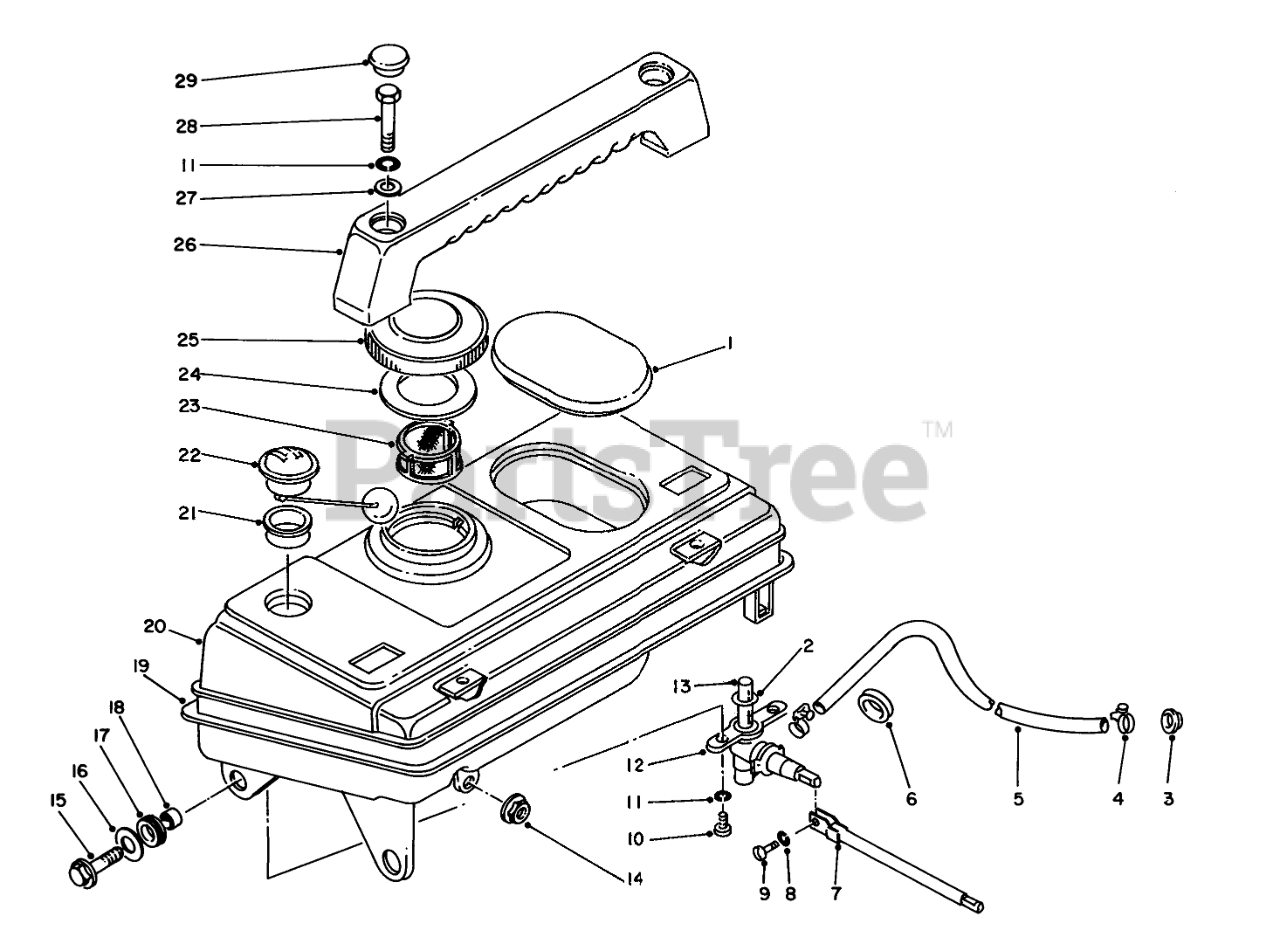

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 55-1680

CAP

$

$

Not available

2

Toro 55-1760

RING

$

$

Not available

3

Toro 55-1730

Grommet

$

$

Not available

4

Toro 55-1710

Clip

$

$

Not available

5

Toro 55-1700

Hose-Fuel

$

$

Not available

6

Toro 55-1720

Grommet

$

$

Not available

7

Toro 55-1770

ROD

$

$

Not available

8

Toro 50-0560

Lockwasher

$

$

Not available

9

Toro 50-0220

SCREW

$

$

Not available

10

Toro 53-0670

Screw

$

$

Not available

11

Toro 53-0680

Washer-Lock

$

$

Not available

12

Toro 55-1740

Cock Assembly-Fuel (Incl. Ref. #2 & 13)

$

$

Not available

13

Toro 55-1750

Net

$

$

Not available

14

Toro 50-7180

NUT

$6.99

$

In Stock, only 3 left!

0

15

Toro 53-0860

BOLT

$

$

Not available

16

Toro 50-0760

WASHER

$

$

Not available

17

Toro 50-0890

CUSHION

$

$

Not available

18

Toro 55-1690

Spacer

$

$

Not available

19

Toro 55-1670

Molding

$

$

Not available

20

Toro 55-1650

Tank Assembly

$

$

Not available

21

Toro 50-3850

Gasket

$

$

Not available

22

Toro 55-1660

Gauge Assembly-Fuel (Incl. Ref. #21)

$

$

Not available

23

Toro 55-0260

FILTER

$

$

Not available

24

Toro 53-1420

GASKET

$

$

Not available

25

Toro 50-3700

CAP

$

$

Not available

26

Toro 55-1780

Grip

$

$

Not available

27

Toro 55-1810

Washer

$

$

Not available

28

Toro 55-1800

Bolt

$

$

Not available

29

Toro 55-1790

Cap

$

$

Not available

Toro 55-1820

Tool Assembly

Note: Not illustrated

$

$

Not available
