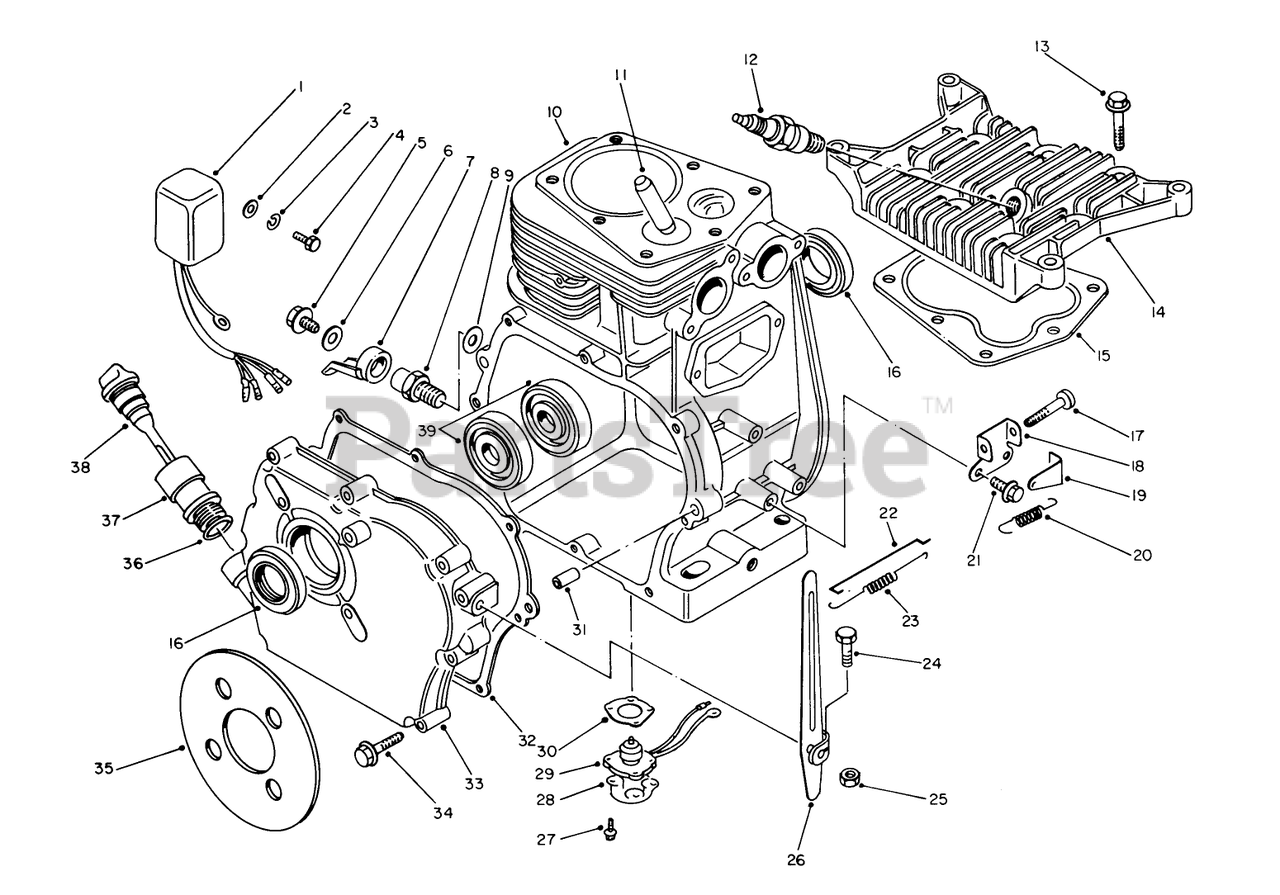

62018 (T 1800) - Toro Generator (SN: 003000001 - 003999999) (1983) Engine Assembly Parts Diagram

Generator

Engine Assembly Parts Diagram

  • Title

1

Toro 50-3550

DISCONTINUED

$

$

Not available

2

Toro 50-0620

DISCONTINUED

$

$

Not available

3

Toro 50-0570

See Supercession: 81-1450
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

4

Toro 50-0020

DISCONTINUED

$

$

Not available

5

Toro 50-0200

See Supercession: 81-4970
(Superseded to 81-4970)

$

$

Not available

6

Toro 50-0780

DISCONTINUED

$

$

Not available

7

Toro 50-1360

DISCONTINUED

$

$

Not available

8

Toro 50-1370

DISCONTINUED

$

$

Not available

9

Toro 50-0800

DISCONTINUED

$

$

Not available

10

Toro 50-1310

DISCONTINUED

$

$

Not available

11

Toro 50-1340

See Supercession: 50-6110
(Superseded to 50-6110)

$

$

Not available

12

Toro 50-1160

DISCONTINUED

$

$

Not available

13

Toro 50-0190

DISCONTINUED

$

$

Not available

14

Toro 50-1250

DISCONTINUED

$

$

Not available

15

Toro 50-1280

GASKET

$

$

Not available

16

Toro 50-0870

See Supercession: 81-3460
(Superseded to 81-3460)

$43.99

$

Usually ships in 3-6 days

0

17

Toro 50-0680

DISCONTINUED

$

$

Not available

18

Toro 50-3260

DISCONTINUED

$

$

Not available

19

Toro 50-3210

DISCONTINUED

$

$

Not available

20

Toro 50-1150

DISCONTINUED

$

$

Not available

21

Toro 50-0170

DISCONTINUED

$

$

Not available

22

Toro 50-3280

DISCONTINUED

$

$

Not available

23

Toro 50-1130

DISCONTINUED

$

$

Not available

24

Toro 50-0030

DISCONTINUED

$

$

Not available

25

Toro 46-0400

DISCONTINUED

$

$

Not available

26

Toro 50-3190

DISCONTINUED

$

$

Not available

27

Toro 81-1300

BOLT

$10.99

$

Usually ships in 3-6 days

0

28

Toro 50-3540

DISCONTINUED

$

$

Not available

29

Toro 50-3510

DISCONTINUED

$

$

Not available

30

Toro 50-3520

DISCONTINUED

$

$

Not available

31

Toro 50-0440

See Supercession: 81-0520
(Superseded to 81-0520)

$

$

Not available

32

Toro 50-1410

DISCONTINUED

$

$

Not available

33

Toro 50-1380

DISCONTINUED

$

$

Not available

34

Toro 81-0550

DISCONTINUED

$

$

Not available

35

Toro 50-3970

DISCONTINUED

$

$

Not available

36

Toro 50-0850

DISCONTINUED

$

$

Not available

37

Toro 50-1610

DISCONTINUED

$

$

Not available

38

Toro 50-1440

DISCONTINUED

$

$

Not available

39

Toro 50-0830

DISCONTINUED

$

$

Not available

Toro 50-1500

DISCONTINUED

Note: Not illustrated

$

$

Not available
