62018 (T 1800) - Toro Generator (SN: 003000001 - 003999999) (1983) REWIND STARTER & MAGNETO ASSEMBLY Parts Diagram

Generator

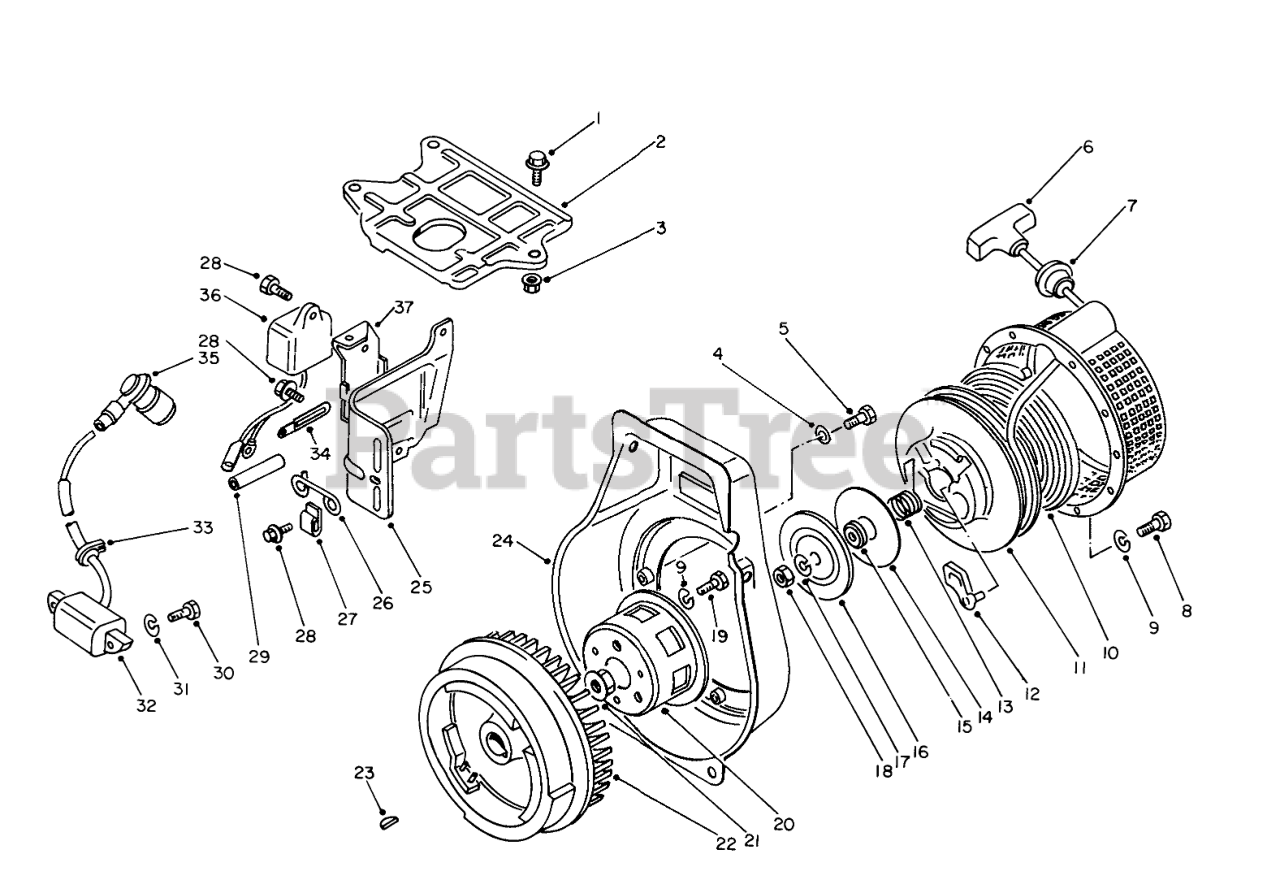

REWIND STARTER & MAGNETO ASSEMBLY Parts Diagram

  • Title

1

Toro 81-0530

Bolt

$

$

Not available

2

Toro 50-2800

Cowling-Upper

$

$

Not available

3

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

4

Toro 50-0620

Washer

$

$

Not available

5

Toro 50-0010

Bolt
(Superseded to 81-0390)

$2.99

$

Usually ships in 3-6 days

0

6

Grip

$

$

Not available

7

Toro 50-2990

Grip Assembly (Incl. Ref. #6)

$

$

Not available

8

Toro 50-0650

BOLT

$

$

Not available

9

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

10

Toro 50-2900

SPRING

$77.99

$

Usually ships in 3-6 days

0

11

Toro 50-2860

Reel

$

$

Not available

12

Toro 50-2880

Ratchet

$

$

Not available

13

Toro 50-2940

Spring
(Superseded to 98-9234)

$

$

Not available

14

Toro 50-2980

Plate-Slide
(Superseded to 98-9234)

$

$

Not available

15

Toro 50-2970

Cover
(Superseded to 98-9234)

$

$

Not available

16

Toro 50-2920

Plate

$

$

Not available

17

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

18

Toro 50-0750

NUT

$

$

Not available

19

Toro 50-0020

Bolt

$

$

Not available

20

Toro 50-3030

STARTER PULLEY

$

$

Not available

21

Toro 50-0540

Nut

$

$

Not available

22

Toro 50-3350

Rotor

$

$

Not available

23

Toro 50-0640

KEY

$

$

Not available

24

Toro 50-2730

Cover-Cooling Fan

$

$

Not available

25

Toro 50-2770

Cowling-Side

$

$

Not available

26

Toro 50-1020

Clamp

$

$

Not available

Toro 50-1030

CLAMP

Note: Not illustrated

$

$

Not available

27

Toro 50-1040

Clamp

$

$

Not available

28

Toro 50-0170

Bold

$

$

Not available

29

Toro 50-3440

CAP CONNECTOR

$

$

Not available

30

Toro 50-0690

Bolt

$

$

Not available

31

Toro 50-0580

Washer-Lock

$

$

Not available

32

Toro 50-3320

Stator

$

$

Not available

33

Toro 50-3370

Grom met

$

$

Not available

34

Toro 50-1000

Clamp

$

$

Not available

35

Toro 50-3450

SPARK PLUG CAP

$

$

Not available

36

Toro 50-3400

Unit-Transistor Magneto

$

$

Not available

37

Toro 50-3420

Bracket

$

$

Not available

Toro 50-2840

Starter Assembly Recoil (Incl. Ref. #6-7 & 10-18)

Note: Not illustrated

$

$

Not available
